Summary of Contents for Comica VS09 TC

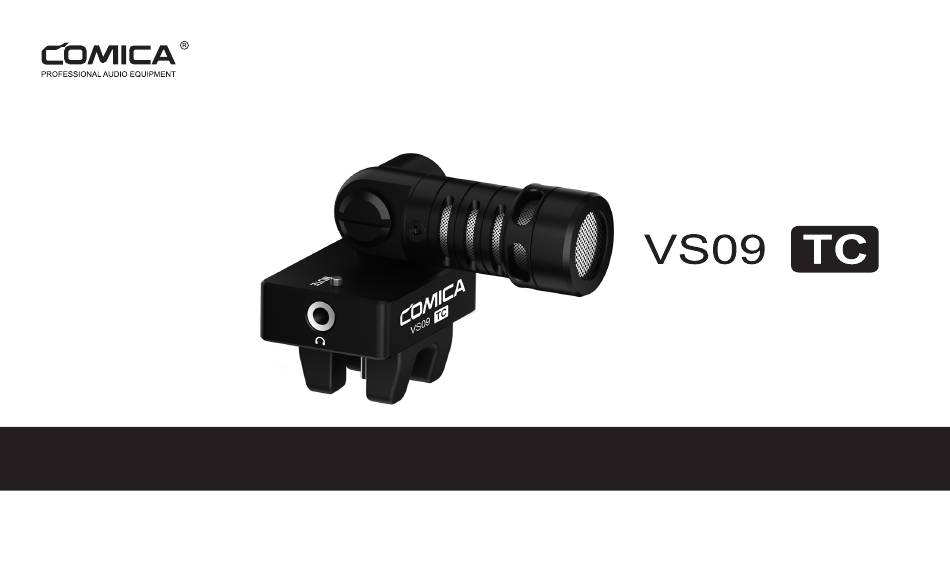

  • Page 1 TYPE-C SMARTPHONE MICROPHONE User Manual...
  • Page 2 Foreword Thanks for purchasing Comica CVM-VS09 TC Cardioid Smartphone Microphone for Phone with TYPE-C Interface. This product can be equipped with TYPE-C interface smartphone for audio recording. It is designed with functions of supporting audio monitoring, microphone muting mode, work indicator light, 180 degree rotation and etc, which can bring you better experience and sound quality e ect without any concern! Please carefully read this instruction manual before use.
  • Page 3: Main Features

    Main Features . Designed for Phone with TYPE-C Interface . 180 Degree Rotation . Cardioid Directional . LED Working Indicator . Super-shield and Low Noise Mic . Audio Monitoring 180 Degree Audio Monitor Super Working Indicator For Type-C Cardioid Rotation Anti-Interference Phone Directional...
  • Page 4 Components Microphone Mic Capsule 3.5mm Earphone Monitor Connector Work Indicator Light Rubber Smartphone Clamp Muting Button TYPE-C Interface...
  • Page 5: Installation And Use

    Installation and Use 1. Install the windscreen to microphone...
  • Page 6 2. Install the microphone onto the phone with TYPE-C interface, When the green light is always on or flickering, it indicates that it is working...
  • Page 7 3. Rotate the microphone to match di erent usage scenarios and angles Self-recording Mode Recording Mode Interview Mode...
  • Page 8 4. Put the earphone into the Monitor Connector, then you can real-time monitor or playback directly for audio monitor according to di erent phones Due to the diversity of Android systems, some smartphone do not support real-time monitoring but can playback for audio monitor...
  • Page 9 5. Muting Mode Note Switch Muting Mode by pressing Muting Button. When in normal recording mode, the indicator light turns green; When in muting mode, the indicator light turns red. When replaying recorded audio or video with phone, muting mode should be turned on to avoid the influence of microphone real-time sound Microphone Muting Button Work Indicator Light...
  • Page 10: Polar Pattern

    Specification Polar Pattern Frequency Response -2.0 -10.0 -20.0 1000 10000 125 Hz: 250 Hz: 500 Hz: 1000 Hz: 2000 Hz: 4000 Hz: 8000 Hz:...
  • Page 11: Product Features

    Product Features Polar Pattern Cardioid Frequency Response 60Hz~20kHz >70dB Signal/Noise Max SPL >100dB Output Connection TYPE-C USB2.0 Monitor Connection 3.5mm Sample Rates 48kHz/44.1kHz Bit Depth 16-bit OS Requirements Android 5.0 and higher Dimension 38x71x53mm Net Weight Working Temperature 0℃~50℃...
  • Page 12 Email: support@comica-audio.com...
