2.4G Digital Wireless Microphone

User Manual

Table of Contents

Need help?

Do you have a question about the BOOMX-D Mi and is the answer not in the manual?

Questions and answers

Summary of Contents for Comica BOOMX-D Mi

Page 1 2.4G Digital Wireless Microphone User Manual...
Page 3: Fcc Statement
FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
Page 4 This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the 　　...
Page 5: Main Features
Foreword Thanks for purchasing COMICA BoomX-D MI Main Features · 2.4G Dual-channel Wireless Microphone, · Real-time Monitor, Mono/Stereo Mode Switch Global Free Frequency · Internal and External MIC Two Input Modes · 48kHz/16bit Record, CD-level Sound Quality · Low Latency<20ms, Working Range up to ·...
Page 6 Notice Due to 2.4G wireless characteristics, please keep face to face when use it, and don't turn your back to thereceiver, otherwise it is easy to generate breakpoints, which is a normal phenomenon Don't block the antenna position to avoid any poor signal generated Please attention that it can not realize STEREO function when in single-channel mode When using the playback recording function with devices of iOS system, it can not achieve it due to the protectionof the iOS system if the volume of the device is adiusted to the maximum before monitoring, you need...
Page 7 Please keep face to face when use it, and don’t turn your back to the receiver, otherwise it is easy to generate breakpoints. Face to receiver (correct) Back to receiver (incorrect) Don't block the antenna position to avoid any poor signal generated. Antenna position Antenna position Transmitter(TX)
Page 8: Packing List

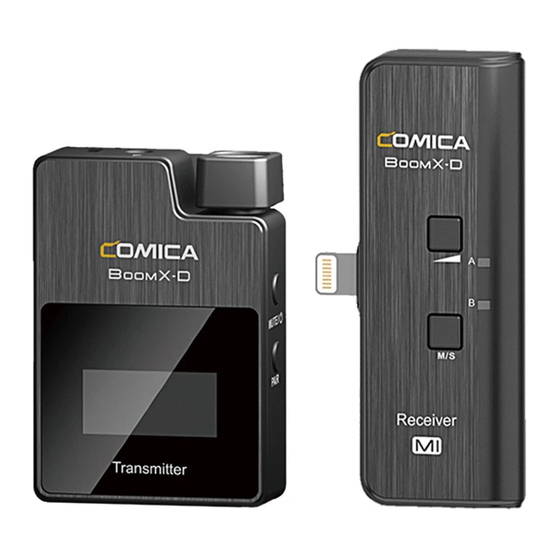

Packing List Main Parts: Transmitter(TX) MI Receiver (MI RX) Multiple Selections: MI1 =TX + MI RX MI2 = TX + TX + MI RX...
Page 9 Accessorie: ① 3.5mm Mic Audio lnput Cable ② Wind Mu ③ Charging Cable ④ 3 in 1 Charging/Output Cable (The orange cable can be used for charging and data transmitting; the black cables can only be used for charging. ) ⑤...
Page 10: Transmitter (Tx)
Components and Instruction Transmitter (TX) 1. External Mic Locking Buckle 2. 3.5mm TRS Port of External Mic 3. Internal Mic 4. Power/Muting/Reset Button 5. Pair/Denoise Button 6. Belt Clip 7. USB-C Charging Port...
Page 11 MI Receiver (MI RX) 1. Lightning Connector 2. Output Volume Adjustment Button 3. Group A Working Status Indicator 4. Group B Working Status Indicator 5. M/S Adjustment Button 6. 3.5mm TRS/TRRS Monitoring Port...
Page 12 Screen Display and Function Transmitter (TX) 1.Screen Display Instruction: Unpaired Denoise O Muting in the Pairing Denoise On Microphone Normal Working Paired Transmitter Signal Strength Battery Status A/B Channel is Connected A/B Channel is not Connected A / B Channel Microphone Audio Dynamic Bar...
Page 13: Function Introduction
2.Function Introduction: 2.1. Power/Muting/Reset Button Long press for On/O ; When the device is crash or unable to be turned on, long press for ten seconds to reset; Short press for muting switch. 2.2. Pair/Denoise Button Long press for pairing with receiver; Short press to denoise. 2.3.
Page 14 2.4. 3.5mm TRS Microphone Port Insert the 3.5mm TRS microphone input cable, and you can use the external lavalier microphone for recording. At this time, the internal microphone of this device is turned o . All the function adjustments are only available when the screen is on, and if the screen is dimmed, press any button to light up the screen and then adjust again.
Page 15 MI Receiver(MI RX) Function Introduction: 1.Lightning Connector Insert into the Lightning interface of phone to use. 2. Output Volume Adjustment Button Short press to cyclically adjust the Volume, and A/B channel is synchronized. 3. M/S Button Short press for Mono/Stereo switch. Please attention that it can not realize STEREO function when in single-channel mode.
Page 16 4. A / B Working Status Indicator The indicator blinks green when unpaired; When paired, it shows blue in mono mode and green in stereo mode. 5. 3.5mm TRS/TRRS Monitoring Port Insert headphone to monitor. BoomX-D MI do not support Safety mode.
Page 17: Installation And Usage
Installation and Usage Transmitter(TX) 1. Use the internal/exteral mic according to your need. Internal Mic External Mic 1. For better concealment during use, it is recommended that the belt clip is ﬁxed and used outwards. 2. When using an external microphone, the internal microphone is automatically turned o .
Page 18 MI Receiver (MI RX) Insert the Ml receiver (MI RX) into the Lightning interface of the phone; Insert the headphone into the 3.5mmTRS/TRRS monitoring port for monitoring.
Page 19: Pairing Method
Pairing Method (All have been paired at the factory. If you need to re-pair, please follow the description) Connect the receiver with your device to pair, and the indicators blink blue. Long press the pairing button of the transmitter to pair, and the pairing status on screen shows When paired, the screen shows , and the indicators on RX show blue(Mono mode)/ green(Stereo mode).
Page 20: Specification
Speciﬁcation Transmitter (TX) Wireless Type 2.4GHz Antenna Ceramic Antenna Transmitting Power +10dBm -32dB±2dB Microphone Sensitivity Omnidirectional Polar Pattern Frequency Response 80Hz~20kHz 70dB SPL(A-weighted,as per IEC651) Equivalent Noise 24dB SPL(A-weighted,as per IEC651) Maximum SPL 110dB SPL(@ 1% THD) Dynamic Range 86dB SPL(A-weighted,as per IEC651) Sound Delay <20ms External Mic Input Port...
Page 21 MI Receiver (MI RX) Wireless Type 2.4GHz Antenna Ceramic Antenna Transmitting Power +10dBm Audio Output Level 1~4 Level(6dB increments per level) 70dB SPL(A-weighted,as per IEC651) Equivalent Noise 24dB SPL(A-weighted,as per IEC651) Dynamic Range 86dB SPL(A-weighted,as per IEC651) Sound Delay <20ms Digital Output Plug Lightning Monitor Port...
Page 23 2.4G数字无线双通道麦克风用户使用手册...
Page 25 前言感谢您购买COMICA/科唛BoomX-D MI 产品主要功能 . 2.4G双通道无线麦克风，全球通用频段 . 支持实时监听，单声道/立体声多模式切换 . 48kHz/16bit录音，超CD级音质 . 内置和外置MIC两种输入方式 . 数字/模拟双模式输出，广泛兼容相机， . 低音频延迟<20ms，传输距离稳定高达200米（空旷环境）手机，电脑 . 支持增益可调，一键静音及降噪 . 多功能背夹设计，小巧精悍 . 可视化电量，音频动态监控等屏显功能...
Page 26 注意事项由于2.4G无线特性，使用时尽量保持面对面，避免背对的情况，否则容易产生断点，属正常现象使用时避免任何物体遮挡天线位置，以免信号不良单通道模式下，立体声(STEREO) 功能不可实现搭配iOS系统设备使用回放监听功能时，如耳机音量在监听前被调至最大，由于iOS系统的保护机制，会导致监听无输出，此时重新调整耳机音量大小即可。 (建议耳机音量不要调至最大) 本产品属于高精密仪器类产品，请避免使用时掉落、碰撞或重击请勿将本设备放置在热源或干扰源附近使用，如散热器、烤箱或其它无线设备旁边如拾音距离较近或于户外使用时，请套上麦克风防风毛，防止声音爆裂或降低风噪不要在雨中或潮湿的环境中使用该设备，否则会有短路的危险请在干燥环境中对该产品进行保存...
Page 27 尽量保持面对面，避免背对的情况，否则容易产生断点面对面（正确）背对（错误）使用时避免任何物体遮挡天线位置，以免信号不良天线位置天线位置 MI接收器（MI RX）发射器（TX）...
Page 28 包装清单主体： MI接收器（MI RX）发射器（TX）搭配选择： MI1 = TX + MI RX MI2 = TX + TX + MI RX...
Page 29 配件: ① 3.5mm 麦克风输入线 ② 防风毛 ③ 充电线 ④ 三合一充电/输出线(其中橙色线具备充电和数据传输功能，另外两条黑色线只具备充电功能) ⑤ 说明书 ① ② ⑥ 保修卡 ③ ④ ⑤ ⑥ 每一个型号的配件包括： ① + ② + ③ + ⑤ + ⑥ MI1= MI2= ①x2 + ②x2 + ④ + ⑤ + ⑥...
Page 30 部件介绍及说明发射器（TX） 1. 外置麦克风插头卡扣 2. 3.5mm TRS外置麦克风插孔 3. 内置麦克风 4. 电源/静音/复位按键 5. 配对/降噪按键 6. 背夹 7. USB-C充电插口...
Page 31 MI接收器(MI RX) 1.Lightning接头 2.输出音量调节按钮 3.A通道工作状态指示灯 4.B通道工作状态指示灯 5.单声道和立体声切换按钮 6.3.5mm TRS/TRRS耳机监听插孔...
Page 32 屏显与功能介绍发射器（TX） 1.屏幕显示: 未配对降噪关闭静音配对中降噪开启麦克风正常工作已配对信号强度发射器电池电量 A/B通道已连接 A/B通道未连接 A/B通道麦克风音频动态条...
Page 33 2.功能介绍: 2.1. 电源/静音/复位按键长按开机/关机；如遇死机或无法开机等异常现象，长按十秒复位；短按进行静音切换 2.2. 配对/降噪按键长按与接收器进行配对，短按降噪 2.3. USB-C充电插口通过USB A-USB C充电线连接发射器与电源进行充电...
Page 34 2.4. 3.5mm TRS麦克风插孔插入3.5mm TRS麦克风输入线，即可使用外置领夹麦克风进行录音，此时本机的内置麦克风被关闭功能按键在屏幕亮显时才可用，若屏幕暗显，请先按任意按键点亮屏幕后再进行相关操作...
Page 35 MI接收器（MI RX）功能介绍: 1. Lightning插头插入手机Lightning插口即可使用 2. 输出音量调节按钮短按可循环调节输出音量，A/B通道同步调节 3. 单声道和立体声切换按钮短按可单声道和立体声切换。单通道模式下，立体声（STEREO）功能不可实现...
Page 36 4. A/B通道状态指示灯未配对时绿灯闪烁，配对成功后单声道蓝灯长亮，立体声绿灯长亮 5. 3.5mm TRS/TRRS耳机监听插孔插入3.5mm TRS/TRRS耳机即可监听 MI版本不支持安全音轨模式...
Page 37 安装与使用方法发射器（TX） 1.根据个人需求选择使用内置/外置麦克风内置麦克风外置麦克风 1.在使用内置麦克风时，为了更好的隐蔽性，建议将背夹朝外固定使用 2.当使用外置麦克风时，内置麦克风会自动关闭...
Page 38 MI接收器 (MI RX) 把MI接收器(MI RX)插入手机的Lightning接口;把耳机插入3.5mm TRS/TRRS耳机监听插孔进行监听...
Page 39 配对方法（出厂时均已配对，如需重新配对时可按如下描述操作）将接收器连接至设备，接收器蓝灯闪烁，自动进入配对状态，长按发射器配对按键进入配对状态，发射器屏幕显示，配对成功后发射器屏幕显示，接收器指示灯长亮一个发射器（TX）与MI接收器（MI RX）配对 MI接收器（MI RX）发射器（TX） 1.发射器/接收器未配对时才能进入配对状态 2.当有发射器未配对时，需将已配对的发射器先行关机，参考上述步骤将未配对的发射器与接收器配对，配对完成后再开启已配对的发射器使用...
Page 40 技术规格发射器（TX） 2.4GHz 无线类型天线陶瓷天线 +10dBm 发射功率 -32dB±2dB 麦克风灵敏度麦克风指向性全指向 80Hz ~ 20kHz 麦克风频率响应 70dB SPL(A-weighted,as per IEC651) 系统信噪比 24dB SPL(A-weighted,as per IEC651) 系统等效噪声 110dB SPL(@ 1% THD) 最大声压级 86dB SPL(A-weighted,as per IEC651) 动态范围 <20ms 声音延迟 3.5mm TRS 外置输入接口...
Page 41 MI接收器（MI RX） 2.4GHz 无线类型天线陶瓷天线 +10dBm 发射功率 1 ~ 4挡，挡位步进6dB 音频输出挡位 70dB SPL(A-weighted,as per IEC651) 系统信噪比 24dB SPL(A-weighted,as per IEC651) 系统等效噪声 86dB SPL(A-weighted,as per IEC651) 系统动态范围 <20ms 声音延迟 Lightning 数字接口 3.5mm TRS/TRRS 监听接口净重 33 x 13 x 70mm 尺寸...
Page 44 扫二维码关注科唛官方公众号 COMICA科唛 COMICA科唛 COMICA科唛 COMICA科唛邮箱: support@comica-audio.com 电话: 400-8303-981 网址: comica-audio.com 版权及科啧商标归咔莱科技有限公司所有...
