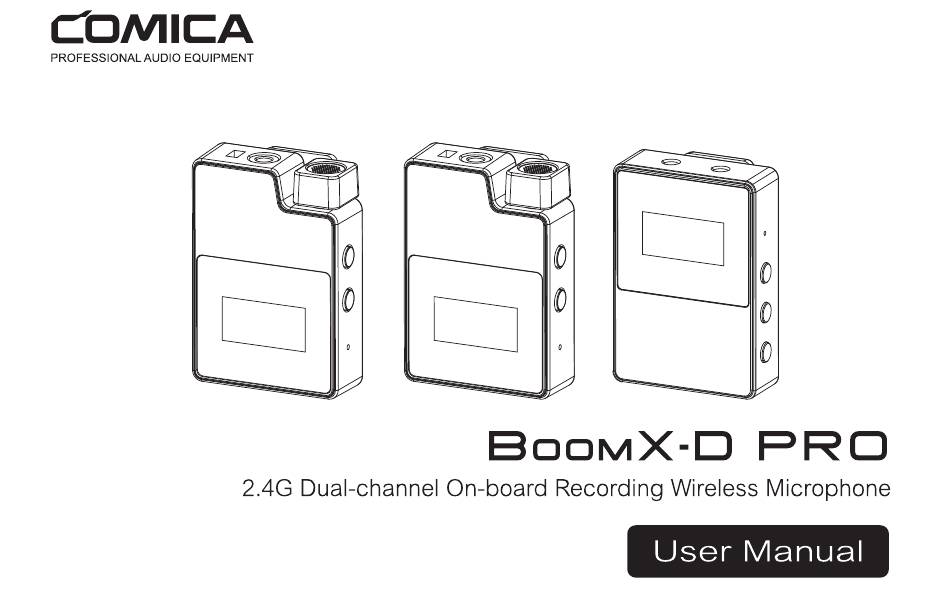

Comica BOOMX-D PRO User Manual

2.4g dual-channel on-board recording wireless microphone
Hide thumbs Also See for BOOMX-D PRO:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the BOOMX-D PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Comica BOOMX-D PRO

Summary of Contents for Comica BOOMX-D PRO

  • Page 5 . 2.4G Digital Dual-channel Wireless Microphone, Global Free Frequency . 48kHz/16bits Audio Recording, One-click Intelligent Denoise . Support On-board Recording with 16G Internal Memory(About 48 Hours) . Support Recording File's High-speed Transmission and Copy . Support Digital&Analog Output Mode, Universal for Camera/Phone/PC .
  • Page 10 Denoise/Pair Button...
  • Page 11 B Channel Output Gain Control/Pair Button A Channel Output Gain Control/Pair Button...
  • Page 12 Denoising Denoise O...
  • Page 13 Muting/Power Button Short press for muting; Long press for On/O Denoise/Pair Button Short press for denoising switch; Long press for pairing with receiver...
  • Page 14 1. All the function adiustments are only available when the screen is on, and if the screen is dimmed, press any button to light up the screen and then adjust again; 2. If there are abnormal phenomena such as crash or failure to turn on, please press and hold the power button for 10 seconds to reset...
  • Page 15 +6dB +6dB...
  • Page 16 A/B Channel Output Volume Adjustment/Pair Button Short press to cyclically adjust the A/B channel output volume. When it is not paired, long press the two buttons at the same time to pair...
  • Page 17 1. All the function adiustments are only available when the screen is on, and if the screen is dimmed, press any button to light up the screen and then adjust again; 2. If there are abnormal phenomena such as crash or failure to turn on, please press and hold the power button for 10 seconds to reset...
  • Page 18 Turn on the transmitters and receiver within one meter; Long press the pair buttons of the transmitters and receiver to pair when the screen is on. The icon changes from after pairing successfully, the first paired transmitter as channel A (left channel), and the second paired transmitter as channel B(right channel)
  • Page 20 BOOMX-D_PRO 16GB free of 16GB...
  • Page 24 Wireless Type 2.4GHz Antenna Ceramic Antenna Transmitting Power +10dBm Receiving Sensitivity -32dB±2dB Polar Pattern Omnidirectional Frequency Response 80Hz ~ 20kHz 70dB SPL(A-weighted,as per IEC651) Equivalent Noise 24dB SPL(A-weighted,as per IEC651) 110dB SPL(@ 1% THD) Dynamic Range 86dB SPL(A-weighted,as per IEC651) Sound Delay <20ms External Mic Input Port...
  • Page 25 Wireless Type 2.4GHz Antenna Ceramic Antenna Transmitting Power +10dBm 70dB SPL(A-weighted,as per IEC651) Equivalent Noise 24dB SPL(A-weighted,as per IEC651) Dynamic Range 86dB SPL(A-weighted,as per IEC651) Sound Delay <20ms Volume Adjustment -6dB ~ +6dB Analog Output 3.5mm TRS Digital Output USB-C / 48kHz 16bits Monitoring Port 3.5mm TRS/TRRS Battery...
  • Page 29 . 2.4G数字双通道无线麦克风，全球通用频段 . 支持单声道/立体声输出，实时监听，静音及音量调节 . 48kHz/16bits录音，一键智能降噪 . 内置和外置MIC两种输入方式 . 支持16G内存板载录音及高速传输拷贝（约48小时） . 自动调频，传输稳定 . 低音频延迟< 20ms，传输距离稳定高达100m . 数字&模拟双模式输出，通用于相机，手机，电脑 . 安全音轨模式，便于后期剪辑 . 多功能背夹，小巧精悍 . 可视化电量，音频动态监控等屏显功能...
  • Page 34 降噪/配对按钮...
  • Page 35 B通道输出音量调节/配对按钮 A通道输出音量调节/配对按钮...
  • Page 36 开启降噪 关闭降噪...
  • Page 37 静音/电源按钮 短按进行静音切换，长按开机/关机 降噪/配对按钮 短按进行降噪切换，长按与接收器进行配对...
  • Page 38 1.所有功能调节需在屏幕亮显时才可用，如果屏幕暗显，请先按任何按键使屏幕亮显再操作； 2.如出现死机或无法开机等异常现象，请长按开机键10秒进行复位...
  • Page 39 +6dB +6dB...
  • Page 40 A/B通道输出音量调节/配对按键 短按可循环调节A/B通道输出音量；未配对时，同时长按A/B按键进入配对状态...
  • Page 41 1.所有功能调节需在屏幕亮显时才可用，如果屏幕暗显，请先按任何按键使屏幕亮显再操作； 2.如出现死机或无法开机等异常现象，请长按开机键10秒进行复位...
  • Page 42 将发射器和接收器放置在一米范围内，长按电源键开机，在屏幕亮屏的情况下，再分别长按配对按键进入配对状态。 配对成功后屏幕图标由 变成 ，先配对成功的发射器为A通道(左声道)，后配对成功的发射器为B通道(右声 道)
  • Page 44 BOOMX-D_PRO 16GB可用，共16GB...
  • Page 48 2.4GHz 无线类型 天线 陶瓷天线 发射功率 +10dBm -32dB±2dB 麦克风灵敏度 麦克风指向性 全指向 80Hz ~ 20kHz 麦克风频率响应 70dB SPL(A-weighted,as per IEC651) 系统信噪比 24dB SPL(A-weighted,as per IEC651) 系统等效噪声 最大声压级 110dB SPL(@ 1% THD) 86dB SPL(A-weighted,as per IEC651) 动态范围 <20ms 声音延迟 3.5mm TRS 外置输入接口 锂聚合物 330mAh 3.7V 电池...
  • Page 49 2.4GHz 无线类型 天线 陶瓷天线 发射功率 +10dBm 70dB SPL(A-weighted,as per IEC651) 系统信噪比 24dB SPL(A-weighted,as per IEC651) 系统等效噪声 86dB SPL(A-weighted,as per IEC651) 动态范围 <20ms 声音延迟 -6dB ~ +6dB 输出调节范围 模拟输出 3.5mm TRS USB-C / 48kHz 16bits 数字输出 3.5mm TRS/TRRS 监听接口 锂聚合物 330mAh 3.7V 电池...
