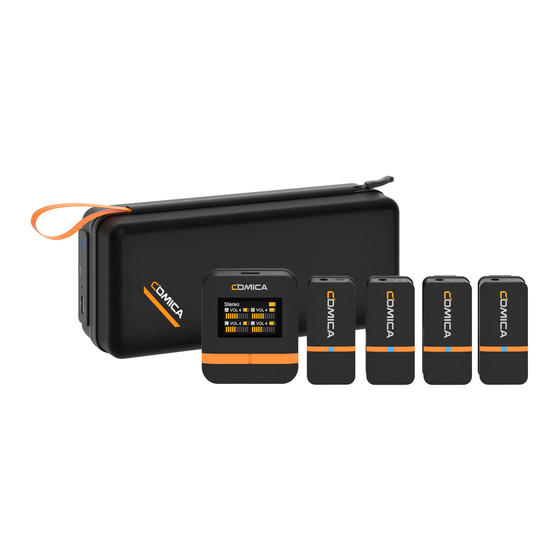

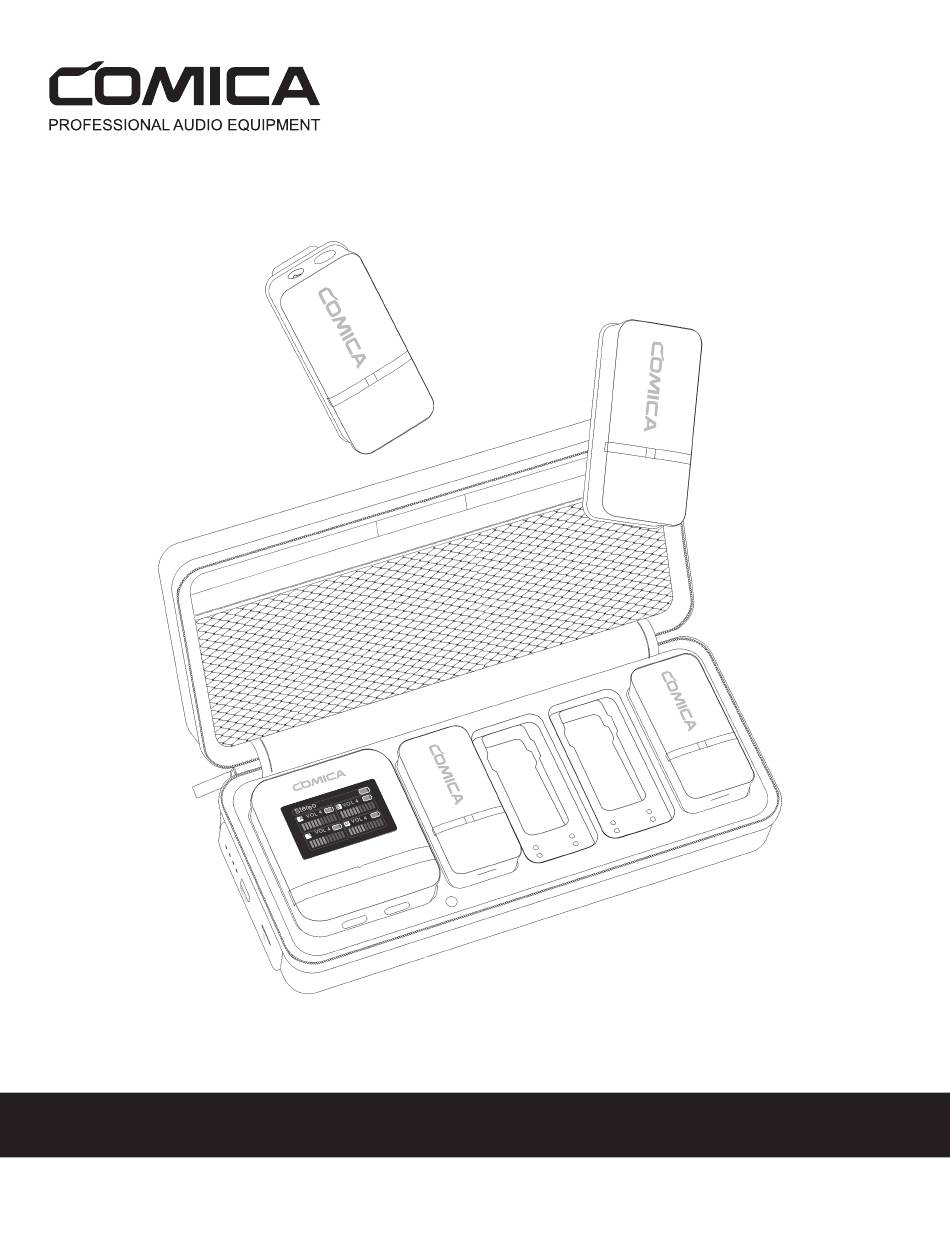

- Page 1 Vimo Q Four-channel Mini Wireless Microphone User Manual...
-
Page 3: Main Features
Foreword Thank you for purchasing Comica Vimo Q Wireless Microphone Main Features · Four-channel Wireless Microphone, Mini and Portable · 48kHz/24bit Record, CD-level Sound Quality · Brand-new CalMix Audio Processing, One-key Denoise · Support 4 Audio Tracks Mixing and Individual Output ·... -
Page 4: Packing List
Packing List Stereo VOL 4 VOL 4 VOL 4 VOL 4 ① ② ③ Vimo Q User Manual ④ ⑤ ⑥ ⑦ ⑧ ⑨ 1. Transmitter*4 7. Wind Muff*4 2. Receiver 8. User Manual 3. Charging Case 9. Warranty Card 4. - Page 5 Components and Instruction Transmitter（TX） 3.5mm TRS External Internal Mic Mic Interface Power/ Mute Button Denoise/Volume Up Button Working Indicator Pair/Volume Light Down Button Belt Clip Charging Pad USB-C Charging Port...
- Page 6 1. 3.5mm TRS External Mic Interface 2. Internal Mic 3. Power/ Mute Button Long press for On/Off; short press for muting switch 4. Denoise/Volume Up Button Long press to turn on/off denoise; shot press to increase the volume 5. Pair/Volume Down Button Long press to enter pairing state;...
-
Page 7: Receiver（Rx
Receiver（RX） USB-C Charging/ Audio Output Interface S t e r e V O L 3.5mm TRS Audio V O L V O L Output Interface V O L 3.5mm TRS/TRRS Monitoring/ Audio Output Interface Reset Hole Power/Mode Pair/Screen Flip Switch Button Button Belt Clip Charging Pad... - Page 8 1. 3.5mm TRS Audio Output Interface In mono mode, output a mixing audio of A/B/C/D four channels; In stereo mode, output two individual audios. A/C channel is the left channel, B/D channel is the right channel; In quad mode, output two individual audios of A/B channels 2.
-
Page 9: Screen Display
Screen Display： Mono Mode Pair... Stereo Mode Quad Mode MUTE Receiver' Battery Power Stereo Transmitter' Battery Power VOL 4 VOL 4 A Channel B Channel VOL 4 VOL 4 C Channel D Channel Audio Dynamic Bar... -
Page 10: Charging Case
Charging Case： Power Indicator Light Pair/Awake Button Reset Hole USB-C Charging Port 1. Power Indicator Light There are four lights, each representing 25% of the power 2. Pair/Awake Button Long press to pair the microphone; short press to awake the microphone 3. - Page 11 Installation and Usage Pairing Method( All have been paired by default. If you need to re-pair, please follow the instructions Place the transmitters and receiver within one meter and long press their power buttons to switch on, then long press their pair buttons to enter the pairing state.
- Page 12 Installation Transmitter（TX）: To choose internal mic or external mic according to personal needs Internal Mic External Mic 1. When using the internal mic, it is recommended to fix the belt clip outwards for better concealment 2. When using an external mic, the internal mic will automatically turn off...
- Page 13 Receiver（RX）： Mono/Stereo Mode 1. 3.5mm Analog Output When used with a camera, connect it through the 3.5mm TRS-TRS audio cable; When used with a mobile phone or computer, connect it through the 3.5mm TRS-TRRS audio cable and related OTG audio cable/adapter; to monitor according to personal needs (please purchase the relevant audio cable/adapter by yourself) In stereo mode, A/C channel is the left channel, B/D channel is...
- Page 14 2. USB Digital Output Connect the receiver and mobile phone/computer through the 2-in-1 charging/ audio output cable and related OTG audio cables/adapters; to monitor according to personal needs (please purchase the relevant audio cable/adapter by yourself) Adapter...
- Page 15 Quad Mode Connect the receiver and recorder/mixer through a 3.5mm TRS-TRS/ 3.5mm TRS-XLR dual heads audio cable to output four individual analog audios of A/B/C/D channels(Please purchase relevant audio cables by yourself) Quad mode is not supported when outputting audio through USB interface...
-
Page 16: Specification
Specification Antenna Ceramic Antenna Transmitting Power 10dBm Receiving Sensitivity -97dBm Microphone Sensitivity -32dB±2dB Polar Pattern Omnidirectional Frequency Response 80Hz ~ 20kHz 70dB SPL(A-weighted,as per IEC651) Equivalent Noise 24dB SPL(A-weighted,as per IEC651) Maximum SPL 110dB SPL(@ 1% THD) Dynamic Range 86dB SPL(A-weighted,as per IEC651) Sound Delay <20ms USB Specification...
