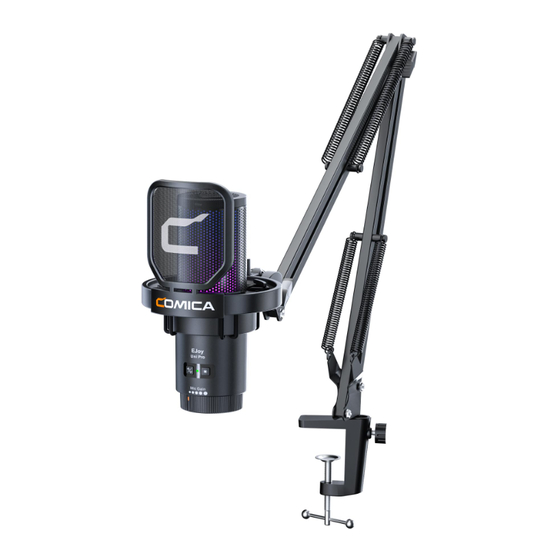

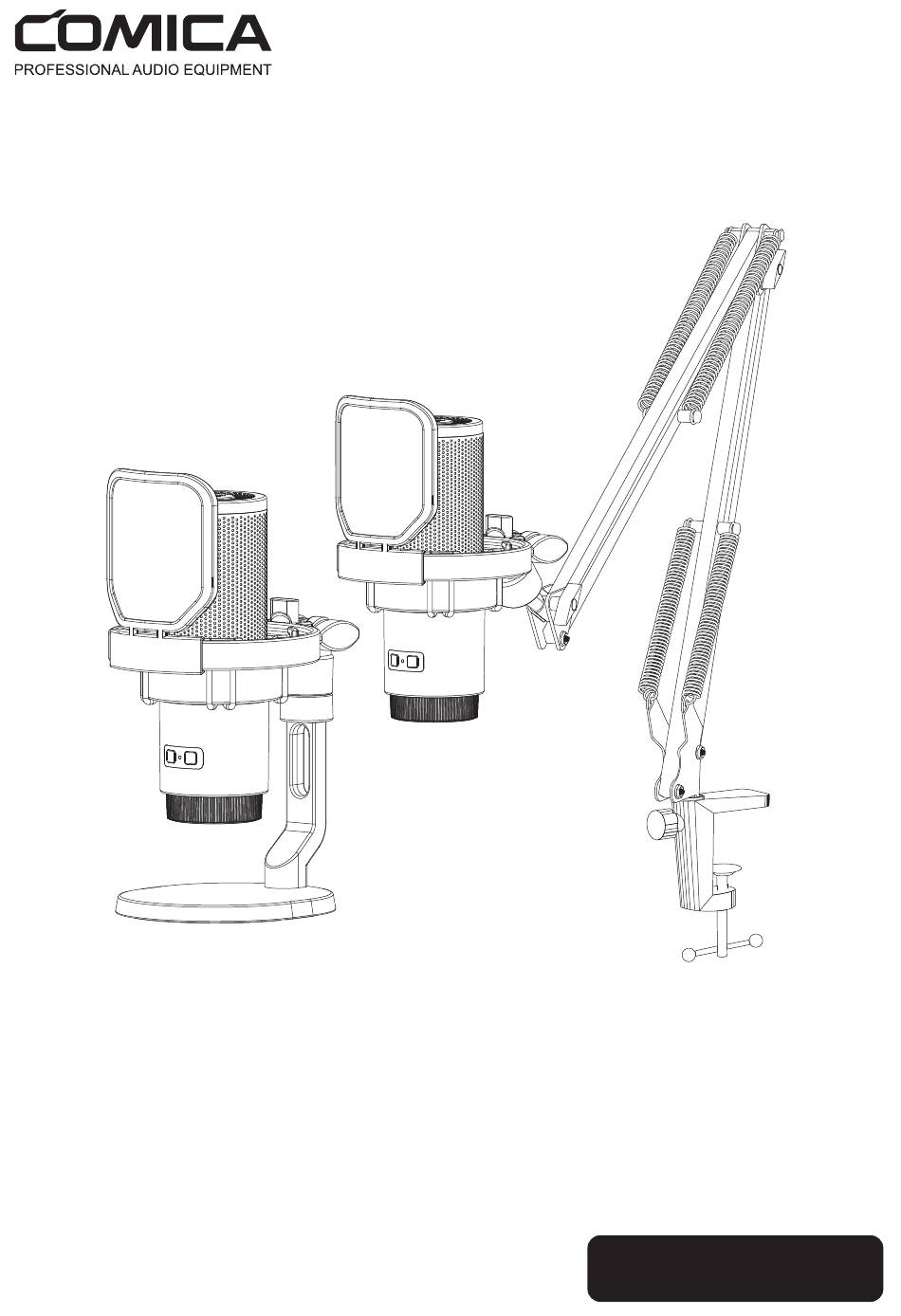

- Page 1 EJoy Uni Pro RGB Cardioid Condenser Wireless USB Microphone User Manual...
-
Page 3: Main Features
Foreword Thanks for purchasing Comica EJoy Uni Pro Main Features · Groundbreaking Studio Mic with Integrated Wireless Module · Support Wired/Wireless Dual Modes for Flexible Usage · 48kHz/24bit Recording, Professional Studio Quality · Built-in Sound Card, Plug and Play · Support Gain Control, Monitoring, One-key Denoise & Muting ·... - Page 4 When connect the mic with computer, please click sound setting and choose "Comica_EJoy Uni Pro TX" as the output and input device; when connect the receiver with computer, please click sound setting and choose "Comica_EJoy Uni Pro RX" as the output and input device When connect the microphone with computer: When connect the receiver with computer: Sound...
-
Page 5: Packing List
Packing List EJoy Uni Pro(A)： Microphone(TX) *1 Receiver(RX) *1 Pop Filter *1 USB C-USB C Charging/ Output Cable*1 EJoy Uni Pro RGB Cardioid Condenser Wireless USB Microphone User Manual USB C-USB A Boom Arm *1 Hook and Loop User Manual *1... - Page 6 Components and Instruction Microphone（TX）： Muting Touch Key Muting Indicator Light Microphone Capsule RGB Light E ect Area Power Switch/Denoise/ RGB Light Power/ Pairing Key E ect Switch/Pairing Key 3.5mm TRS/TRRS Headphone Microphone Status Monitoring Port Indicator Light USB-C Charging/Digital Output Port Gain/Volume Adjustment Knob...
- Page 7 1. Muting Touch Key Touch to adjust the microphone normal pick up or muting status 2. Muting Indicator Light Red light keeps on when muting is on, no light will on when muting is o 3. Microphone Capsule 4. RGB Light E ect Area 5.
-
Page 8: Receiver（Rx
8. 3.5mm TRS/TRRS Headphone Monitoring Port Plug in 3.5mm TRS/TRRS headphones for real-time monitoring 9. USB-C Charging/Digital Output Port Charging the mic with a power bank/DC power supply via the charging/ output cable, or connect to devices for audio output 10. - Page 9 Installation and Usage Install the boom arm: 1. Clamp the stand base of boom arm to the desktop or other objects, then tighten the fixing clip clockwise 2. Connect the boom arm to the stand base, adjust the angle of boom arm through the fixing clip on stand base...
- Page 10 3. Connect the mic shock-mount to the boom arm, then tighten the fixing clockwise 4. Adjust and fix the mic through the locking screw on boom arm...
- Page 11 Install the desktop mic stand: 1. Connect the threaded hole of the shock-mount to the thread of the desktop mic stand, turn clockwise to tighten and fix 2. Install the pop filter on the shock-mount 3. Adjust and fix the shock-mount and mic through the locking screw...
-
Page 12: Wired Mode
Wired mode Connected the mic with smartphone/computer through USB C-USB C charging/output cable and related audio adapter cable/adapter; Choose whether to monitor according to your needs Adapter Adapter Cable 1.Please purchase USB-Lightning adapter cables/adapters support OTG function by yourself when connected with lightning port devices 2.The microphone will automatically switch on when connected with a device,and it will automatically turn o after 10 minutes if disconnected from a device... -
Page 13: Wireless Mode
Wireless mode Pairing (the mic and receiver are paired by default at the factory. If you need to re-pair in special circumstances, please refer to the following pairing method) Long press the two pairing keys of mic to enter pairing status, and connect the receiver to a device to enter wireless state. -
Page 14: Specifications
Specifications Transmitting Power +10dBm Reception Sensitivity -97dBm Antenna Type Ceramic Antenna Wireless Delay <20ms Directivity Cardioid Microphone Sensivity -35dB±2dB Frenquency Range 20Hz ~ 20kHz Maximum SPL 105dB (@ 1% THD) 72dB SPL(A-weighted,as per IEC651) Signal / Noise Equivalent Noise 22dB SPL(A-weighted,as per IEC651) Dynamic Range 83dB SPL(A-weighted,as per IEC651) Sampling Rate...
