Comica CVM-VM20 User Manual

Comica CVM-VM20 User Manual

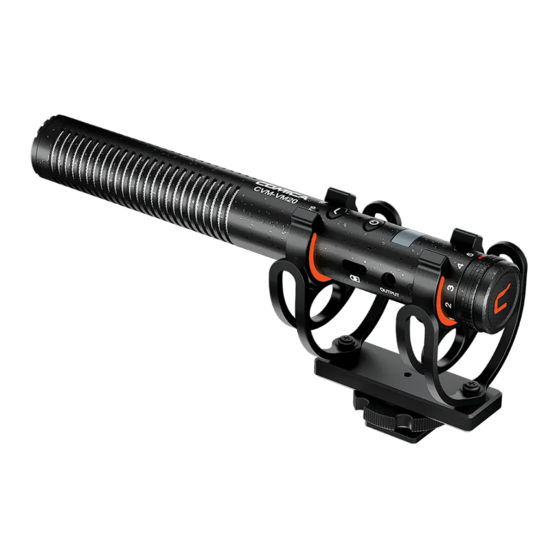

Multi-functional super cardioid condenser shotgun microphone

Advertisement

CVM-VM20
Multi-Functional Super Cardioid Condenser Shotgun Microphone
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVM-VM20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Comica CVM-VM20

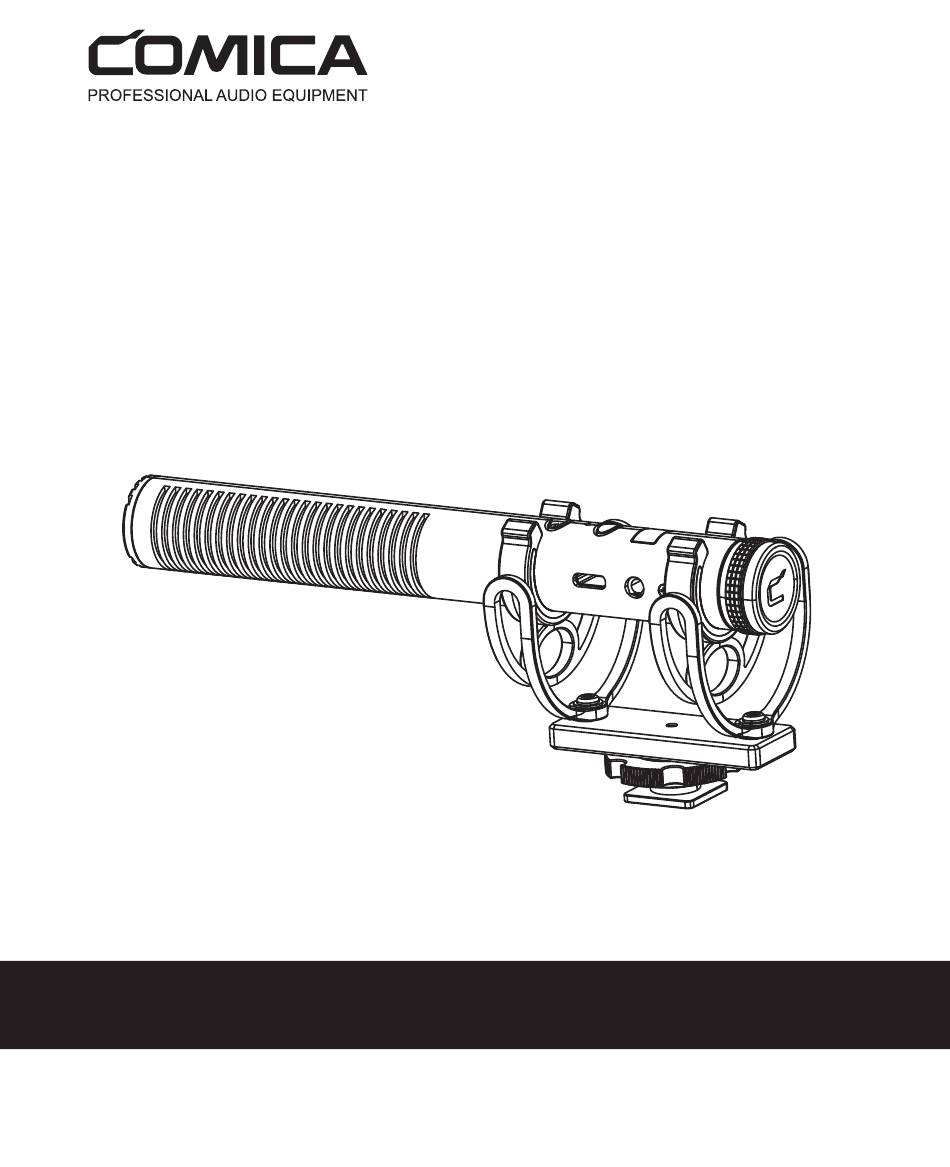

  • Page 1 CVM-VM20 Multi-Functional Super Cardioid Condenser Shotgun Microphone USER MANUAL...
  • Page 3: Main Features

    Foreword Thanks for purchasing COMICA CVM-VM20 Super Cardioid Condenser Microphone. To ensure bring you a good using experience, please read this manual book carefully before using and correctly install and operate. Main Features . 75/150Hz Two Low-cut Filter Modes . Adjustable Stepless Gain Control .
  • Page 4: Packing List

    5. 3.5mm TRS-TRS Audio Cable 6. 3.5mm TRS-TRRS Audio Cable 7. Charging Cable 8. Carry Case 9. User Manual 10. Warranty Card ① ② ③ ④ ⑤ ⑥ ⑦ CVM-VM20 Multi-Functional Super Cardioid Condenser Shotgun Microphone USER MANUAL ⑧ ⑨ ⑩...
  • Page 5: Components Introduction

    Components Introduction Microphone 1. Mic Capsule 2. Low Cut Filter Button 3. Power Button 4. Battery Level Display Screen 5. Gain Control Knob 6. Low Cut Filter Indicator Light 7. Power Indicator Light 8. USB-C Charging Port 9. 3.5mm TRS Audio Output Port ①...
  • Page 6 Installation and Operation 1. Work with Camera 1.1 Install the Microphone to Shock Mount 1.2 Connect the Shock Mount to hot shoe of camera through cold shoe of Shock Mount Cold Shoe Hot Shoe...
  • Page 7 1.3 Connect microphone and camera through 3.5mm TRS - TRS Audio Cable When work with camcorder with XLR interface, please purchase 3.5mm TRS-XLR audio cable by yourself...
  • Page 8 2. Work with Phone 2.1 Install the Microphone to Shock Mount; connect the Shock Mount to cold shoe extension ( Please prepare the grip kit by yourself ) Cold Shoe Cold Shoe Extension 2.2 Connect microphone and smartphone through 3.5mm TRS - TRRS Audio Cable;...
  • Page 9: Function And Usage

    Function and Usage 1. Power Button Short press for On/Off; the Power Indicator Light is blue when turn on it, the light is red when low battery 2. Low Cut Filter Button Short press for switching Low Cut Filter. There are turn off, 75Hz, 150Hz three levels for switching.
  • Page 10: Specification

    Specification Polar Pattern Super Cardioid Frequency Response 20Hz ~ 20KHz Low-cut 75Hz / 150Hz Sensitivity Range -43dB ~ -23dB >75dB Maximum SPL >105dB Output Form 3.5mm TRS Power Li-ion Battery 3.7V 300mAh Size Φ22mm x L 177mm Net Weight Operating Temperature 0℃...
  • Page 13 CVM-VM20 多功能超心型电容枪式麦克风 用户使用手册...
  • Page 15 前 言 感谢您购买科唛COMICA CVM-VM20超心型指向电容式麦克风。 使用前请认真阅读此使用说明书,本产品在出厂时已进行精密校准,请勿自行组 装拆卸零部件,否则不予保修! 产品主要功能 .75Hz/150Hz两档低切模式 .无级增益可调 .OLED可视化电量 .通用于3.5mmTRS/TRRS,卡侬接口的设备 .USB-C可充电内置锂电池,支持边充边用 .全金属结构,超强屏蔽,稳固耐用 注意事项 当需要长时间使用时,可连接外部移动电源实现边充边用;不支持AC/DC电源 供电,否则会产生噪音 使用时请远离热源或干扰源 使用时请避免掉落,碰撞或重击 请勿在下雨或潮湿环境中使用,否则会有短路的危险 使用完成后,请注意关机后再进行存放...
  • Page 16 1. 麦克风主体 2. 支架 3. 防风棉 4. 防风毛 5. 3.5mm TRS-TRS音频线 6. 3.5mm TRS-TRRS音频线 7. 充电线 8. 便携包 9. 说明书 10. 保修卡 ① ② ③ ④ ⑤ ⑥ ⑦ CVM-VM20 Multi-Functional Super Cardioid Condenser Shotgun Microphone USER MANUAL ⑧ ⑨ ⑩...
  • Page 17 部件介绍及说明 麦克风主体 1. 拾音头 2. 低切选择开关 3. 电源键 4. 电量显示屏 5. 增益调节旋钮 6. 低切指示灯 7. 电源指示灯 8. USB-C充电插口 9. 3.5mm TRS音频输出插口 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨...
  • Page 18 安装方法 1.搭配相机安装方法 1.1 把麦克风主体装到支架上 1.2 通过冷靴座把支架装到相机热靴上 冷靴座 热靴...
  • Page 19 1.3 通过 3.5mm TRS-TRS音频线连接麦克风与相机 当用作XLR接口的摄像机时,请单独购买 3.5mm TRS-XLR音频线即可使用...
  • Page 20 2.搭配手机安装方法 2.1 参照前面的方法把麦克风主体装到支架上,再通过冷靴座把支 架装到手柄冷靴上(手柄套装请自行配备) 冷靴座 手柄冷靴 2.2 通过3.5mm TRS-TRRS音频线连接麦克风与手机,注意TRS插头 连接麦克风,TRRS插头连接手机 TRS插头 TRRS插头...
  • Page 21 功能与使用方法 1.电源键 短按开机或关机,开机时电源指示灯亮蓝色,麦克风电量低时电 源指示灯亮红灯 2.低切选择开关 短按可进行对应的低切,共有三档可选,分别为关闭、75Hz低切、 150Hz低切。当选择75Hz或150Hz低切时,对应的低切指示灯会亮蓝色 3.电量显示屏 显示麦克风电量 4.增益调节旋钮 旋转可调整麦克风的增益 5.USB-C充电插口 使用USB-C插头连接外部电源可给麦克风充电,支持边充边用以延 长麦克风工作时间 6. 3.5mm TRS音频输出插口 可插入3.5mm TRS音频线进行音频输出...
  • Page 22 技术参数 指向性 超心型 频响 20Hz~20KHz 低切 75Hz/150Hz -43dB ~ -23dB 灵敏度范围 信噪比 >75dB 最大声压等级 >105dB 输出形式 3.5mm TRS 电源供电 锂聚合物 3.7V 300mAh 尺寸 Φ22mm x L 177mm 净重 工作温度 0℃ ~ 50℃ 存储温度 -10℃ ~ 60℃...
  • Page 24 Email: support@comica-audio.com...
