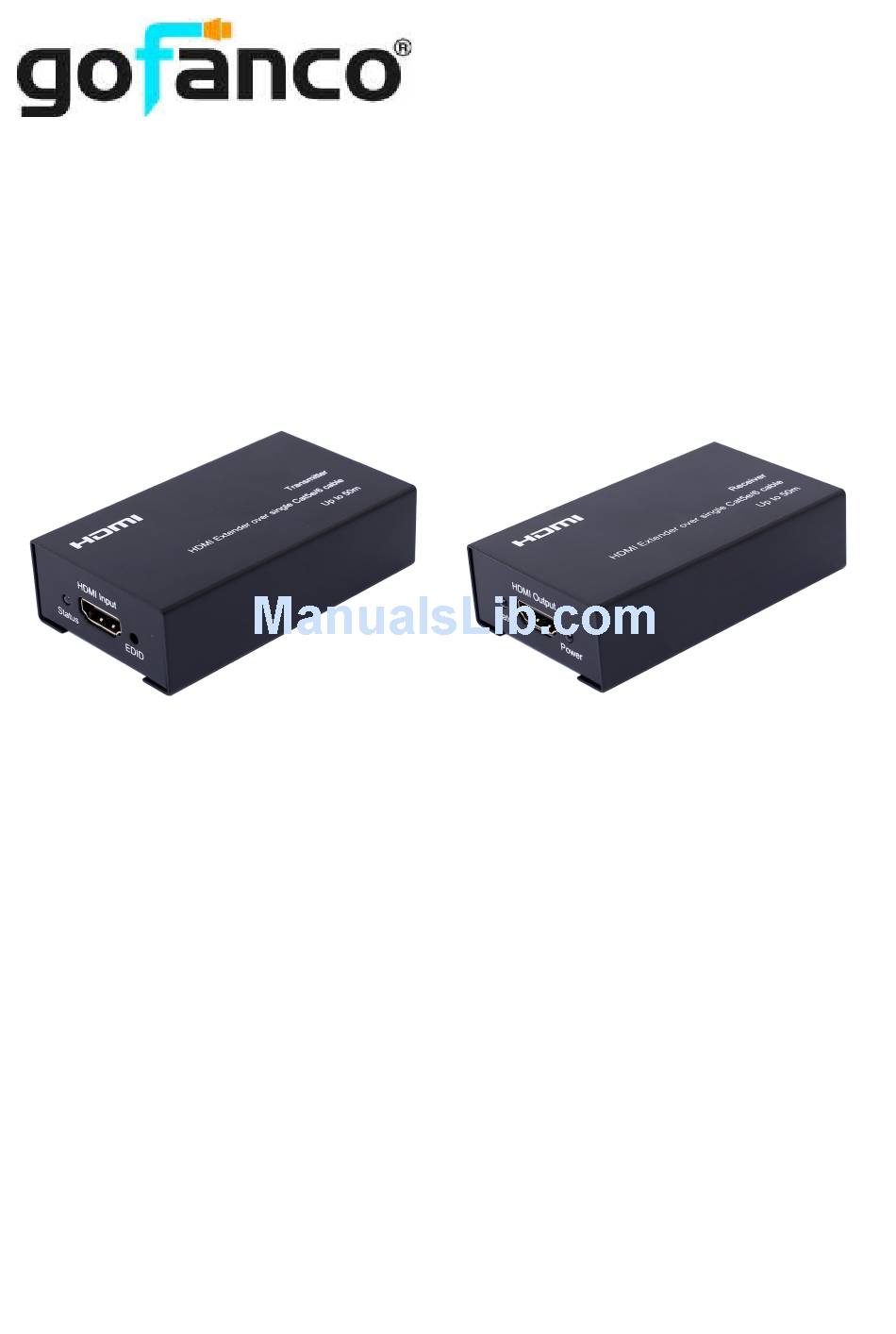

- Page 1 50m HDMI Extender over Single Cat5e/6 with 3D Support User Manual P/N: HDExt G4-0032A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com. For technical support, please email us at support@gofanco.com.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ............……..4 Features............………..4 Package Contents..........………… 5 Installation Requirements......………..5 Product Description..........………… 6 Hardware Installation ........………..8 Connection Diagram .........………… 9 Specifications ..........……………..10... -
Page 5: Package Contents
User’s Manual (1 piece, this document) ● Mounting ears (4) & screws (8) ● If any of these items is missing, please contact either gofanco or your vendor. INSTALLATION REQUIREMENTS HDMI source device (computer, DVD player, game console, etc. . .) HDMI... -
Page 6: Product Description
PRODUCT DESCRIPTION Transmitter Unit Status LED: Indicates the state of the signal connection HDMI input port: Receives the HDMI signal to be transmitted EDID copy button: Retrieves the EDID information from the display CAT-5e/6 output: Connect one end of the Cat5e/6 cable to this port Power input: This is where the transmitter receives power from the 5V DC power supply... - Page 7 Receiver Unit Status LED: This LED lights when the receiver is connected to the transmitter via the Cat5e/6 cable HDMI output port: Recreates the original HDMI signal Power LED: Indicates whether the receiver is powered on CAT-5E/6 input: Connect one end of the Cat5e/6 cable to this port Power input: This is where the receiver is supplied power from the 5V DC power supply...
-
Page 8: Hardware Installation
HARDWARE INSTALLATION Power off all devices including your HDMI source and HDMI display. Connect your HDMI source device to the Transmitter's HDMI Input connector with an HDMI cable (HDMI cable not included). Plug your CAT5e/6 cable between the Transmitter's RJ45 Output and the Receiver's RJ45 Input. -
Page 9: Connection Diagram
CONNECTION DIAGRAM *Note: If the sink (e.g. HD TV) can’t display any signal, try this. Connect the TV/display directly to the Transmitter’s HDMI Input, plug in the Transmitter’s power adapter, then press the transmitter’s “EDID” button. The “Status” light will then flash, which indicates that the EDID data has been copied from the display device successfully. -
Page 10: Specifications
SPECIFICATIONS Operating Temperature Range -5 ℃ to +35 ℃ (+23 ℉ to +95 ℉ ) Operating Humidity Range 5 to 90%RH (Non-Condensing) Input Video Signal 0.5-1.0 Volts P-P Input DDC Signal 5 volts p-p(TTL) 576i, 480P, 576P, 720P, 1080i, 1080P Support Video Formats 3D video ①... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco gofanco.com...
