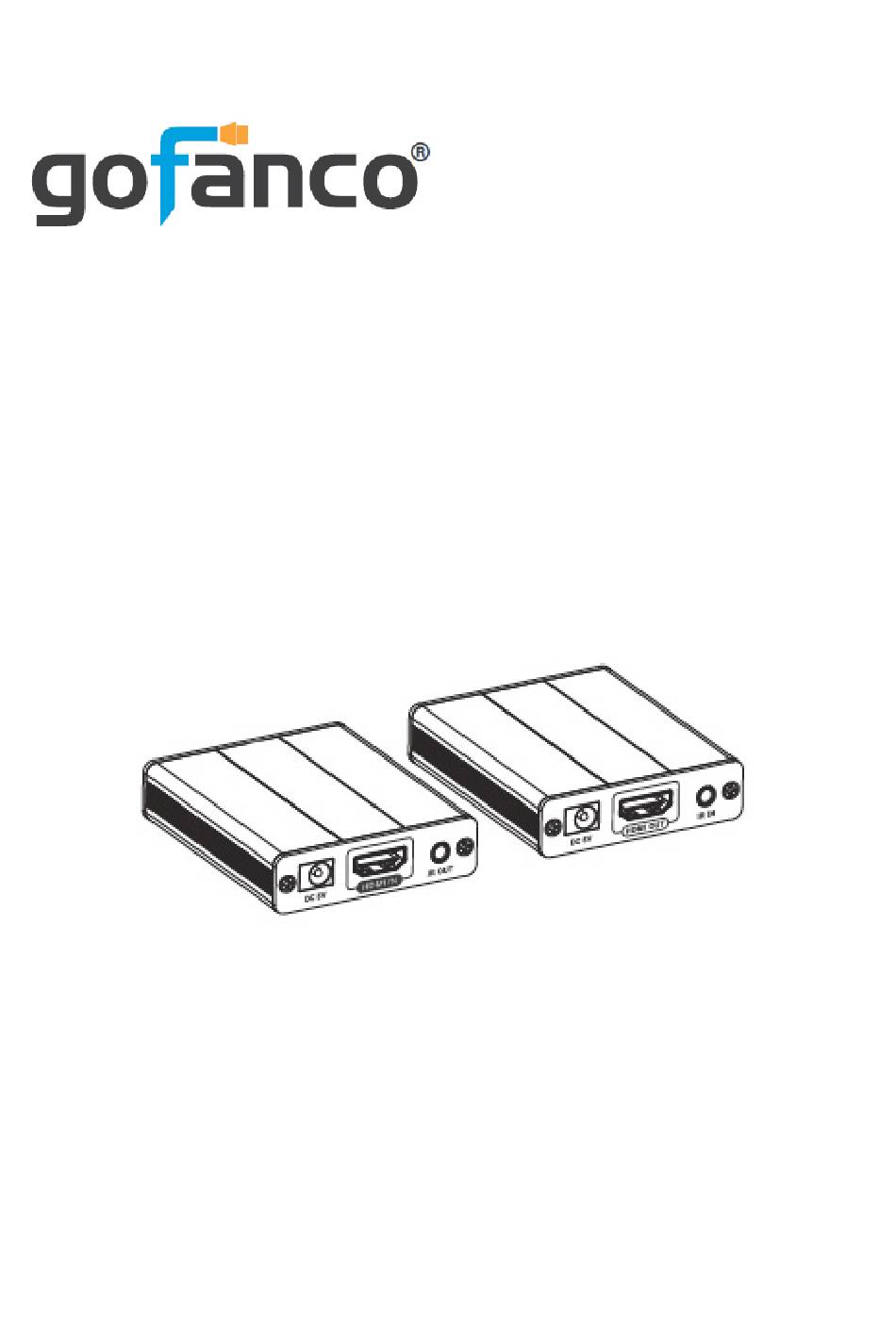

- Page 1 HDMI CAT6 Extender with ESD - 120m User's Guide P/N: HDEXT120ESD G4-0081A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Important Safety Notices Please read safety instructions carefully before installation and operation. • Please pay close attention to all warnings and hints for this device • Do not expose this unit to rain, heavy moisture, or liquid • Do not repair the device or open the enclosure without professional guidance to avoid electric shocks.

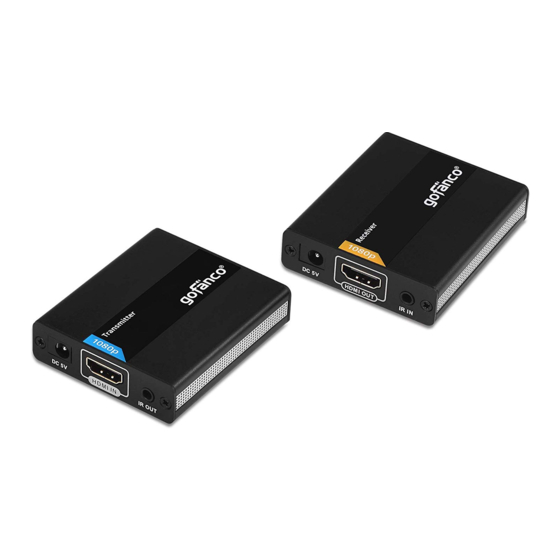

- Page 4 Introduction The HDMI CAT6 Extender with ESD - 120m transmits uncompressed HDMI signals up to 394 feet (120m) in 1080p with less than 200ms latency. Features • HDMI 1.3, HDCP 1.4, 10.2Gbps bandwidth. Supports 2-channel PCM audio • ESD Protection – Prevents malfunction or break down due to Electrostatic discharge •...
-
Page 5: Product Layout
Installation Requirements HDMI source device (computer, DVD player, etc) HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.) UTP/STP CAT6 cable following IEEE-T568B wiring standard Product Layout Figure 1: Transmitter (TX) 1. Reset Button Press the button to reset the transmitter Connects to the Receiver's RJ45 Input port 2. -
Page 6: Hardware Installation
Figure 2: Receiver (RX) 1. Reset Button Push the button to reset the receiver Connects to the Transmitter's RJ45 Output 2. RJ45 Input port using a CAT6 cable Lights up when RJ45 from TX detected 3. Link LED Flashes when RJ45 from TX not detected 4. - Page 7 Optional: Connect the IR Blaster Cable to the Transmitter's IR output port. Face the eye towards your HDMI source device's IR window. This connection is needed only if you need to control your HDMI source from the remote location. Plug your CAT6 cable between the Transmitter's RJ45 Output and Receiver's RJ45 Input.
- Page 8 CAT Cable Wiring We suggest both RJ-45 connectors be wired identically using T568B wiring standard for the best performance and compatibility. Application Transmitter (TX) Receiver (RX) HDMI Out HDMI In CAT6 Display IR Blaster Cable IR Receiver Cable...
- Page 9 FAQ & Solutions There is no video output or audio and video display is not normal: 1) Press the Receiver's reset button to reset the unit. 2) Use a shorter network cable. The Receiver's Link LED is flashing: 1) Make sure the network cable follows the IEEE-T568B wiring standard.
-
Page 10: Specifications
Specifications Item Specifications HDMI Compliance HDCP Compliance Data Transmission <200ms latency Video Bandwidth 10.2Gbps 720x576@50Hz, 720x480@60Hz, 1280x720X60Hz, 1920x1080@60Hz, 640x480@60Hz, 800x600@60Hz, Resolution 1024x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1440x900@60Hz, 1680x1050@60Hz Contact discharge: Level 3 ESD Protection Air discharge: Level 3 Standard: IEC 61000-4-2 Audio Support IR Frequency Range 20KHz-60KHz Power Adapter... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
