Infinite Peripherals Infinea BluePad Quick Start Manual

Infinea BluePad
®
Charging Station (5-Unit)
QUICK START GUIDE
ASSEMBLY
1. Place the Infinea BluePad Charging
Station on a sturdy, clean and dry surface
in an open, well-ventilated area away
from direct sunlight.
2. Insert the included AC adapter plug into
the DC Jack Port on the charger.
3. Connect the AC power adapter to a
power outlet.
4. Gentley insert the unit into a charging
bay, ensuring that the battery contacts
are aligned with the charging bay's
contacts. The LED lights up with the
charging status.
ABOUT YOUR INFINEA®
DC Jack Port
CHARGE STATUS
The Infinea BluePad Charging Station uses LEDs
to indicate the charge status.
Check the LED next to each charging bay to verify
charging status. prior to use.
STATUS INDICATOR LEDS
Green Inserted device is fully charged.
Orange
Inserted device is charging.
Flashing Red Over-current protection is enabled.
Charging bay is at or above maximum
fault current (1.9A) and has stopped
working.
Solid Red* Over-current protection is enabled due
to excessive temperature fault (over
60°C/140°F).
No LED** Indicates there is no device in charging
bay or there is no power supply
attached the charger.
*When the LED is solid red and the operating
temperature has decreased to at or below 55°C/131°F,
the charging bay begins working again.
**No LED may also indicate over-current protection is
enabled if the charging pins are shorted, or there is no
load.

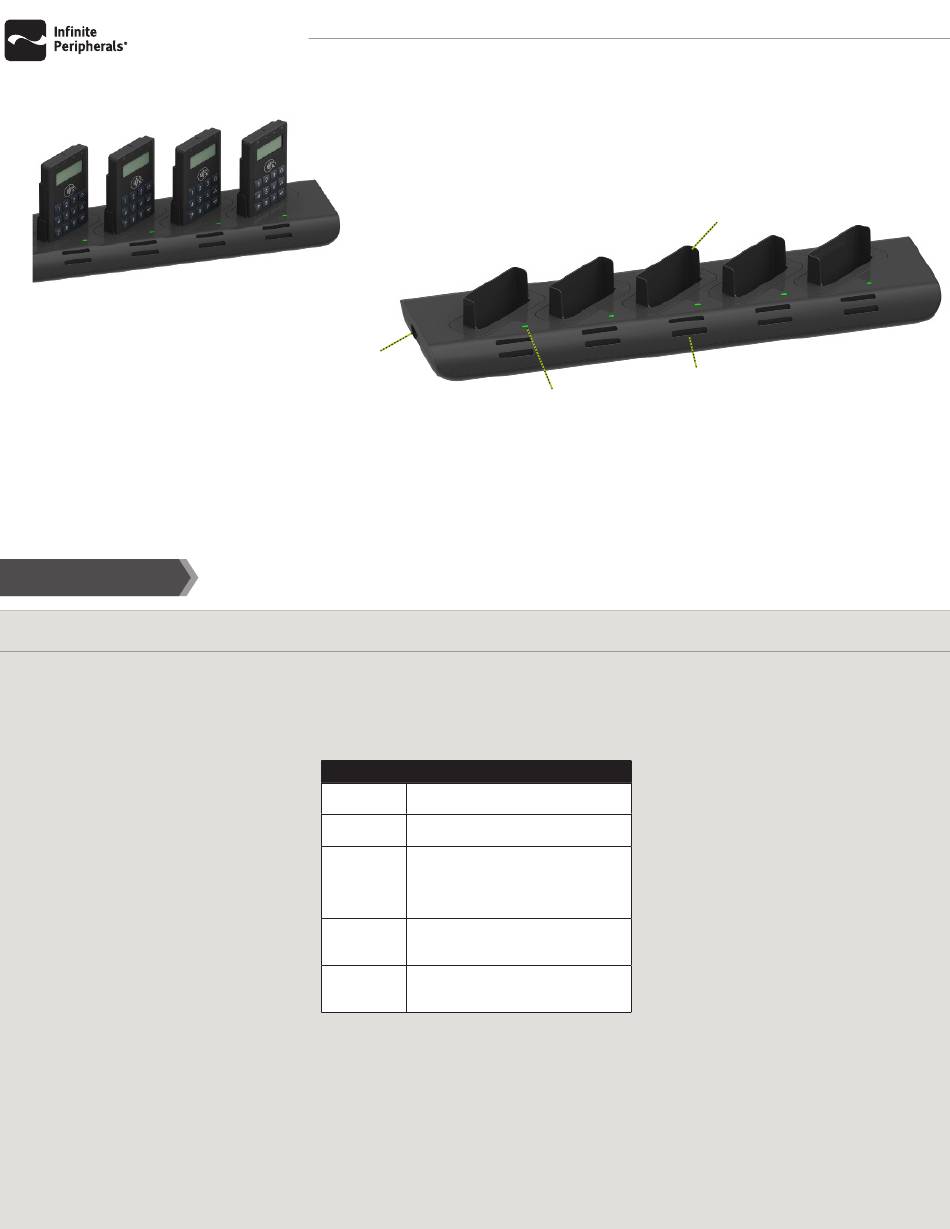

BLUEPAD CHARGING STATION (5-Unit)
Attachment
Cooler Vent
LED Indicator
TROUBLESHOOTING
The LED does not come on when a unit is
inserted.
• Ensure the power supply is securely
inserted into both the power outlet and the
DC port on the charging station
• Ensure the unit is properly seating in the
charging bay
It takes an excessive amount of time to fully
charge the battery.
• Verify ambient temperature meets the
operating temperature requirements
Operating: 0°C – 40°C (32°F – 104°F)
