Infinite Peripherals Infinea Tab M Quick Start Manual

Infinea Tab
iPhone 6 Plus
Charging Station
(5-Unit)
QUICK START GUIDE
ASSEMBLY
2
1. Place the Infinea Tab M for iPhone 6 Plus
Charging Station on a sturdy, clean and
dry surface in an open, well-ventilated
area away from direct sunlight.
2. Insert the included AC adapter plug into
the DC Jack Port on the charger. Then
connect the AC power adapter to a power
outlet.
3. Insert the Infinea Tab M for iPhone 6 Plus
unit into a charging bay, ensuring that the
battery contacts are aligned with the bay's
contacts. The LED will light up to provide
the charging status.
ABOUT YOUR INFINEA TAB M® for iPHONE 6 PLUS
CHARGING STATION (5-Unit)
M for
®
CHARGE STATUS
The Infinea Tab M for iPhone 6 Plus Charging
Station (5-Unit) uses a tricolor LED to indicate
the charge status.
Check the status LED on each slot to verify
normal charging status. When the battery is fully
charged, the LED indicator will be green.
Status Indicator LEDS
Green
Orange
Flashing Red
Solid Red
No LED
Note 1: When the LED is solid red and the operating
temperature has decreased to at or below 55°C/131°F,
the charging bay will begin working again.
Note 2: No LED may also indicate over-current
protection is enabled if the charging pins are shorted,
or there is no load.

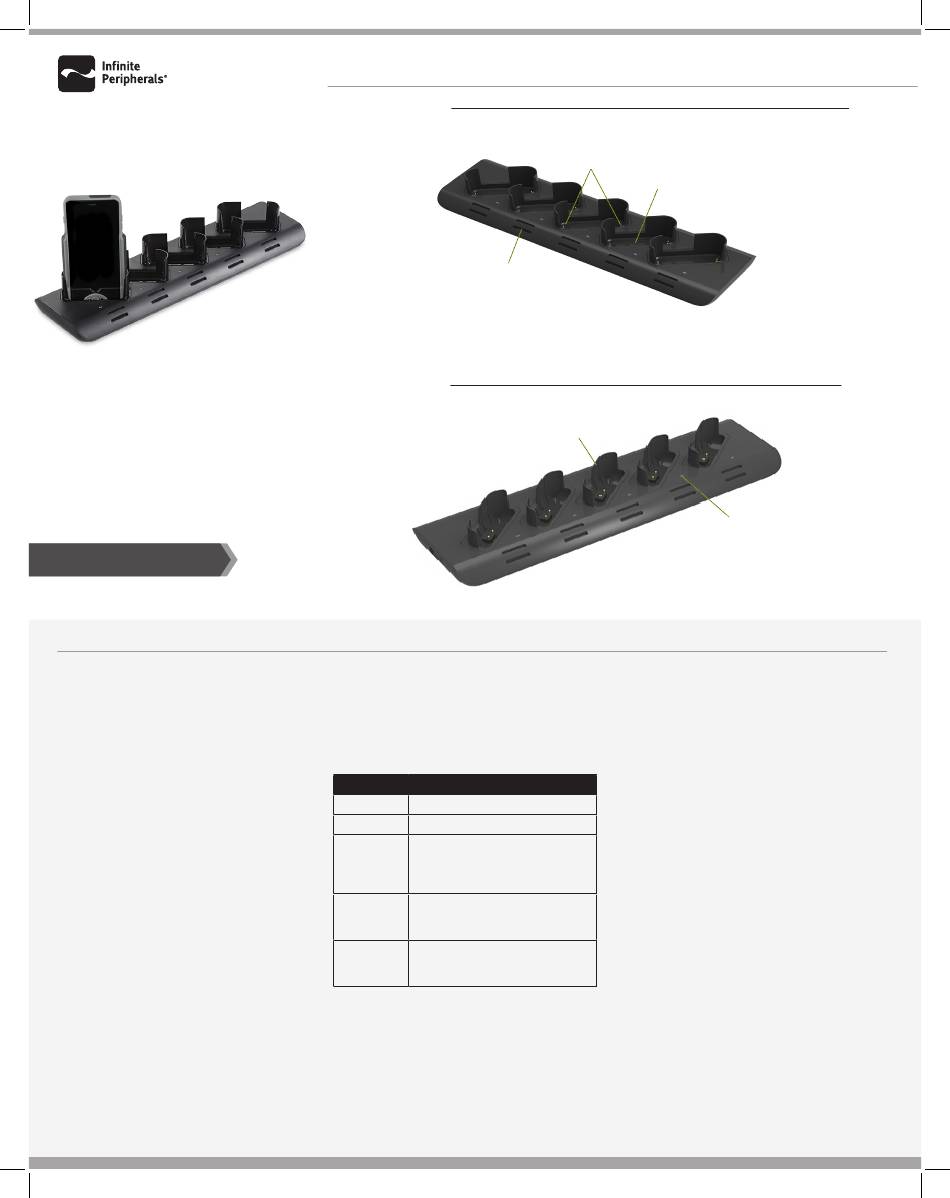

Infinea Tab M for iPhone 6 Plus Charging Station (5-Unit) - Standard Case
CHARGING CONTACTS
COOLING VENT
Infinea Tab M for iPhone 6 Plus Charging Station (5-Unit) - Rugged Case
ATTACHMENT
Inserted device is fully charged.
Inserted device is charging.
Over-current protection is enabled.
Charging bay is at or above
maximum current fault (1.9A) and
has stopped working.
Over-current protection is enabled
due to overheat fault (over
0°C/140°F).
Indicates there is no device in
charging bay or there is no power
supply attached the charger.
CHARGING BAY
LED INDICATOR

TROUBLESHOOTING

The LED does not come on when a unit is
inserted.
• Ensure that the power supply is fully
plugged into the outlet and plugged into
the DC port.
It takes an excessive amount of time to fully
charge the battery.
• Verify ambient temperature meets the
operating temperature requirements.
Operating: 0°C – 40°C (32°F – 104°F)
