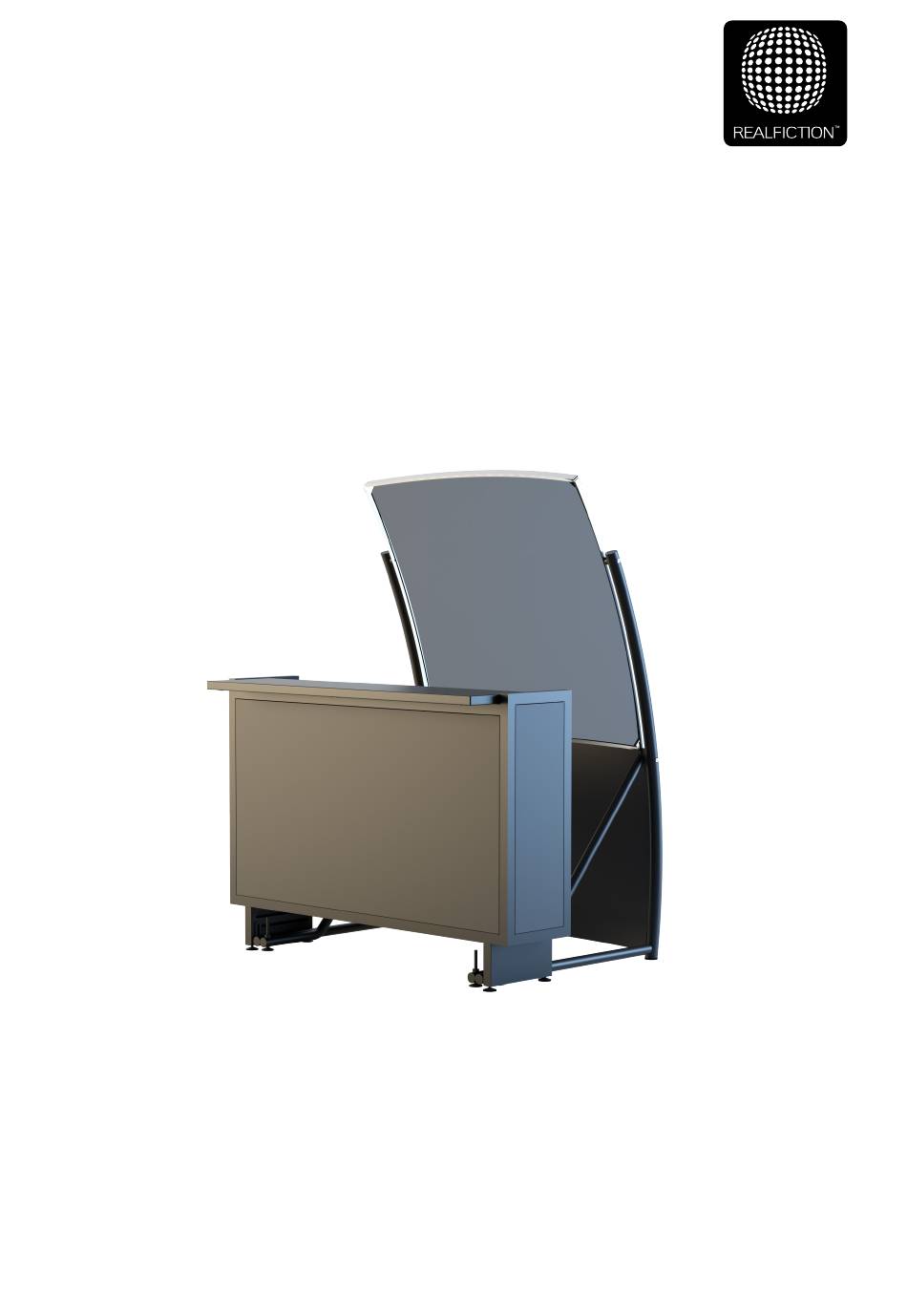

DEEPFRAME ONE - ASSEMBLY GUIDE
VERSION 1.1 - ORIGINAL ASSEMBLY GUIDE
It is important to read this assembly guide before using the DeepFrame One, and to follow advices and
instructions on safety, operation and general use to get the best possible experience with your DeepFrame One.

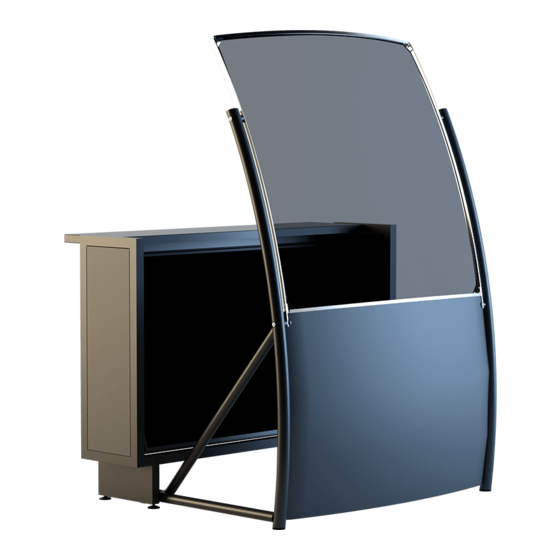

The DeepFrame One is designed to showcase products and other objects in combination with free floating 3D
video animations. Realfiction and DeepFrame are registered trademarks owned by Realfiction ApS.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DEEPFRAME ONE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Realfiction DEEPFRAME ONE

Summary of Contents for Realfiction DEEPFRAME ONE

  • Page 1 VERSION 1.1 - ORIGINAL ASSEMBLY GUIDE It is important to read this assembly guide before using the DeepFrame One, and to follow advices and instructions on safety, operation and general use to get the best possible experience with your DeepFrame One.

  • Page 2: Table Of Contents

    Content: When receiving the DeepFrame One Setup time and persons needed Assembling the DeepFrame One Assembling the display Attaching the OLED screen to the OLED housing Connecting the media player and wires Attaching the speaker module...

  • Page 3: When Receiving The Deepframe One

    When receiving the DeepFrame One The DeepFrame One comes in two flightcases that holds all the different parts. Please note that we cannot be hold responsible for any damage or failure that has occurred due to the use of third party constructed flight case or packaging. This limitation shall also apply if the original packaging has been altered in any way.

  • Page 4: Setup Time And Persons Needed

    Setup time and persons needed Setting up the display can be done by 2 persons in around 2 hour.

  • Page 5: Assembling The Deepframe One

    For assembling the display we recommend being to persons. Unpacking the display DeepFrame One comes in 2 flight cases. 1. Begin by opening the tallest flight case first and locate the Toolbox inside, then set this flight case aside. 2. Now open the shorter flight case and locate the Speaker Module. Lift it out and set it aside for now...
  • Page 6 4. Remove the transport bolts in each side to unlock the OLED Housing from the flight case. Use the wrench and Umbraco key size 8 for this. 5. When the bolts have been removed, lift the OLED Housing out from the flight case and place it on the floor. 6.
  • Page 7 8. Take out the Optic Safety Bracket and slide it down into the holes on the top of each Leg Frame, as this will set the correct distance between the leg structures and provide support when mounting the DeepFrame Optical Lens afterwards.
  • Page 8 10. Secure the DeepFrame Optical Lens in place using 1 long black 10mm bolt in each side – make sure you do not use the transport bolts you have removed previously. IMPORTANT: In order to proceed assembling the display, make sure that all the bolts are tightened completely, both underneath the OLED Housing and on the Leg Frames now supporting the weight of the DeepFrame Optical Lens.

  • Page 9: Attaching The Oled Screen To The Oled Housing

    ATTACHING THE OLED SCREEN TO THE OLED HOUSING 1. To begin with we recommend removing the 2 side plates and front plate on the OLED Housing, as this will create more room to work with when attaching the OLED Screen. 2.
  • Page 10 4. Loosen the screw for the Screen Adjuster located in each side. 5. Tilt it forward and then tighten the screws again. 6. Remove the top brackets on the Sound Bar Holders. 7. Open the box holding OLED Screen and remove the Styrofoam sides...
  • Page 11 8. Locate the Sound Bar and lift it in place on the Sound Bar Holders. Use the rubber cushions to protect the Sound Bar. Important: Make sure that the round speakers are free to move up and down when turning the OLED Screen on and off.
  • Page 12 12. Lift the OLED Screen in place, one side at a time, by hinging the bracket to the OLED Mount. 13. Then very gently hinge the other side on, thereby curving the OLED Screen to fit the OLED Mount. Important: Do not apply pressure to the bottom part of the OLED Screen, instead allow the bottom corner to bend in a different radius than the top, leaving a wider gap! 14.

  • Page 13: Connecting The Media Player And Wires

    16. (Optional) Then mount the optional Top Protector. Connecting the media player and wires 1. In the box for your OLED Screen take the long Connection Cable Extender and remove the plastic protection. 2. Attach the Black Cable Lock to the Connection Cable Extender and mount it to the Sound Bar. Fasten with the 2 small black screws.
  • Page 14 4. Mount the Media Player in the right side using 2 small clamping screws. 5. Place the Power Strip under the Sound Bar. 6. Connect the HDMI cable from the Media Player to the Sound Bar.

  • Page 15: Attaching The Speaker Module

    Attaching the Speaker Module 1. Remove the protective bag from the Speaker Module. 2. Gently lift it over to the Leg Frames underneath the DeepFrame Optical Lens and attach the lower part first by sliding the notches in to fit the pins on each Leg Frame. Then slowly raise it upwards and fasten with 1 long black 10mm bolt in each side.
  • Page 16 4. Use the search spring from the Toolbox and guide it through the small hole in the Leg Frame located under the Speaker Module, until it comes out of the hole where you removed the plastic plug. 5. Attach the speaker cable to the search spring using a piece of tape and gently pull it back through the Leg Frame. 6.
  • Page 17 8. Lastly, attach the 2 side plates, the front plate and the plates in the bottom on the OLED Housing again. Assembly is now finished. Please see the user manual for how to operate the display.
  • Page 18 Realfiction and Dreamoc are registered trademarks owned by Realfiction ApS. Other marks may be mentioned here in that belong to other companies. © 2018 Realfcition Aps. All rights reserved. Realfiction Aps | Øster Alle 42, 7th floor | DK-2100 Copenhagen Ø Denmark | Phone: +45 70 20 64 90...
