Javad OMEGA User Manual page 9

1 2 3 4
12 13
165.9*
209.2*
www.javad.com
5 6 7 8 9 10 11
14 15 6 17

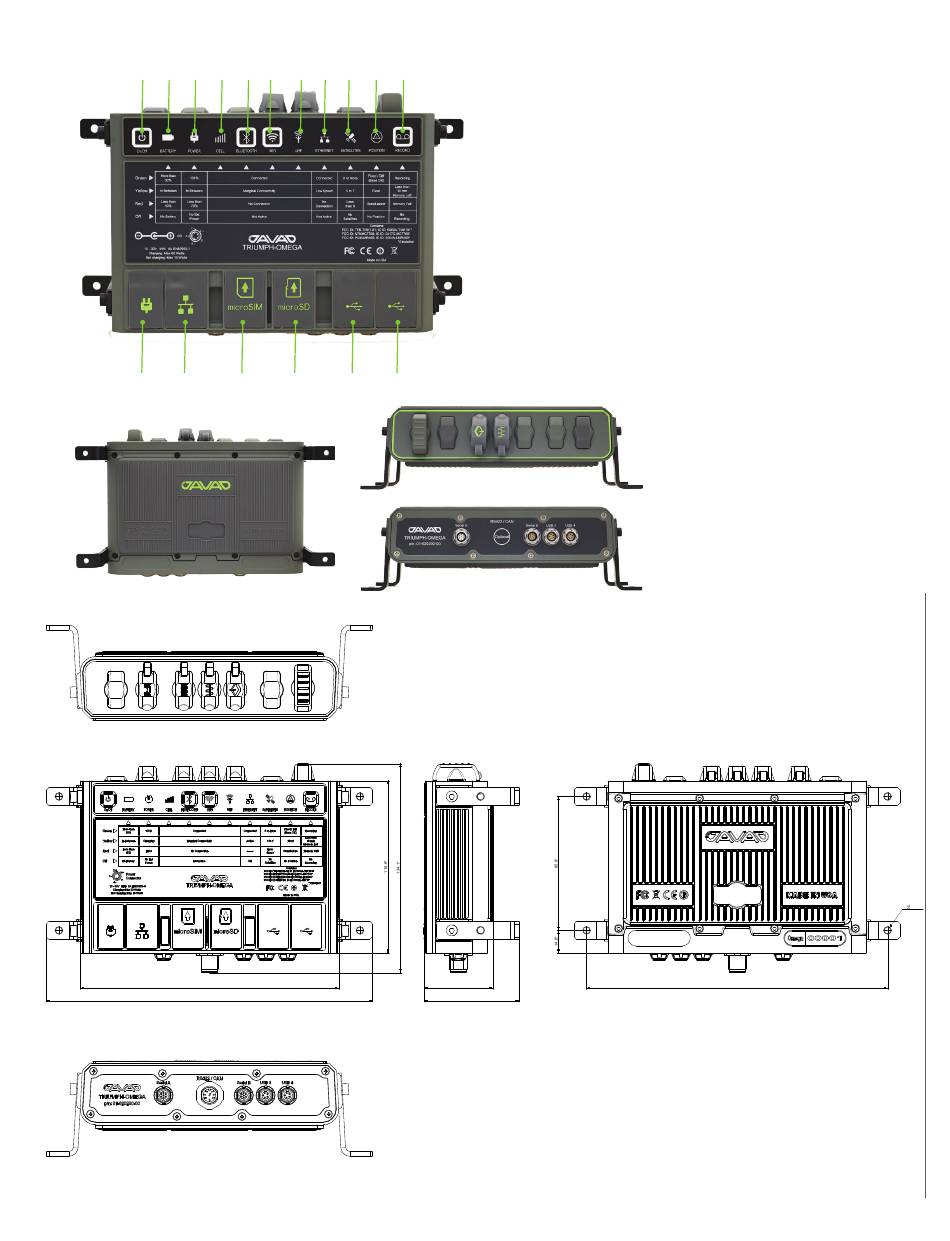

1. On/Off button
2. Battery status
3. Power status
4. GSM status
5.Bluetooth status
6. WiFi status
7. UHF status
8. Ethernet status
9. Satellites status
10. Position
11. Recording status
44.3*
61*
Notes:
1. DIMENSIONS ARE IN MILLIMETERS.
THIRD ANGLE PROJECTION
2. * REFERENCES DIMENSION.
12. Power port
13. Ethernet port
14. MicroSIM slot
15. MicroSD slot
16. USB port
17. USB port
Top view
Bottom view. Connectors
193.2*
4.3*
4 holes
