Summary of Contents for TOORX TRX Speed Cross

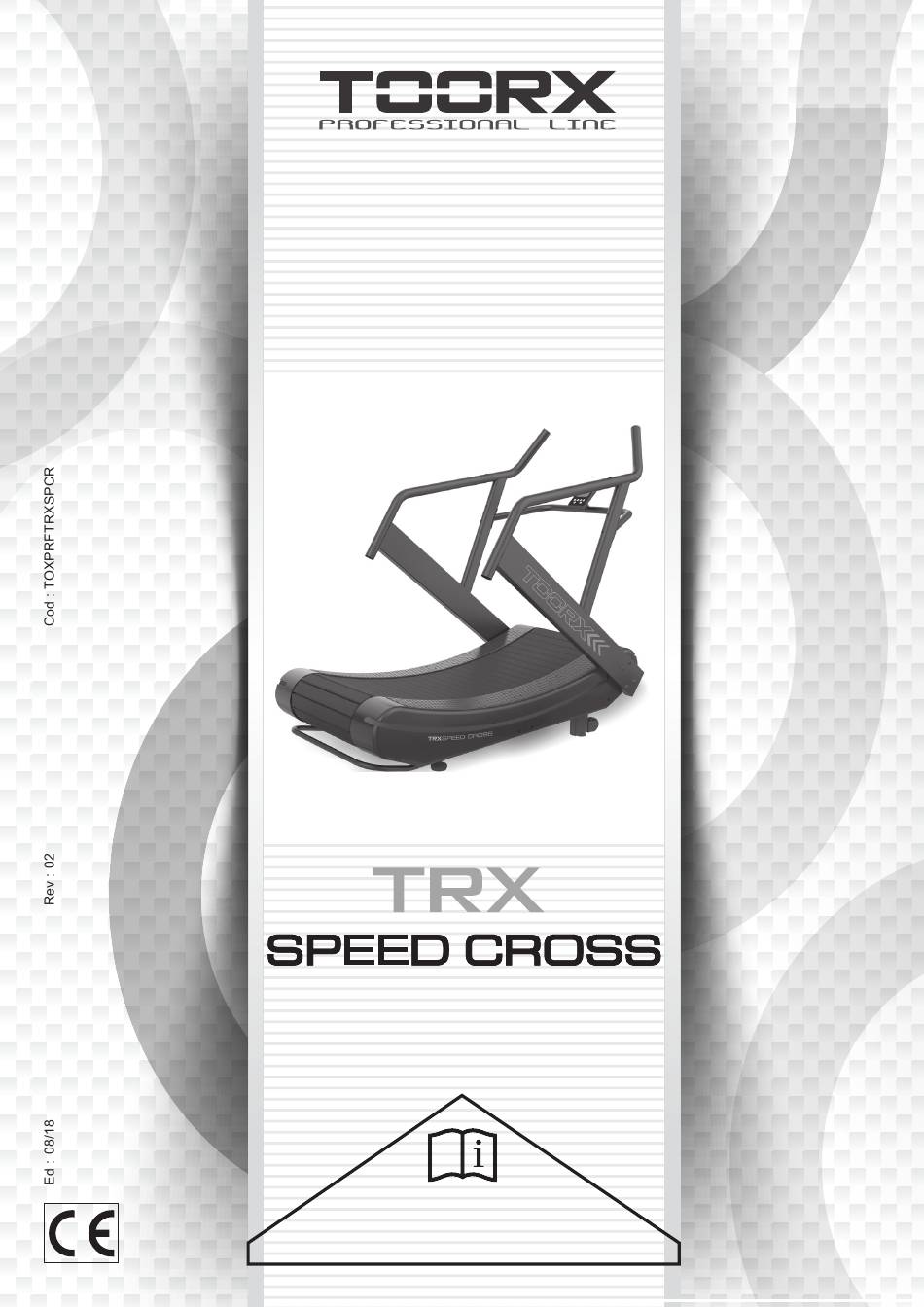

- Page 1 INSTRUCTION...
- Page 2 2.Explode Drawing...
- Page 3 3.Part list Description No. Description Main Frame (R) 6350Cb front cover (L) Main Frame (L) 6350CB front cover (R) Front connecting tube 6350CB rear cover (L) connecting tube 6350CB rear cover (R) Front wheel fixed tube Antiskid plate 1(6350CB-26) Upright post (R) Antiskid plate 2 (6350CB-27) Upright post (L) Foot pad(OMA-05-07-015)

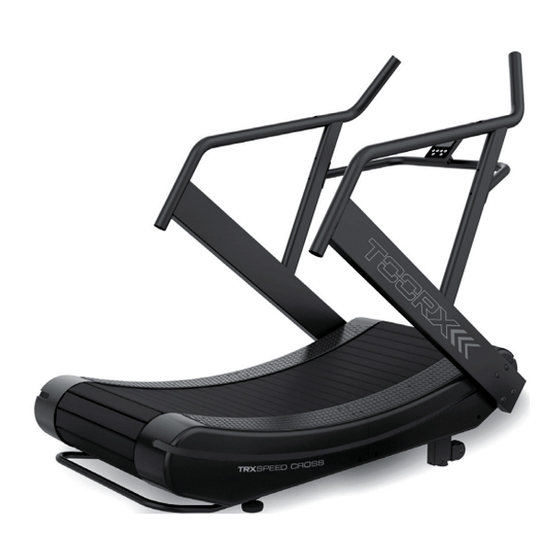

- Page 4 4.Product profile Handlebar console Handle pulse Upright post Chain belt Antiskate plate cover Lifting handle Technical Parameter 150kg Max. Weight 1769*924*1568 Dimension (Unfold) 1600*480mm Running surface 1.0－18km/h Speed Range...
- Page 5 Remark: Our company retain the priority of revision not to advise in advance. Different views Packing list Upright post Main body...
- Page 6 console frame handle bar console 说明书 Hardware pack manual Hardware pack list Allen C.K.S half thread screw（M8*65*20） Allen C.K.S full thread screw（M8*20）8pcs 8pcs...
- Page 7 Tshape wrench 1pc L-shape wrench 1pc Cross wrench 1pc Main parts console Motor belt Upright post Self-generator motor Front roller Aluminum chain Rear roller Timing belt Bearing fixed set...
-
Page 8: Installation
Main frame antiskate plate Main frame cover 5.Installation Step 1: Take out the console frame and console from the box, connect the console communication wire then fix on the console frame with 4PCS M5X10 screws. Step 2 ： Take out the machine from the package and put it on the level floor.（see picture）... - Page 9 Step 3 ： Step 3: Connect the communication wire in the right upright post, then fix the upright post with 4pcs M8x65x20 screws. Then assemble the left upright post without wire connecting Step 4: Connect the right handlebar and right upright post with 2pcs M8*20 screw. Fix the left handlebar in the same way.
- Page 10 Step 5 ： Connect the communication wire between handlebar and the console frame, then fix the console frame with 4pcs M8*20 screws, tighten all the screws. Step 6 ： Treadmill installation is finished.
- Page 12 6.console function; treadmill instruction （ 1 ） key instruction ： 1.Function keys： START/STOP，RESET，RECOVERY，LEVEL+/-，ENTER，handle pulse and stop key，hand resistance “+” “-“. 2.Function key instruction ： A： “START/STOP”key，when press this key in standby mode or pause mode,you will start the treadmill;when you press this key while running, the treadmill will stop or pause. B：...
- Page 13 （ 2 ） heart rate function: Turn power on for the treadmill, and grasp the handle pulse on handlebars with both hands. To test your heart rate more accurate, please stand on the treadmill and the testing time should be more than 30 seconds.
- Page 14 LEVEL 1 LEVEL 1 LEVEL 3 LEVEL 1 LEVEL 1 LEVEL 4 LEVEL 1 LEVEL 3 LEVEL 1 LEVEL 4 LEVEL 1 （ 5 ） RECOVERY function ： When you press RECOVERY key，the TARGET HR window will show rEC，and it will enter into 10 seconds of heartbeat detection，...
- Page 15 then will have enough power to light up the screen, and thus the user can operate the treadmill. 3. this system is without external power supply, so need the user keep running to 此 supply power to the system; if there is an undersupply of electricity, the screen display will go dark or resistance disappear，...
- Page 16 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy contact@toorxprofessional.it www.toorxprofessional.it...
