Summary of Contents for TOORX BRX3000

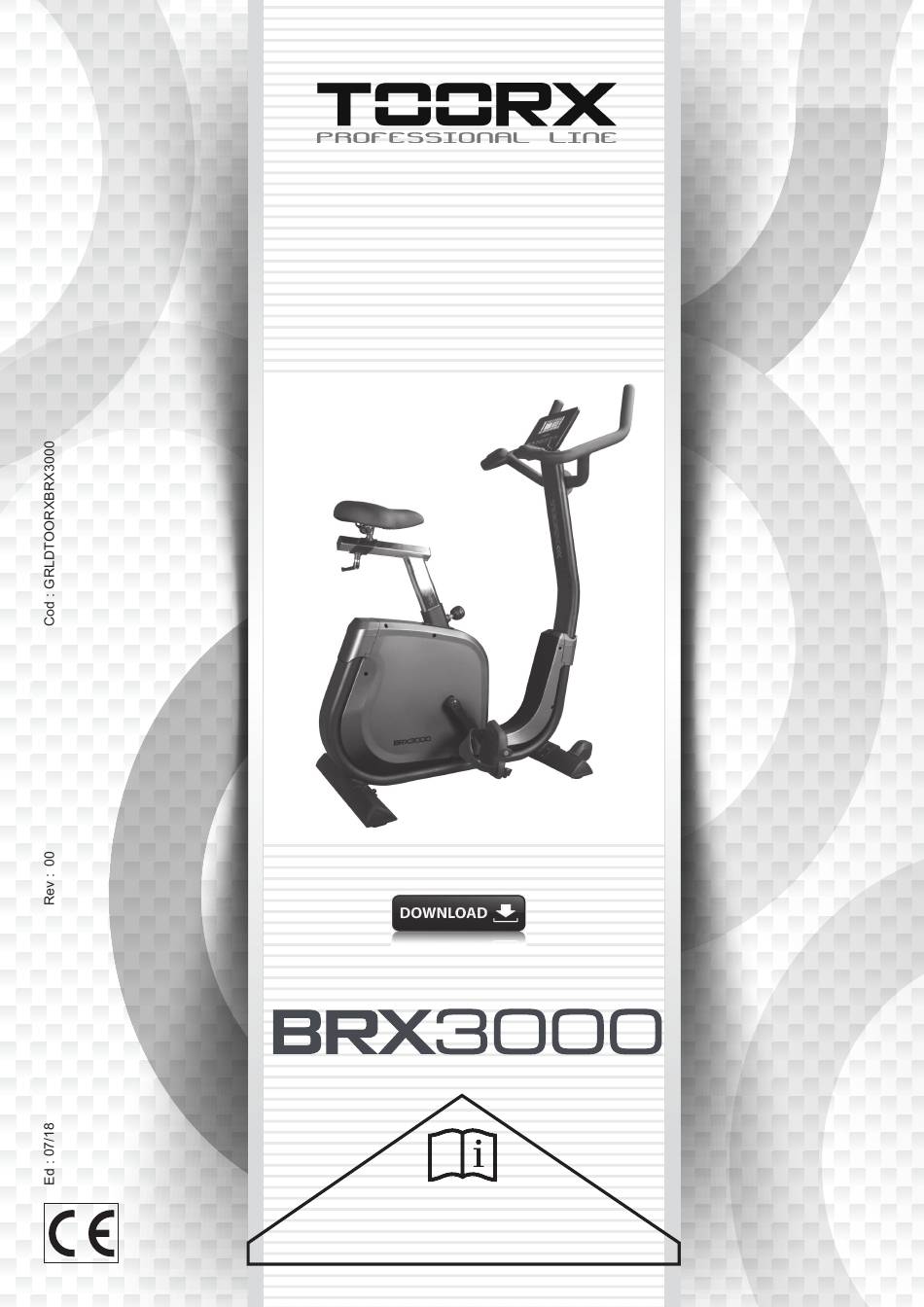

  • Page 1 INSTRUCTION iConsole App Manual www.toorx.it/iconsole...
  • Page 2 CHECK LIST (CONTENTS OF PACKAGE): 10 & &...

  • Page 3: Exploded Drawing

    Exploded drawing: 60 77 49 59 54 51 53 52 55 56 34 33 18 27 26...

  • Page 4: Part List

    Part List Part NO. Description Material Specification 　 　 Main frame Rear stabilizer Q195 95.4*50.6*2.0Tx500L Adjustable wheel Q235A+ABS D59*M10*40L 　 　 Front stabilizer Tri-angle cap(left) 95.7*57.2*51.3 Tri-angle cap(right) 95.7*57.2*51.3 Flat washer Q235A D16*D8.5*1.2T Spring washer D15.4 XD8.2x2T Allen bolt M8x1.25x20L,8.8 Seat 　...
  • Page 5 Right chain cover HIPS 534.7*502*82.7 Part NO. Description Material Specification Hex nut Q235A M6*1*6T Adjustable bolt Q235A M6*1.0*46 Round cycle for chain cover 117*58*9.3 　 EMS system D265*86 Allen bolt M8x1.25x50L,8.8 Flat washer Q235A D13*D6.5*1.0T Spring washer D10.5*D6.1*1.3T Allen screw M6*1.0*15L,8.8 Computer bracket 120*40*70...
  • Page 6 　 Sensor cable 450L Inner tube 40x80x129 Part NO. Description Material Specification Inner tube 40x80x129 Flat washer Q235A D24*D16*1.5T Round wheel PVC+PP D70.5*23 Bolt Q235A M5x0.8x12L Allen bolt Q235A M8*1.25*40L,8. 　 Adaptor Out put：26V,2.3A 　 Controller EMS2500-A01 Screw ST4.2x1.4x20L Q235A M8*1.25*8T D6*26.5*7.7 Screw...
  • Page 7 STEP 1 M8*20 D15.4 Step-1 1) Assemble the front stabilizer (4) and rear stabilizer (2) to the main frame (1) by using the flat washer (7), spring washer (8) and Allen bolt (9). 2) Adjust the proper height by turning the wheel of rear foot cap (3).
  • Page 8 STEP 2 (x1) M5*10L step-2 1) Fix the seat (10) to the seat adjustable tube (11). 2) Mount the adjusting tube on the seat post (66) with the help of the screw (16) and knob (15) 3) The seat can be adjusted up and down, frontward and backward as Fig a. and Fig b.
  • Page 9 STEP 3 M8*50 D15.4 step-3 1) Suggest assembling this step by two persons. 2) First, lift up the upper protective cover (28) like Fig a. Then connect the computer cable (72 & 73) like Fig b. 3) Insert the handlebar post (29) on the main frame and tighten it by using the flat washer (7), the spring washer (8) and the Allen bolt (30).
  • Page 10 STEP 4 M8*20 D15.4 M5*15 step-4 Assemble the handlebar (32) to the handlebar post (29) by using the flat washer (7), the spring washer (8), the Allen bolt (9).Then mount the protective cover (65) with the help of the bolt (20) as the 4-2 shown. See drawing a-b-c-d to make sure cables correctly assembly as the 4-1 shown.
  • Page 11 STEP 5 M5x15L 62 35 step-5 1) Connect the upper computer cable (72) and the handle pulse cable (68) with computer (17) and then assemble the computer (17) with the fixing plate for computer (61) and the handlebar post (29) by using the bolt (64) . 2) Mount the pedal (62 &...
  • Page 12 Step 6 step-6 1) Connect the adaptor (81) to the adaptor input on the rear of the bike.

  • Page 13: Button Function

    INSTRUCTION MANUAL 【BUTTON FUNCTION】 To make upward adjustment or increase training resistance. DOWN To make downward adjustment or decrease training resistance. ENTER To confirm all settings. START/ STOP To start or stop workout. RESET To reset current settings or press to have monitor switching to initial training mode for renew selection.

  • Page 14: Operating Procedure

    【OPERATING PROCEDURE】 (1) POWER ON – Plug in adaptor to power on console, system will have buzzer beeping as a cue. LCD will have all segments displaying for two seconds along with “78.0” (wheel diameter), “E” (EU), and “K” (KM) for one second. (2) USER PROFILE SET UP –...
  • Page 15 ▼ U-U Use UP (▲) and DOWN ( ) key for TIME, DISTANCE, CALORIES, and PULSE settings. Press “ENTER” each time when value’s determined. U-5 Press “START” and start pedaling. RPM & PULSE bars will display values accordingly. U-6 Press “STOP” to pause exercise and all exercise values will be saved. U-7 Press “RESET”...

  • Page 16: User Program

    (7) USER PROGRAM ▼ 7-1 Use UP (▲) and DOWN ( ) key to create user’s desired program, press “ENTER” when each chart value’s determined. 7-2 Press “ENTER” and hold for 2 seconds and skip to TIME setting. 7-3 Press “START” and user may start pedaling. (8) WATT 8-1 WATT default value 120 will be displayed in the alphanumeric column in flashing text waiting for an adjustment.
  • Page 17 (9) BODY FAT 9-1 This function is valid after user stops pedaling (or press “STOP”). 9-2 A continuous RPM signal input is required during BODY FAT test. 9-3 Press “BODY FAT”, console system will display “UX” for two seconds and start the body fat measurement process and will show results of FAT% and BMI on screen 8 seconds later.
  • Page 18 APP: 1.This console has been built in Bluetooth U.0 module for APP function. 2. Once console is connected to smart device via Bluetooth , the console will power off. Noted: 1. After U minutes without pedaling or pulse input, console will enter into power saving mode. Press any key may wake the console up.
  • Page 19 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy contact@toorxprofessional.it www.toorxprofessional.it...
