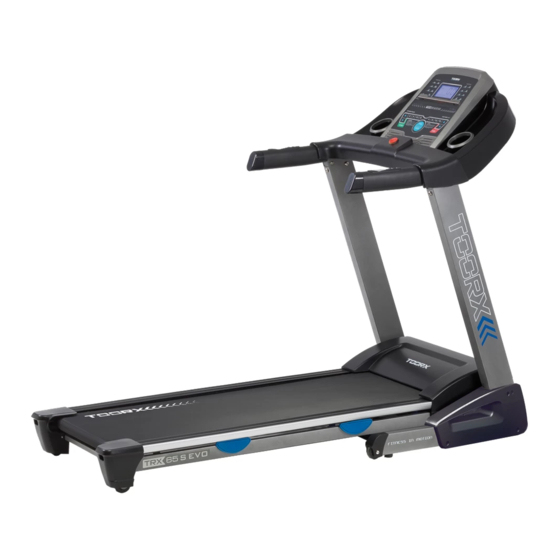

Summary of Contents for TOORX TRX 65 S

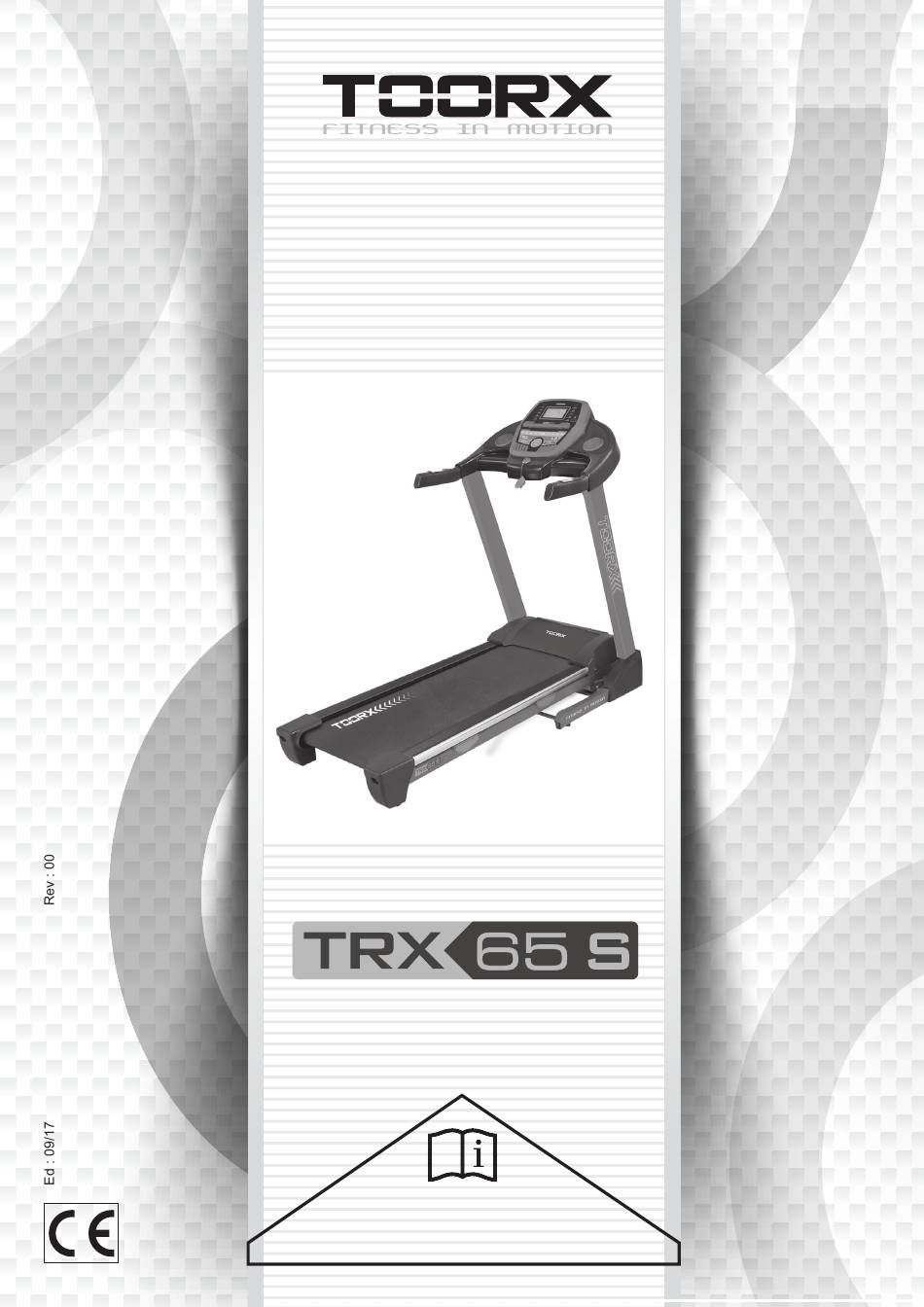

  • Page 1 INSTRUCTION APP READY...

  • Page 2: Product Overview

    The main technical parameters Working temperature: 0-40 ℃ Input supply voltage：220V Speed range: 1.0-16 KM/ H Incline range:16 level Motor incline Max. user weight: 130kg Distance display range: 0.00-99.9km Calories display range: 000-999 Time display range: 00： 00-99： 59 (min : sec) Heart rate range: 50-200 (time / min) Running surface: 480*1400mm Product size: 1820*750*1450mm...
  • Page 3 WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS: Main frame 1 set D2 Allen wrench 6mm 1 Round bolt C13 Safety key 1pc M8*15 2pcs D3 Allen wrench 5mm B18 Silicon oil 1 pc D1 Screw driver 1 pc D15 Round head hex bolt M8*40 4 pcs B11L Left side cover 1...
  • Page 4 STEP 1：According to the following steps to lift up the computer bracket. Be careful not press the line when folding. STEP 2：Secure bottom frame with Round head hex bolt M8*40 (D15) and the Inner washer M8 (D17). Then secure console frame with Round head hex bolt M8*15(D13） and Inner washer M8 (D17).
  • Page 5 STEP 3：Lock the L/R Side cover (B11l/R) with Cross self-tapping bolt ST4.2*19(D48). B11L B11R STEP 4: Put on the safety key (C13) Step 5: To check if the running belt runs correctly, placing treadmill in folding position and tightening all the bolts.
  • Page 6 This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • Page 7 1.1. WINDOW DISPLAY 1.2 START Normal start after 3 seconds countdown 1.3 PROGRAM 3 countdown function, 15 pre-set programs, 3 HRC mode, and 1 body fat program 1.4 SAFETY LOCK FUNCTION The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi" alarm noise.
  • Page 8 1.5.3 “MODE” BUTTON When the treadmill is not running, press this button to choose countdown modes:”H-1”,”H-2”,”H-3”. H-1” is the time countdown mode, and “H-2” is the distance countdown mode, “H-3” is the calorie countdown mode; press the “SPEED+/-” button to adjust the data. After that, press the “START”...

  • Page 9: Pulse Function

    SPEED: 0.8-14.0(km/h) PULSE: 50 – 200 (BPM) 1.7 PULSE FUNCTION When the treadmill is running, hold the hand pulse about 5 seconds, it will display pulse data. The pulse data range is 50-200 times/ minute. It has heart-shaped graphics when testing pulse. This data is only for reference, can not be as medical data.
  • Page 10 1.9 Manual model operation 1.9.1 Press start key, time count down 5 seconds, then treadmill will start to work with initial speed 1.0km/h 1.9.2 Press speed +/-, you can adjust the speed 1.9.3 Press stop, you can stop treadmill at working state 1.9.4 Press quick speed key, you can quickly adjust the speed you want 1.10 3 COUNTDOWN FUNCTION PARAMETER DATA Countdown time initial setting 30：00 minutes，setting range 5：00---99：00 minutes , each step 1：00.
  • Page 11 1.12 HRC Program There are 3 HRC programs (HRC1-HRC3) in total. The parameter data setting order is “AGE” -> “THR(HRC) data” -> “TIME”. HRC: Detect user’s actual heart rate through wireless receiver and set different the heart rate data as goal to adjust speed and incline during running.
  • Page 12 second, the SPEED will decrease 0.4KM/h and incline less1 section until they reach the min. data (5). If Target heart rate >=THR+15,then the speed and incline will adjust automatically every 15 second, the SPEED will decrease 0.8KM/h and incline less2 section until they reach the min. data 1.13 OTHERS 1.13.1 The system will enter into power saving mode automatically if there is no any action within 10 minutes under IDLE MODE and there is no display and backlit on the computer.

  • Page 14: Parts List

    A. Welding parts Description Description Main frame Incline frame Base frame Filter bracket Left upright tube Running board tube Right upright tube Motor bracket Handrail bracket Belt Guide B. Plastic parts Description Description Console set B16L Left end cap B1-1 Overlay B16R Right end cap...

  • Page 15: Hardware Parts

    Motor belt Inductor Power switch Filter Controller Single line (Black) 300 Left short keys speed sensor Right short keys Single cord(CE) Incline motor D. Hardware parts Description Description Screw driver Hex round head bolt M10*20 Allen wrench T6 Hex round head bolt M8*20 Allen wrench T5 Hex round head bolt M8*55 Round head hex bolt M10*65...
  • Page 16 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
