MANUALE D'ISTRUZIONI
UK
INSTRUCTION MANUAL
LDX 3 0 0 0
Istruzioni originali in lingua italiana.
Leggere il manuale con la massima attenzione prima
di assemblare e utilizzare il prodotto.
Translation of the original instruction.
Carefully read this instruction manual before assembling and using the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LDX 3000 and is the answer not in the manual?

Questions and answers

Tom Sieverding
January 17, 2025

Should the MULTIFUNCTIONAL LADDER LDX 3000 placed on the floor, or hang just above the floor?

1 comments:
Mr. Anderson
February 3, 2025

The TOORX LDX 3000 multifunctional ladder should be placed on a flat surface on the floor, ensuring the floor or carpet below it is covered to prevent damage.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for TOORX LDX 3000

  • Page 1 MANUALE D’ISTRUZIONI INSTRUCTION MANUAL LDX 3 0 0 0 Istruzioni originali in lingua italiana. Leggere il manuale con la massima attenzione prima di assemblare e utilizzare il prodotto. Translation of the original instruction. Carefully read this instruction manual before assembling and using the product.
  • Page 2: Avvertenze Di Sicurezza

    AVVERTENZE DI SICUREZZA SAFETY WARNINGS • Prima del montaggio e dell’impiego, leggere con la massi- • Before assembling, using and maintaining this product, ma attenzione questo manuale d’istruzioni e gli eventuali carefully read this instruction manual. altri fogli di istruzione allegati. •...
  • Page 3 AVVERTENZE DI SICUREZZA SAFETY WARNINGS • NON rovinare le sellerie dell’attrezzo con oggetti ap- • DO NOT ruin the equipment with pointed or sharp ob- puntiti, spazzole o spugne abrasive, o sostanze chimiche jects, brushes or abrasive sponges, or aggressive chemical aggressive.
  • Page 4: Dati Tecnici

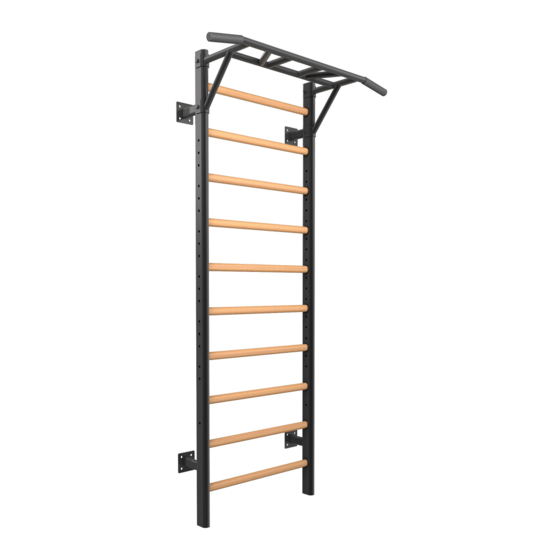

    DATI TECNICI TECHNICAL DATA SPALLIERA MULTIFUNZIONALE LDX 3000 MULTIFUNCTIONAL LADDER LDX 3000 DIMENSIONI : 1208 x 518 x 2330 mm DIMENSIONS : 1208 x 518 x 2330 mm STRUTTURA MONTATI acciaio a sezione ovale UPRIGHT STRUCTURE reinforced steel oval tube...
  • Page 5: Lista Componenti

    LISTA COMPONENTI PART LIST Montante laterale Piastra di fissaggio Side Upright Fixing plate Barra per trazioni Boccola Asta spalliera Barra di supporto Pull-up bar Bushing Gym espoiler rod Support bar...
  • Page 6: Hardware Kit

    KIT FERRAMENTA HARDWARE KIT Dado M10 Vite autofilettante M4 - L=70 mm Rondella M5 Bullone M10 - L=110 mm Rondella curva M12 Nut M10 Self-tapping screw M4 - L=70 mm Washer M5 Bolt - L=110 mm Curved washer M12 Rondella M14 Bullone M12 - L=70 mm Dado M8 Rondella curva M10...
  • Page 7: Assembly Steps

    FASI DI MONTAGGIO ASSEMBLY STEPS...
  • Page 8: Installazione

    INSTALLAZIONE INSTALLATION L’ancoraggio del prodotto alla parete deve essere eseguito tenendo conto dello specifico Fix the product to the wall materiale di supporto presen- taking into account the spe- te nella parete scelta per l’in- cific material the supporting stallazione. wall is made of.
  • Page 9 ACCESSORI SU RICHIESTA OPTIONAL COD. CFSLDX3000: COD. CFSLDX3000: COPPIA FERMI DI SICUREZZA BILANCIERE SAFETY SPOTTER ARMS - Spessore 4 mm. - Thickness 4 mm. - Lunghezza superficie d’appoggio 500 mm. - Surface length 500 mm. Dotati di protezioni e pin di sicurezza Ø16 Protection pads and Ø16 mm safety pin included.
  • Page 10 ACCESSORI SU RICHIESTA OPTIONAL COD.PANCA-LDX3-5: COD.PANCA-LDX3-5: PANCA BENCH - Dimensione 1346 x 666 x 857 mm (in - Dimensions 1346 x 666 x 857 mm (flat posizione piana). position). - Dimensione schienale 1230 x 300 x 50 - Backrest dimensions 1230 x 300 x 50 - Regolazione inclinazione su 3 livelli.
  • Page 11: Manutenzione

    MANUTENZIONE MAINTENANCE • NON utilizzare sostanze infiamma- • DO NOT use flammable or harmful bili o nocive per la pulizia. Non usare sub stances for cleaning. Do not use solventi per pulire le parti di plastica solvents to clean the plastic parts but ma soltanto prodotti a base di acqua e only water products and soft cloths.
  • Page 12: Parti Di Ricambio

    PARTI DI RICAMBIO SPARE PARTS Pos. Descrizione Q.tà Pos. Description Q.ty Rondella curva M12 Curved washer M12 Dado autobloccante M10 Selflocking Nut M10 Vite autofilettante M4x70 mm Cross tapping screw M4x70 mm Staffa di supporto Wall support bracket Rondella piana M5 Flat washer M5 Montante Upright...
  • Page 13 GARANZIA CONVENZIONALE ITALIA riparazione eseguita da centri assistenza non autorizzati da GARLANDO DURATA DELLA GARANZIA CONDIZIONI DELLA SUA SPA; VALIDITÀ E DECADENZE riparazione del prodotto da parte dell’utilizzatore stesso, tranne il caso GARLANDO SPA garantisce l’idoneità del Prodotto all’uso per il quale esso in cui l’operazione di riparazione/sostituzione parti è...
  • Page 14 Importato da: Imported by: GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
