Summary of Contents for TOORX TRX 9000 EVO TFT

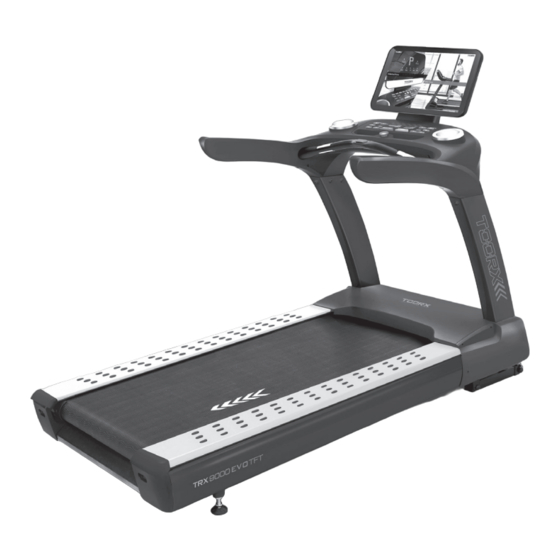

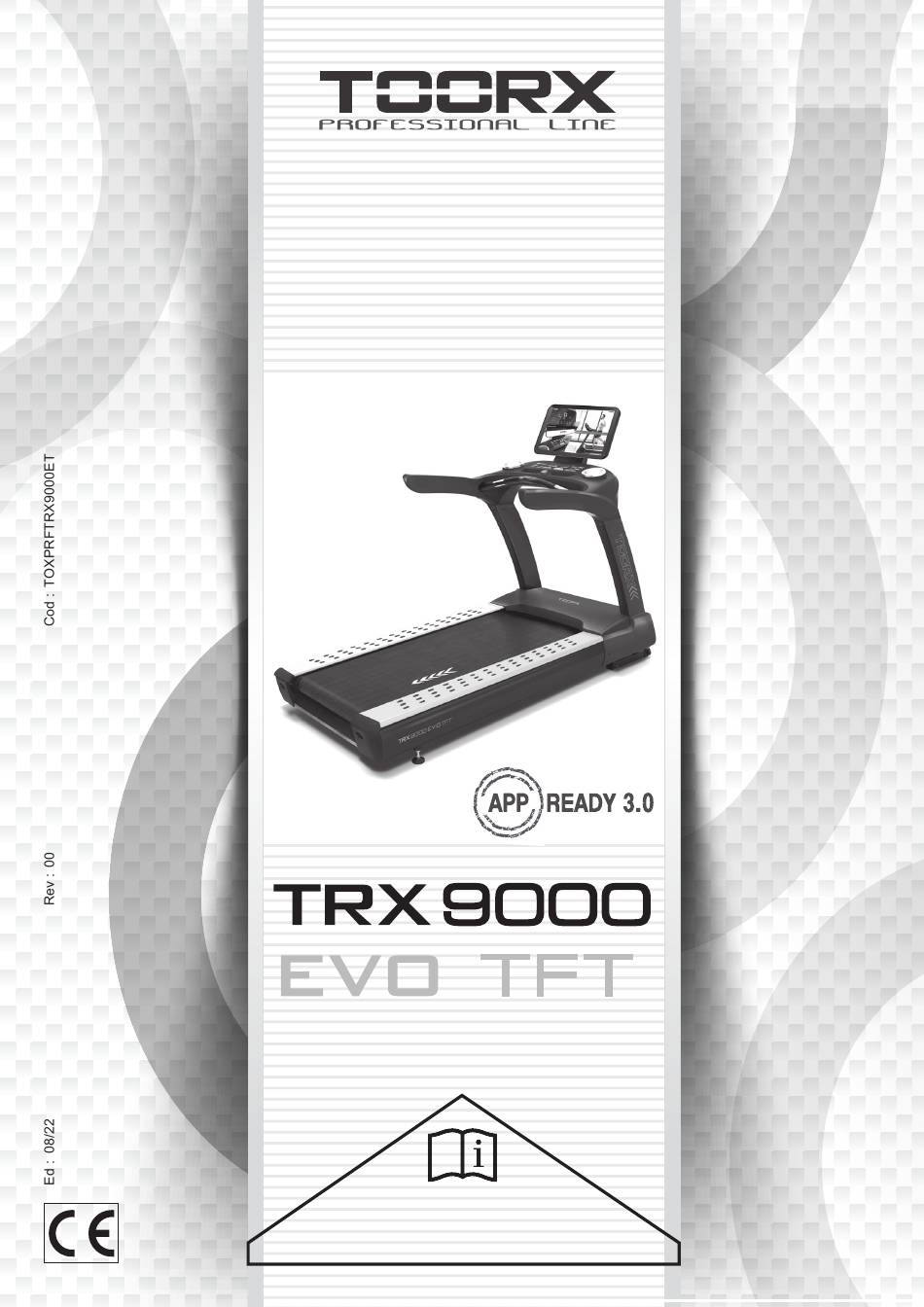

- Page 1 INSTRUCTION...
- Page 2 18. The equipment is suitable for commercial use. Maximum weight of user :180kg ： Warning Violation of the above safety regulations will cause personal injury and equipment damage. User’s guide Hardware and tool (A8)M10×20 (C2)φ10 (A4)M10×25 (B1)M10 (C5)φ10 halfround hex flat washer hex bolt nylon...
-
Page 3: Exploded Drawing
Exploded drawing... -
Page 4: Parts List
Parts list Description Description Base frame Signal wire A Switch base frame Signal wire B Incline frame Signal wire C Left upright tube Signal wire D Right upright tube Handlebar controlling panel Display screen Bolt M8X55 Bolt M10X95 Front roller Bolt M10X55 Rear roller Bolt M10X25... -
Page 5: Installation Instruction
Nut cap Wrench (s=8) Safety key/emergency button Lubricant bottle Note: Pls refer to the actual parts if there is difference with the ones in the list. Installation instruction WARNING: Don’t insert the power wire until the treadmill was fully installed. Tips: To eliminate installation errors, do not tighten all the bolts in each step. - Page 6 3.1 Connect the Signal wire from right upright tube to corresponding wires from frame. 3.2 Install the Right upright tube (5) to base frame (1) using four sets of bolt M10X25 (A4), Flat washersφ10 (C2) by side. (Attention: to align screw hole with the upper surface). Make sure the bolts to connect right upright tube and base frame.
-
Page 7: Adjustment Instruction
6. Installation of motor left/right cover 6.1 Tighten all the installation bolts 6.2 Install motor left cover (24) to top motor cover (23) of base frame (1) by 1pc of Crosshead self-lock bolt ST4X30 (A9) in front and 3pcs Crosshead self-lock bolt ST4X16 (A17) to tighten. - Page 8 1.1．Two feet stand on two side of belt, put the other side clip from safety key to clip to clothes. (see the figure) 2.Press Start key, the treadmill will start running at lowest speed. You can step on the belt and walk slowly.
- Page 9 mode to make sports entertainment more rich and interesting. Power on, turn on the main power switch of the treadmill, install the safety switch key then enter into the main menu as shown below Click the "Quick Start" on the screen or the " "...
- Page 10 Main interface in running state is shown as below: After starting the treadmill, press the speed adjustment button (+ -/ ) on the controlling panel or color screen to adjust your running speed. Press the incline adjustment key (+ -/ ) to adjust the comfortable running incline;...
- Page 11 the home page or the" "button on the controlling panel, and a window that is about to end running will pop up on the home page to provide" Keep onrunning "or" Stop ", as shown below: If you need to stop running in an emergency, please pull out the safety key or press the emergency stop button to stop the treadmill.
- Page 12 In the standby mode, you can choose the Quick start mode, Real mode, Target mode, Training mode and other sports programs to train, and you can also choose Multimedia for other operations. 2. Controlling panel instruction Wireless charging Speed up Incline up Speed down Incline down...
- Page 13 charging function, put the mobile phone in the charging slot, and the wireless charging can play. 2.2 Buttons in touch screen 2.2.1 Quick start: when the treadmill is powered on, click this button then the Treadmill starts to run. 2.2.2 Real mode:click this button to enter the real scene selection interface.
- Page 14 Display screen instruction 21.5” Touch sreen Audio input Wireless charging Bottle holder Bottle holder Controlling panel Right handpulse detection Safety key Left handpulse detection Emergency stop metal plate metal plate 4. Instruction of running programs and setting operation 4.1 Treadmill operation instruction Switch on the power, the treadmill enters the standby state, press “START”, the treadmill starts to run, you can choose the speed or incline button to adjust, press “STOP”...
- Page 15 4.3 Real mode Click "REAL MODE”on the screen, the treadmill enters the real scene selection interface with six built-in scenes, as shown below Users can choose their favorite real scene, click to enter the scene running. For example: the user chooses "Beach"...
- Page 16 Press the speed adjustment button (+ -/ ) on the controlling panel or screen to adjust the speed of running. Press the speed direct selection key (3-6-9) or fast selection key ( ) on the screen to quickly select the speed. Note: In the real running mode, there is no need to adjust the incline. The system will automatically set it according to the terrain changes in the real scene.
- Page 17 Cutom mode： Press the button to enter the setting interface. After setting, click "Start running" to run. As shown below 4.4.2 Time：Built-in 15/30/45/60/90/120/150/custom options. The setting time will gradually decrease as you run, then come to end when it reaches 0. Users can select their target time and click to enter the running interface.
- Page 18 Custom mode： Press "Custom" to enter the setting interface. After setting, click "Start running" to run. As shown below: 4.4.3 Calorie： Built-in for 100/200/300/400/500/1000/1500 / custom options. The setting calories will gradually decrease as you run, then come to end when it reaches 0. Users can select their target calorie and click to enter the running interface.
- Page 19 Custom mode： Press "Custom" to enter the setting interface. After setting, click "Start running" to run. As shown below: 4.5 Training mode Click “Training mode” to enter the selection interface, as shown below:...
- Page 20 In the training mode, the system provides a variety of preset training plans of Relax, Cardio, 4.5.1 Fat burning and Endurance for different running styles to help train stretching. Different running modes have different incline and paces, so users can concentrate on running without worrying about various Settings.
- Page 21 5. Multimedia Click “Multimedia” to enter application selection interface , as shown below: Because the software is constantly updated and iterated, if the actual interface is inconsistent *Remark: with that in this instructiont, the actual interface prevails, this document is for reference only. Heat rate test ◆...
- Page 22 is only for the reference of sports and fitness. Warning: Heart rate monitoring system may be inaccurate. Excessive exercise can result in serious injury or death. Stop exercising immediately if you feel faint. Interface instruction ◆ 1. Audio input When walking, you can wear headphones and plug the earphone into the audio port to listen to the voice on the headphones.
- Page 23 Maintennance and malfunction treatment 1．Clean: The surface of the treadmill should be kept clean, pull out the power cord before cleaning. You can clean the running belt and the surface of the treadmill with a soft and wet cloth, be sure not to use strong solvents.
- Page 24 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
