Summary of Contents for TOORX MSX-300

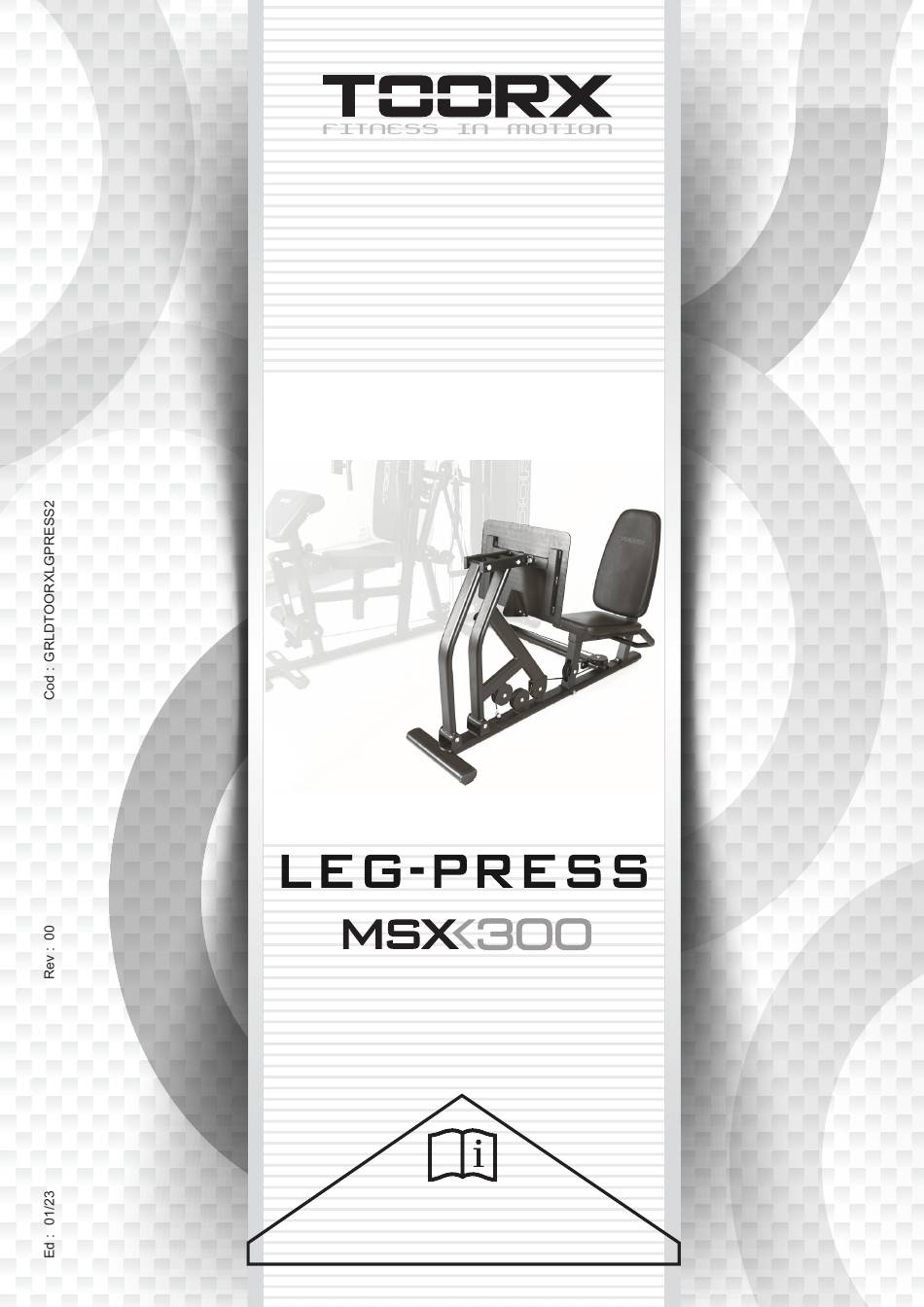

- Page 1 INSTRUCTION...
- Page 2 STEP 1: Attach the Backrest Upright Frame (117) and one Bracket 45X120mm(128) to the Leg Press Base Frame (116), using two Carriage Bolts M10×60mm (148), two Washers M10 (159), and two Nylon Locknuts M10(162). Attach the Base Connect Frame (127) to the Leg Press Base Frame (116), using two Carriage Bolts M10×20mm (150), two Washers M10 (159), and two Nylon Locknuts M10(162).
- Page 3 M10×45mm (154), two Washers M10 (159) and one Nylon Locknut M10 (162). Attach the other end of Leg Press Cable (132) to the Leg Press Base Frame (116) , using one Allen Bolt M10×28mm(155),two Washers M10 (159) and one Nylon Locknut M10 (162). STEP 5: Attach the Base Connect Frame (127) to the Base Frame of HOME GYM, using two Carriage Bolts M10×20mm(150), two M10 Washers (159) and two Nylon Locknuts M10 (162).
- Page 4 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
