Summary of Contents for TOORX MSX-300

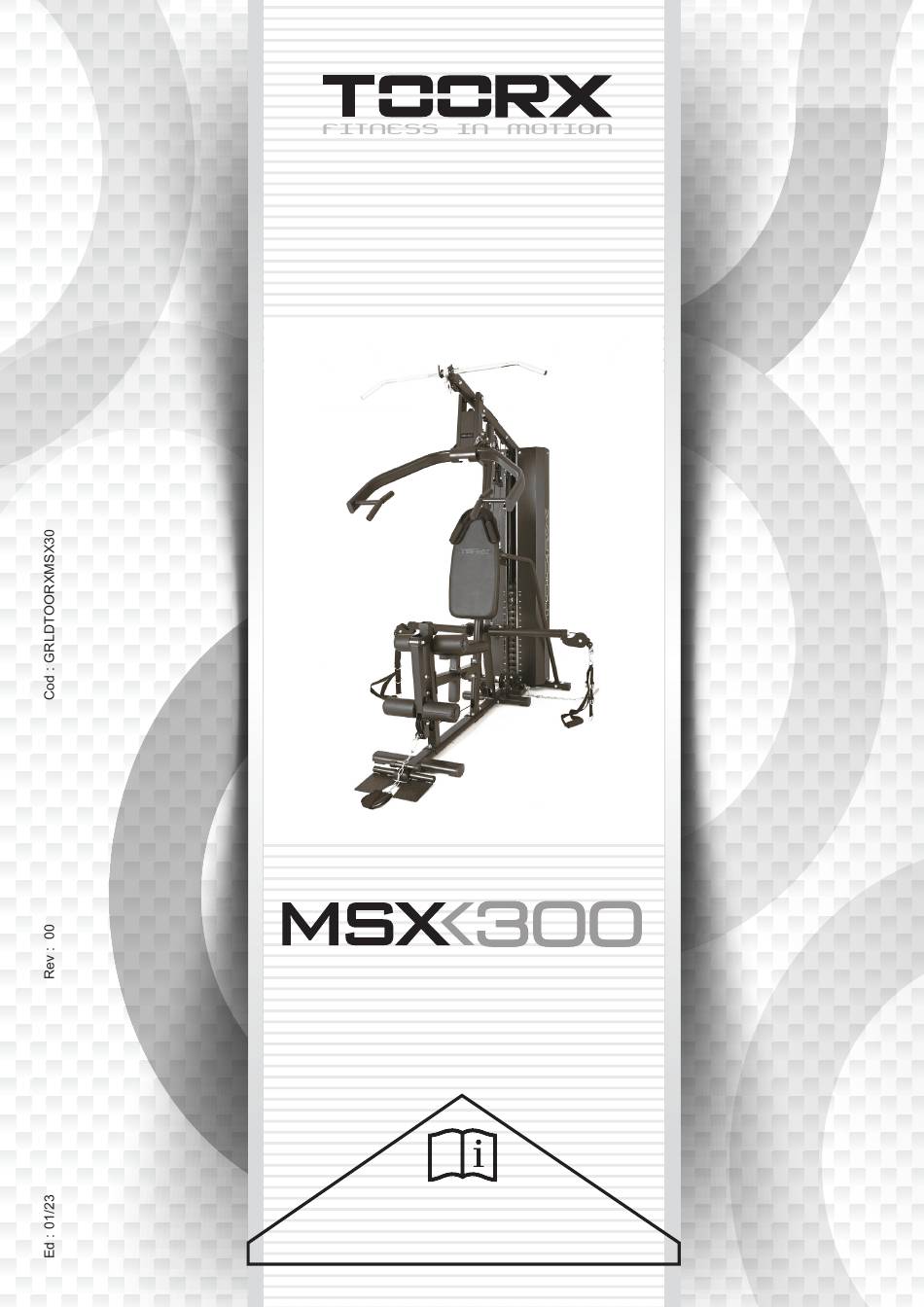

- Page 1 INSTRUCTION...
- Page 2 STEP 1: Insert two Guide Rods (14) into the Rear Stabilizer (2), using two Allen Bolts M10×25mm (104) and two Washers M10 (109). Attach the Base Frame(8) and Arc Brackets(28) to the Rear Stabilizer(2), using two Carriage Bolts M10×100mm (91), two Washers M10 (109) and two Nylon Locknuts M10(113). Attach the Support Frame(3) and U-shaped Brackets(30) to the Base Frame(8), using four Carriage Bolts M10×60mm (94), four Washers M10 (109) and four Nylon Locknuts M10 (113).
- Page 3 STEP 5: Attach the Front Press Base(12) to the Upper Frame (4), using one Ø16×172×M10 Axle(31),two Washers Ø25× Ø10 (108) and two Nylon Nuts M10 (113). Attach the Front Press Frame (6) to the Front Press Base(12), using one Ø16×198×M10 Axle(32), two Washers Ø25×...
- Page 4 g) Install Large Pulley NO.7 (63) to Support Frame (3), using one Allen Bolt M10×50mm (102), two Cable Retainers (65), two Cable Retainer Bushings (66), two Washers M10 (109), and one Nylon Locknut M10 (113). h) Install Large Pulley NO.8 (63) to Double Pulley Bracket (24), using one Allen Bolt M10×50mm (102), two Cable Retainers (65), two Cable Retainer Bushings (66), two Washers M10 (109), and one Nylon Locknut M10 (113).
- Page 5 j ) Install Middle Pulley NO.21 (62) to the Cable Crossover Support (11), using one Allen bolt M10×50mm (102), two Washers M10 (109), and one Nylon Locknut M10 (113). k) Install Small Pulley NO.22 (61) to the Right Cable Crossover Arm (19), using one Allen bolt M10×50mm (102),two Washers M10 (109), and one Nylon Locknut M10 (113).
- Page 9 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
