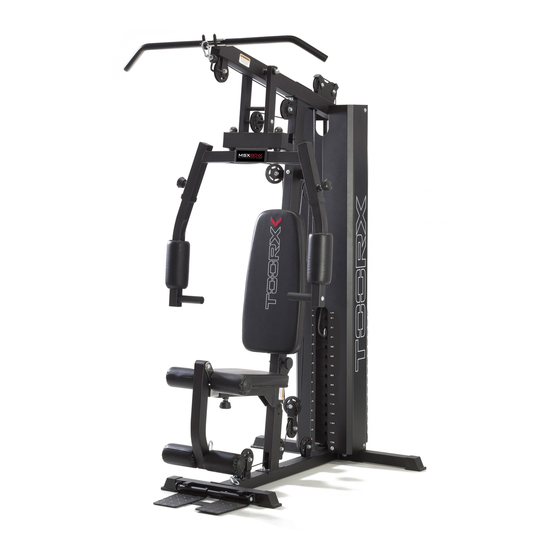

TOORX MSX 60 Instruction

Hide thumbs Also See for MSX 60:

Advertisement

Quick Links

INSTRUCTION

Advertisement

loading
Need help?

Need help?

Do you have a question about the MSX 60 and is the answer not in the manual?

Questions and answers

Related Manuals for TOORX MSX 60

Summary of Contents for TOORX MSX 60

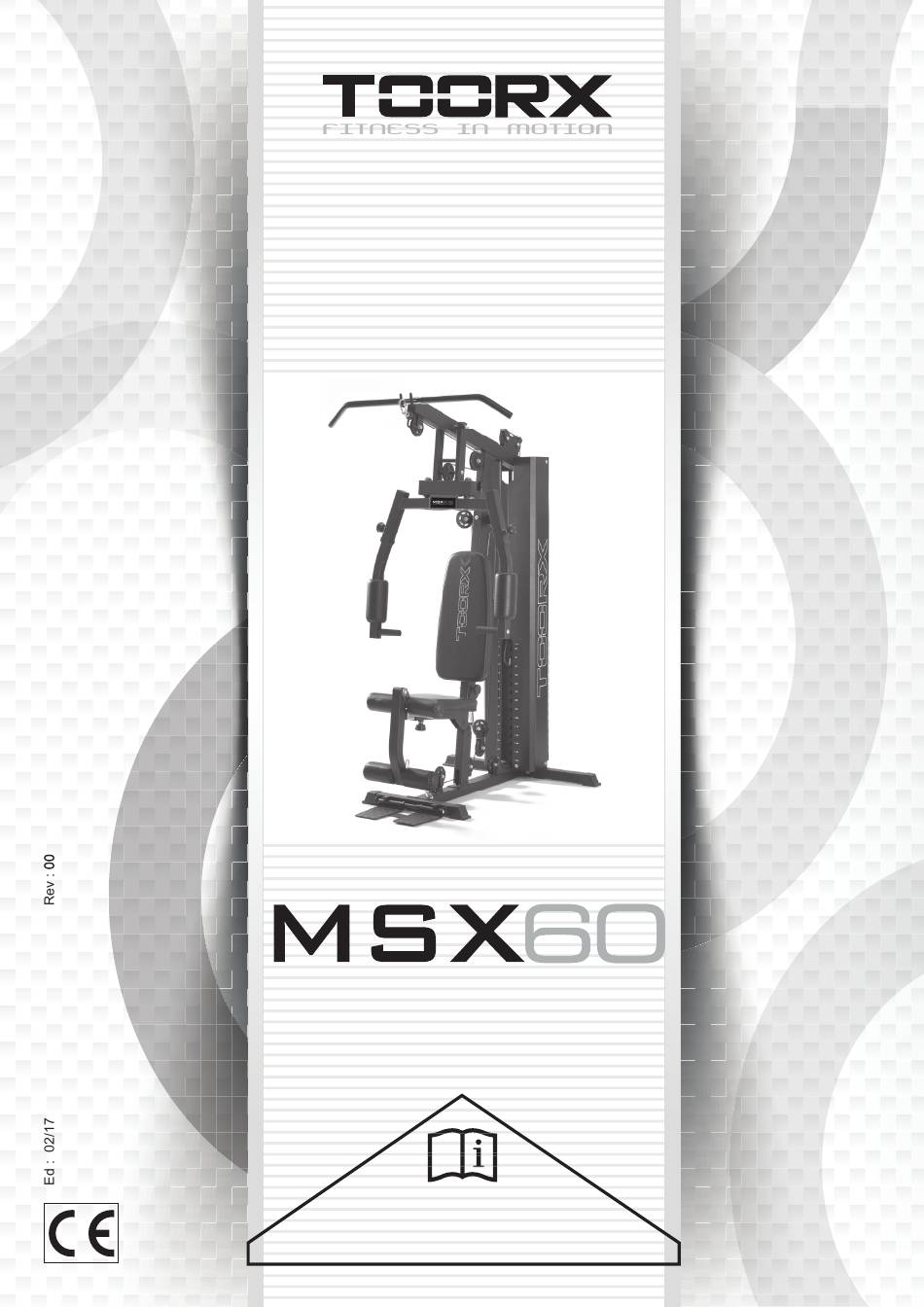

  • Page 1 INSTRUCTION...

  • Page 2: Table Of Contents

    Contents Safety Information Components - Parts Components – Fixings Assembly Instructions 8-24 Resistance chart Home Gym Exercise Guide Home Gym Exercise Guide 26-28 Exercising Information 29-32 Before starting to exercise Muscle chart Warming up and cooling down 31-32 Exercises Care and Maintenance Free area and training area Exploded Parts List 35-38...

  • Page 3: Components - Parts

    MUST read all instructions before using any fitness equipment. Argos assumes no responsibility for Components - Parts personal injury or property damage sustained by or through the use of this product. Please check you have all parts listed below Note: Some of the smaller components may be pre-fitted to larger components.
  • Page 4 Components - Parts Please check you have all parts listed below Note: Some of the smaller components may be pre-fitted to larger components. Please check carefully before contacting us regarding any missing components.
  • Page 5 Components - Parts Please check you have all parts listed below...

  • Page 6: Components - Fixings

    Components - Fixings Please check you have all fixings listed below Note: Some of the smaller components may be pre-fitted to the larger components. Please check carefully before contacting us regarding any missing components. Please prepare an adjustable spanner by yourself when you are intend to assemble this machine.
  • Page 7 Components - Fixings Please check you have all fixings listed below...

  • Page 8: Assembly Instructions

    Assembly instructions Step 1 (A) Insert the 2pcs guide rods (20) into the holes of the rear stabilizer (2) separately . and Secure them with 2 pcs Ø10mm Washers (67) and 2 pcs M10 x 25mm Allen Bolts (58) . Slide the 2pcs rubber bumpers (101) along the 2 pcs guide rods from the top to the bottom.
  • Page 9 Assembly instructions Step 2 Attach the front vertical frame (3) onto the main base frame(8) , carefully align the holes and secure them with 2 pcs M10×70 carriage bolts(64), one pc bracket (25),2pcs 2pcs Ø10 washers (67) and 2 pcs M10 Aircraft nuts (69).
  • Page 10 Assembly instructions Make sure that all the grooves face front and backwards. Step 3 Slide the 14pcs weight plate(37) along the guide rods (20) from the top to the bottom.insert the selector rod (13) into the hole of weight plates. and then place the last weight plate onto the selector rod (19) Make sure that all the grooves face front and backwards.
  • Page 11 Assembly instructions Step 4 Place the upper frame (4) onto the front vertical frame (3) and 2 pcs guide rods, Carefully align the holes and secure them with 2pcs M10*25 Allen bolt (58), 2pcs Ø10 washers (67). 2pcs M10*90 Crriage bolts(63), one pc bracket(25), 2pcsØ10 washers (67) and 2pcs M10 aircraft nuts(69).
  • Page 12 Assembly instructions Step 5 (A). Attach the front press base (11) to the upper frame (4), Secure them with one pc Ø16*M10*206 axle(41), 2pcs Ø10 washers (67) and 2pcs M10 aircraft nuts (69). (B) Attach the upper right butterfly frame(6) through the hole of the front press base(11) as the diagram shows and secure them with M18 Lock ring(76), 1 pc Ø10 washer (67), 1pc M10 X16 Allen bolt (59).Insert the lower right butterfly frame(29) into the opening of upper right butterfly frame(6) and adjust it with one pc Lock knob (39) and one pc M10*18 Allen bolt (62).Push one pc foam roll(51) from the...
  • Page 13 Assembly instructions Step 6 (A) Attach the sest pad support (1) to the front vertical frame(3) with one pc L shape lock pin(47) and one pc M10X85 Lock knob(46). (B) Insert the leg developer holder (24) into the front opening of seat pad support (1).You would select the desired position with Lock knob (39).
  • Page 14 Assembly instructions...
  • Page 15 Step 7 (A) Attach the upper cable (31) through the first bracket and make sure that the ball stopper should be underneath the upper frame(4). Place one pc pulley (52) below the cable and secure the pulley with one pc M10*45 allen bolt (57) , 2 pcs Ø 10 washers (67) and one pc M10 aircraft nut (69). (B) Draw the cable backwards and place one pc pulley as the diagram shows, secure the pulley with 2 pcs cable retainers(102) , 2pcs cable retainer bushings(103)with one pc M10*50 allen bolt (61) , 2 pcs Ø...
  • Page 16 Assembly instructions...
  • Page 17 Assembly instructions Step 8 (A). Attach one end of the butterfly cable (33) to the post of the upper right butterfly frame (6), Draw the cable backwards and place one pc pulley below the cable. secure the pulley,2 pcs cable retainer(102) , 2pcs cable retainer bushing(103) with the swivel pulley bracket (18) together with one pc M10*50 allen bolt (61) , 2 pcs Ø...
  • Page 18 Assembly instructions...
  • Page 19 Step 9 (A) Draw the lower cable (32) through the first bracket,make sure that the ball stopper should be in front of the bracket. Place one pc pulley onto the lower cable, Secure the pulley , one pc cable retainer(102) , one pc cable retainer bushing(103) with one pc M10*50 allen bolt(61), 2 pcs Ø10 washers (67) and one pc M10 aircraft nut(69) .
  • Page 20 Assembly instructions...
  • Page 21 Step 10 (A) Attach the backrest pad (35) to front vertical frame (3) , Carefully align the holes and secure them with 2 pcs M8*85 allen bolt(60) and 2 pcs Ø8 washers (68) . (B) Place the seat pad (34) onto the seat pad support (1), Sucure them with 4pcs Ø8 washers(68) and 4pcs M8*18 allen bolt (62).
  • Page 22 Assembly instructions Step 11 (A) Attach the 2pcs left &right weight stack covers (21,22) onto the rear stabilizer separately and secure them with 6pcs M10X16 Allen bolt (59) , 6 pcs Ø10 washer(67) . (B) Connect the left and right weight stack cover together with 4pcs M5*10 Allen bolts(66)and 4 pcs M5 aircraft nuts(72) as the diagram shows.
  • Page 23 Assembly instructions...
  • Page 24 Step 12 Connect the leg developer (7#) to the end of the lower cable with 1pcs gourd hooks(45) ,one pc 8-joint chain(44),one pc M10*28 Allen bolt, 2pcs Ø10 washers(67) and one pc M10 Aircraft nut(69) Assembly instructions Step 13...
  • Page 25 Fold the seat pad support as the diagram shows, you must fix the leg developer them as the diagram shows with 2pcs gourd hook(45) and one pc 8-joint chain(44) for safety ,Connect the shiver bar (23) or single strap(43) or angle strap(42) to the lower cable to do the desired exercise Assembly instructions Step 14 The Lock is set at the manufacturer to the open at 0-0-0 (all zeros are positioned in the middle).

  • Page 26: Resistance Chart

    Resistance chart...

  • Page 27: Free Area And Training Area

    Free area and training area The free area should be no less than 0.6m greater than the training area in the directions from which the equipment is accessed. The free area must also include the area for emergency dismount. Where equipment is positioned adjacent to each other the value of the free area may be shared.

  • Page 28: Exploded Parts List

    Exploded Parts List Part Description Qty. Part Description Qty.
  • Page 29 Seat pad support Right weight cover Rear stabilizer Foam roll tube Front vertical frame Leg developer holder Upper frame 140X50 bracket Upper left butterfly frame bracket upper right butterfly frame Foot plate Leg developer Foot plate tube Main base frame Right &...
  • Page 30 8 Joint chain Ø10 washer 7# gourd hook Ø8 washer M10*85 lock knob M10 Aircraft nut L shape pin Pull bar 口 50 rubber bumper Ø12 washer Foam roll end cap M5 Aircraft nut Foam roll M10 Aircraft nut cover Butterfly foam roll Single strap pulley...
  • Page 31 Ø50* Ø16*25 Plastic bushing Rubber bumper Ø29*20*81 bushing 50*170 anti slip Ø25* Ø22* Ø16*10 bushing Ø25* Ø22* Ø16*10 bushing Ø32* Ø20 *25 bushing 13*26*1.5 End cap M6X16 philips screw Ø25*1.5 end cap Rubber bumper Cable retainer Cable retainer bushing...
  • Page 32 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
