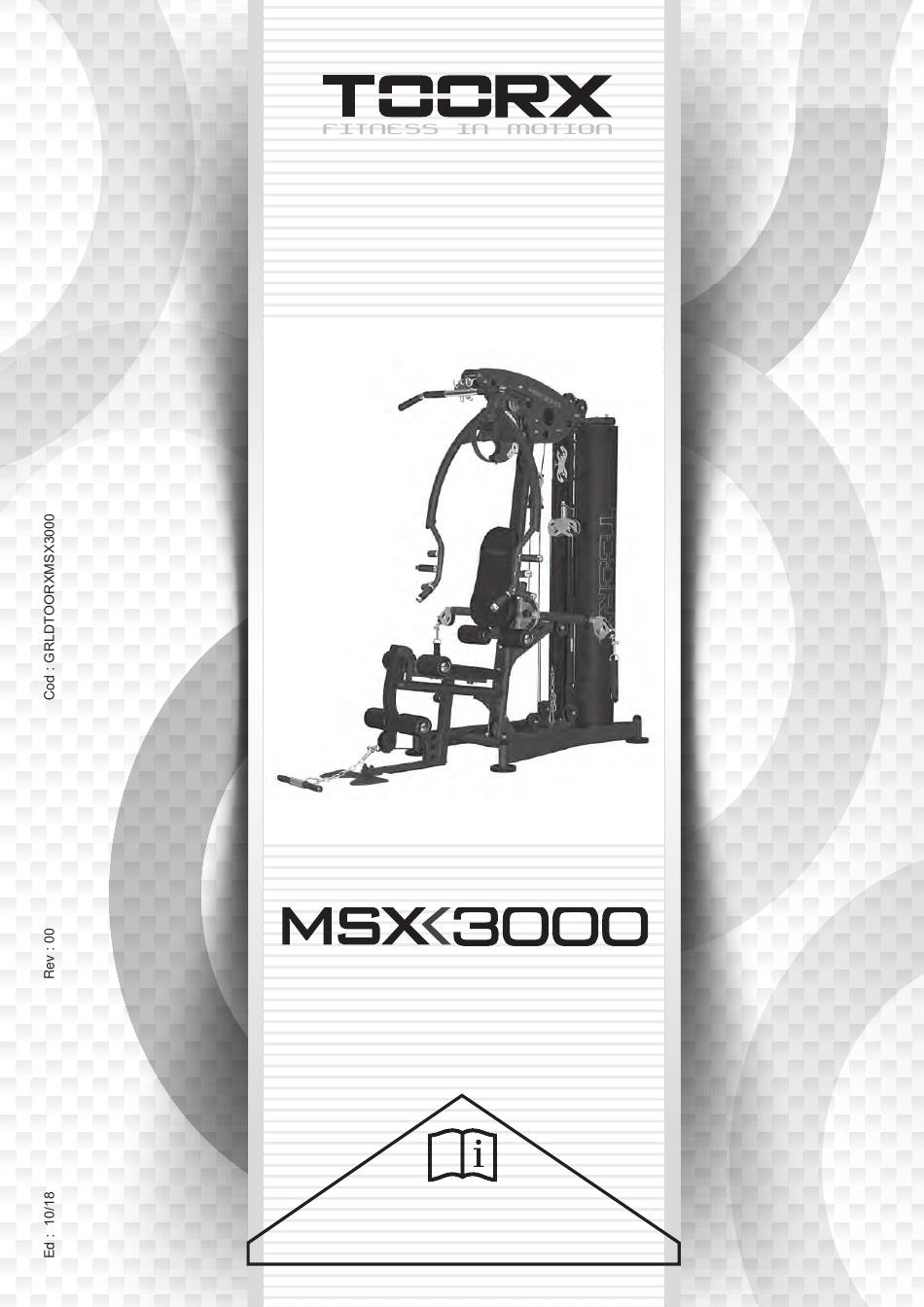

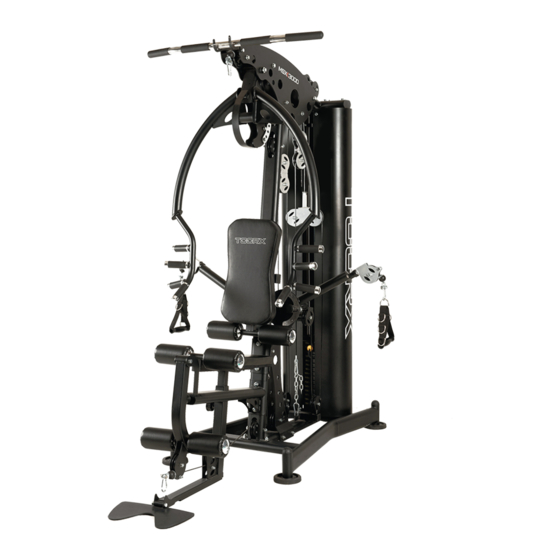

- Page 1 INSTRUCTION...
-
Page 2: Table Of Contents
Table of Contents Spare parts list ....................... 3 Spare parts list ....................... 4 Spare parts list ....................... 5 Spare parts drawing ....................... 6 Fasteners drawing ......................7 Assembly step（1） ....................8-9 Assembly step（2） ....................10-11 Assembly step（3） ....................12-13 Assembly step（4） ....................14-15 Assembly step（5）... -
Page 3: Spare Parts List
Spare parts list Description Note Qty. ground frame guide rod Φ25*1853 back support rod Φ259*1757.5 hexagon bolt M10*65 washer Φ10 hexagon bolt M10*20 spring washer Φ10 rubber cushion Φ60*Φ26*42 counter weight rubber cushion Φ60*Φ26*20 hexagon socket button head bolt M8*70 lock nut selector rod 92 KG... -
Page 4: Spare Parts List
Spare parts list Description Note Qty. leg curl elbow tube big washer Φ25*10*2.0 hexagon bolt M8*16 pull pin Φ12 shaft Φ17*134 shaft Φ17*100 front push holder guard plate front push arm hexagon bolt M10*70 hexagon socket button head bolt M10*16 right butterfly arm left butterfly arm pulley support frame... -
Page 5: Spare Parts List
Spare parts list Description Note Qty. powder metallurgy sleeve Φ10 left support plate right support plate low pull cable L=3365mm short bar spring washer Φ8 hexagon bolt M8x40 back cushion adjustment frame back cushion seat cushion hexagon socket button head bolt M8x25 sponge inner cap sponge outer cap... -
Page 6: Spare Parts Drawing
Spare parts drawing... -
Page 7: Fasteners Drawing
Cable drawing Fasteners drawing Bolt length measurement ruler... -
Page 8: Assembly Step（1
Assembly step（1）explosion drawing No. Description Note Qty. ground frame guide rod Φ25*1853 back support rod Φ259*1757.5 hexagon bolt M10*65 washer Φ10 hexagon bolt M10*20 spring washer Φ10 rubber cushion Φ60*Φ26*42... - Page 9 Assembly step（1）drawing Assembly step（1）assembly instruction 1. Fix back support rod(3) on ground frame(1) using: M10*65 hexagon bolt(4),Ф10 spring washer(7),Ф10 washer(5) 2. Fix guide rod(2) on ground frame(1) using: M10*20 hexagon bolt(6),Ф10 spring washer(7),Ф10 washer(5) 3. Put rubber damper(8) on guide rod(2) CAUTION: All bolts should be tightening.
-
Page 10: Assembly Step（2
Assembly step（2）explosion drawing No. Description Note Qty. counter weight rubber Φ60*Φ26*20 cushion hexagon socket button M8*70 head bolt lock nut selector rod 92 KG counter weight 6 KG topmost counter weight 8 KG washer Φ8 weight pin Φ10*100 Topmost counter weight (14) Partial enlarged drawing... -
Page 11: Assembly Step（2
Assembly step（2）drawing Assembly step（2）assembly instruction 1. From guide rod top in turn put 14pcs counter weight(13), topmost counter weight(14); among put topmost counter weight(14) on the top 2. Remove the bolt from the topmost counter weight(14),then lower the selector rod(12) into counter weights central, final install the bolt back to topmost counter weight(12) 3. -
Page 12: Assembly Step（3
Assembly step（3）explosion drawing No. Description Note Qty. lock pin pull pin Φ10 hexagon bolt M12*70 washer Φ12 lock nut front frame... -
Page 13: Assembly Step（3
Assembly step（3）drawing Assembly step（3）assembly instruction 1. Fix front frame(22) on ground frame(1) using: M12*70 hexagon bolt(19), Ф12washer(20), M12 lock nut(21) 2. Put lock pin(17) on front frame(22) 3. Put pull pin(18) on front frame(22) CAUTION: All bolts should be tightening. -
Page 14: Assembly Step（4
Assembly step（4）explosion drawing No. Description Note Qty. hexagon bolt M10*65 washer Φ10 hexagon bolt M10*20 spring washer Φ10 hexagon bolt M12*70 washer Φ12 lock nut lock nut shield support frame upper frame... -
Page 15: Assembly Step（4
Assembly step（4）drawing Assembly step（4）assembly instruction 1. Fix shield support frame(24) and guide rod 2. Fix upper frame (25) fastening with guide rod using: M10*20 hexagon bolt(6),Ф10 spring washer(7),Ф10 washer(5) 3. Fix upper frame (25) fastening on front frame using: M12*70 hexagon bolt(19),Ф12 washer(20),M12 lock nut(21) 4. -
Page 16: Assembly Step（5
Assembly step（5）explosion drawing No. Description Note Qty. washer Φ12 lock nut hexagon bolt M12*130 right cover left cover... -
Page 17: Assembly Step（5
Assembly step（5）drawing Assembly step（5）assembly instruction Fix right cover(27) and left cover(28) on upper frame using: M12*130 hexagon bolt(26) Ф12 washer(20) M12 lock nut(21) CAUTION: All bolts should be tightening. -
Page 18: Assembly Step（6
Assembly step（6）explosion drawing No. Description Note Qty. washer Φ10 spring washer Φ10 pull pin Φ10 washer Φ12 lock nut hexagon bolt M12*75 hexagon bolt M10*25 axis of rotation Φ17*57 seat cushion adjust frame seat cushion tube leg curl elbow tube... -
Page 19: Assembly Step（6
Assembly step（6）drawing Assembly step（6）assembly instruction 1. Fix seat cushion tube(33) fastening on front frame using: M12*75 hexagon bolt(29),Ф12 washer(20),M12 lock nut(21) 2. Fix leg curl elbow tube(34) on seat cushion tube(33) using: axis of rotation(31),M10*25 hexagon bolt(30),Ф10 spring washer(7),Ф10 washer(5) 3. -
Page 20: Assembly Step（7
Assembly step（7）explosion drawing No. Description Note Qty. hexagon bolt M10*20 spring washer Φ10 washer Φ8 big washer Φ25*10*2.0 hexagon bolt M8*16 pull pin Φ12 shaft Φ17*134 shaft Φ17*100 front push holder guard plate front push arm 39 40... -
Page 21: Assembly Step（7
Assembly step（7）drawing Assembly step（7）assembly instruction 1. Fix front push holder(40) on left cover & right cover using: shaft(38),M10*20 hexagon bolt(6),Ф10 spring washer(7),Ф10 big washer(35) 2. Fix front push arm(42) and front push holder(40) using: shaft(39),M10*20 hexagon bolt(6),Ф10 big washer(35),pull pin(37) 3. -
Page 22: Assembly Step（8
Assembly step（8）explosion drawing No. Description Note Qty. washer Φ10 spring washer Φ10 lock nut washer Φ12 lock nut hexagon bolt M12*75 big washer Φ25*10*2.0 hexagon bolt M10*70 hexagon socket button M10*16 head bolt right butterfly arm left butterfly arm pulley support frame reinforcing plate footplate... -
Page 23: Assembly Step（8
Assembly step（8）drawing Assembly step（8）assembly instruction 1. Fix left butterfly arm(46) on front frame using: M10*16 hexagon socket button head bolt(44),Ф10 spring washer(7),Ф10 big washer(35) 2. Fix right butterfly arm(45) on front frame using: M10*16 hexagon socket button head bolt(44) Ф10 spring washer(7), Ф10 big washer(35) 3. -
Page 24: Assembly Step（9
Assembly step（9）explosion drawing No. Description Note Qty. washer Φ10 lock nut hexagon bolt M10*130 hexagon bolt M10*115 hexagon bolt M10*45 hexagon socket button M10*45 head bolt “-” shape pulley frame pulley Φ95*26 connecting sleeve Φ14*100 pulley spacer Φ22*Φ10.5*45.5 lat pull cable L:4540mm... - Page 25 Assembly step（9）cable drawing Lat pull cable end Lat pull cable drawing...
-
Page 26: Assembly Step（9
Assembly step（9）drawing Assembly step（9）assembly instruction 1. Fix 4pcs pulley(55) fastening on pint: A ,B,C,E using: M10*45 hexagon bolt(52),Ф10 washer(5),M10 lock nut(23) 2. Fix 2pcs pulley(55) fastening on pint: I,D using: M10*130 hexagon bolt(50),pulley spacer(57),Ф10 washer(5),M10 lock nut(23) 3. Fix pulley(55) fastening on pint G using: M10*130 hexagon bolt(50),Ф10 washer(5),M10 lock nut(23) 4. -
Page 27: Assembly Step（10
Assembly step（10）explosion drawing No. Description Note Qty. washer Φ10 washer Φ12 lock nut hexagon bolt M10*45 pulley Φ95*26 cable hook 9 link chain & snap hook double pulley plate middle cable L:1500mm... -
Page 28: Assembly Step（10
Assembly step（10）drawing Middle cable end Assembly step（10）assembly instruction 1. Connect 9 link chain & snap hook(60) with middle cable(62) 9 link chain & snap hook(60) other end connect with ground frame 2. Middle cable(62) through Ф12 washer(20) cable hook(59) connect with double pulley plate(61) 3. -
Page 29: Assembly Step（11
Assembly step（11）explosion drawing... - Page 30 Assembly step（11）cable drawing Butterfly arm cable drawing No. Description Note Qty. washer Φ10 lock nut washer Φ8 lock nut hexagon bolt M10*45 pulley Φ95*26 hexagon bolt M8*45 butterfly arm cable L:5375mm...
-
Page 31: Assembly Step（11
Assembly step（11）drawing Assembly step（11）assembly instruction 1. Fix 8pcs pulley(55) fastening on pint: K,L,N,O,P,Q,R,S,T using: M10*45 hexagon bolt(52),Ф10 washer(5),M10 lock nut(23) 2. Fix 2pcs pulley(55) fastening on pint: M,R using: M10*45 hexagon bolt(52),Ф10 washer(5) 3. Take butterfly arm cable(64) end equipped ball head down 4. -
Page 32: Assembly Step（12
Assembly step（12）explosion drawing No. Description Note Qty. washer Φ10 lock nut washer Φ8 lock nut hexagon bolt M10*130 hexagon bolt M10*115 hexagon bolt M10*45 pulley Φ95*26 hexagon bolt M8*45 hexagon bolt M10*75 hexagon bolt M10*85 powder metallurgy Φ10 sleeve left support plate right support plate 162 hexagon bolt M10*40... -
Page 33: Assembly Step（12
Assembly step（12）drawing Assembly step（12）assembly instruction 1. Fix left support plate(68) & right support plate(69) fastening on ground frame and front frame using: M10*130 hexagon bolt(50), M10*75 hexagon bolt(65), Ф10 washer(5),M10 lock nut(23) 2. Fix 4pcs pulley(55) fastening on pint: V,W,Z,A1 using: M10*45 hexagon bolt(52),Ф10 washer(5),M10 lock nut(23) 3. -
Page 34: Assembly Step（13
Assembly step（13）explosion drawing No. Description Note Qty. 9 link chain & snap hook low pull cable L:4170mm short bar... - Page 35 Assembly step（13）cable drawing Low pull cable drawing...
-
Page 36: Assembly Step（13
Assembly step（13）drawing Assembly step（13）assembly instruction 1. Remove low pull cable(70) end equipped ball head down 2. Low pull cable(70)head down end from point U according through point: V,W,X,Y,Z,A1 final installed ball head back to cable 3. Connect 9 link chain & snap hook(60) with low pull cable(70), 9 link chain &... -
Page 37: Assembly Step（14
Assembly step（14）explosion drawing No. Description Note Qty. washer Φ8 spring washer Φ8 hexagon bolt M8*40 back cushion adjust frame back cushion seat cushion hexagon bolt M8*25... -
Page 38: Assembly Step（14
Assembly step（14）drawing Assembly step（14）assembly instruction 1. Fix seat cushion(76) on seat cushion adjust frame using: M8*40 hexagon bolt(73),Ф8 spring washer(72),Ф8 washer(15) 2. Fix back cushion(75) on back cushion adjust frame(74) using: M8*40 hexagon bolt(73),Ф8 spring washer(72),Ф8 washer(15) 3. Push back cushion adjust frame(74) fastening into front frame using: pull pin 4. -
Page 39: Assembly Step（15
Assembly step（15）explosion drawing No. Description Note Qty. hexagon socket button M8*25 head bolt sponge inner cap sponge outer cap sponge Φ100*175 sponge tube Φ25*480 sponge tube Φ25*450... -
Page 40: Assembly Step（15
Assembly step（15）drawing Assembly step（15）assembly instruction 1. Push sponge tube(81) into back cushion adjust frame, sponge tube(81) turn into: sponge inner cap(79),sponge(80),sponge outer cap(78) screw M8*25 hexagon socket button head bolt(77) 2. Push sponge tube(85) into seat cushion adjust frame, sponge pipe tube(85) turn into: sponge inner cap(79),sponge(80),sponge outer cap(78) screw M8*25 hexagon socket button head bolt(77) 3. -
Page 41: Assembly Step（16
Assembly step（16）explosion drawing No. Description Note Qty. washer Φ8 hexagon bolt M8*16 spring washer Φ8 shield 15 72... -
Page 42: Assembly Step（16
Assembly step（16）drawing Assembly step（16）assembly instruction 1. Fix shield(83) on shield support frame and ground frame using: M8*16 hexagon bolt(36) Ф8 spring washer(72) Ф8 washer(15) -
Page 43: Assembly Step（17
Assembly step（17）explosion drawing No. Description Note Qty. 9 link chain & snap hook long bar handle belt... -
Page 44: Assembly Step（17
Assembly step（17）drawing Assembly step（17）assembly instruction 1. Connect 9 link chain & snap hook(60)with handle belt(85), 9 link chain & snap hook(60)other end hang on butterfly arm cable ball head 2. Connect 9 link chain & snap hook(60) with long bar(85), 9 link chain &... -
Page 45: Assembly Step（18
GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
