TOORX Chrono Line RWX500 Instruction Manual

Hide thumbs Also See for Chrono Line RWX500:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chrono Line RWX500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TOORX Chrono Line RWX500

Summary of Contents for TOORX Chrono Line RWX500

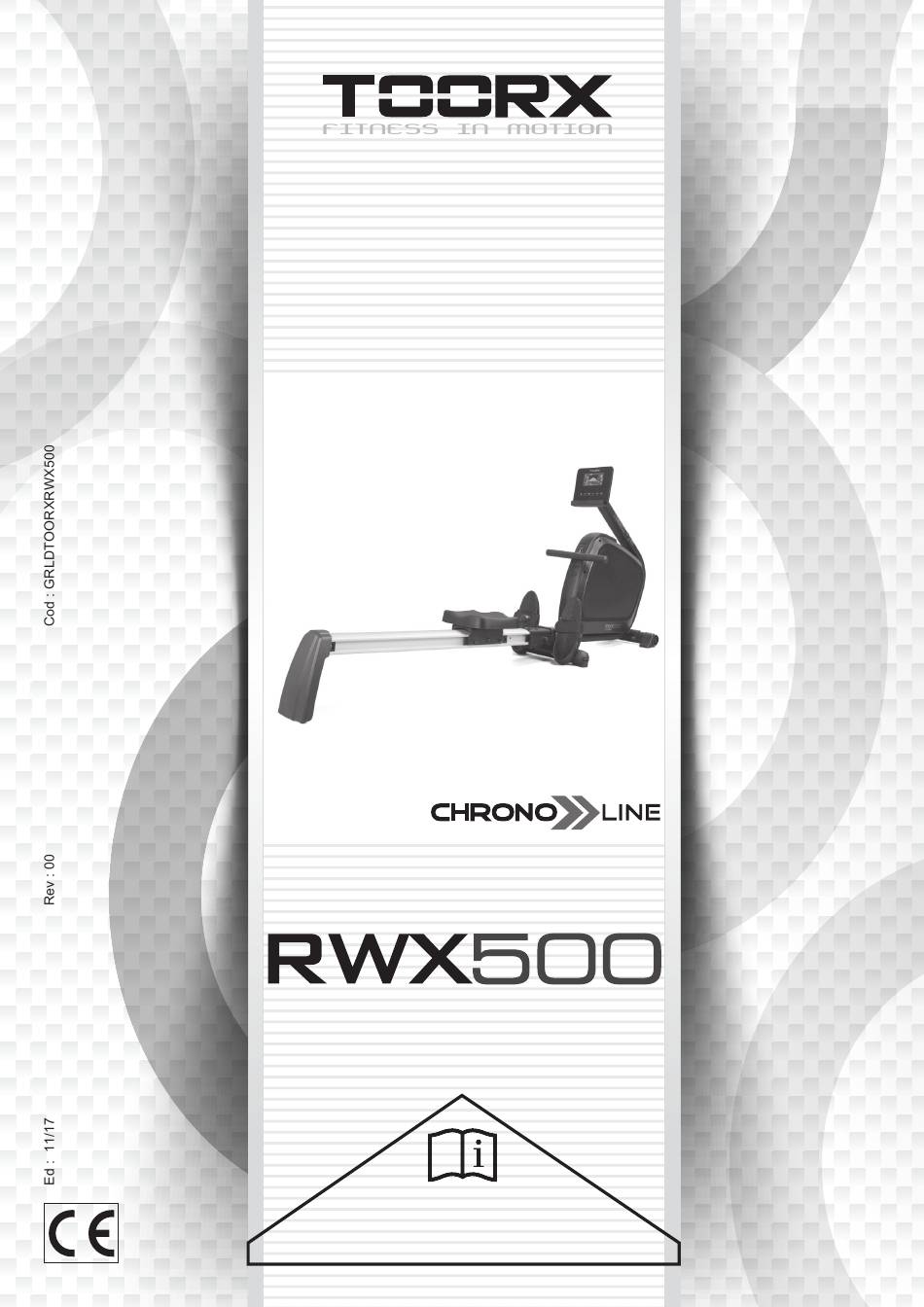

  • Page 1 INSTRUCTION...
  • Page 2 Check list...

  • Page 3: Explosive Drawing

    EXPLOSIVE DRAWING...

  • Page 4: Part List

    PART LIST Part Part Description Specification Q'ty Description Specification Q'ty Computer Spring SM-5856-64 D13*D1.2*85.5L Handlebar post Anti-loosen nut welding set M10x1.5x10T M10x1.5x10T Front anti-slip pad Volute spring 20*0.8T 44.6*50*5.3 20*0.8T Anti-loosen nut D6*26.5*7.7 M8*1.25*8T M8*1.25*8T stabilizer Bushing of pulley axle D60x1.5Tx440L D12*D8.2*12.6L Pulling rope...
  • Page 5 cable (I) Sensor Connecting axle cover 1100L M20*2.5*62L Lower computer C ring S-16(1T) cable 450L S-16(1T) Tension cable bolt M10*1.5*150L D1.5x400 M10*1.5*150L Sensor (一） Hex bolt M8*1.25*100L 1100L M8*1.25*100L Spring washer Motor D10.5*D6.1*1.3T D10.5*D6.1*1.3T Wheel for pulling Allen bolt M8*1.25*20L rope D160*76L M8x1.25x20L...

  • Page 6: Assembly Step

    Assembly step 1 ： A. Assemble the rear stabilizer (5) to the Main frame (22) by using spring washer (74),domed nut (75), curved washer (80) and square neck bolt (90). B. Assemble the front stabilizer (100) to the Main frame (22) by using spring washer (74),domed nut (75), curved washer (80) and square neck bolt (90)
  • Page 7 Assembly step 2: A. Assemble the rear supporting bracket set (13) with sliding beam (19) by fixing plate (95), spring washer (74) and allen bolt(87) as picture shown. B. Assemble the seat support (25) to the sliding beam (19) by using the square plug (61) and the Nut (96) and the bolt (85) as picture shown..
  • Page 8 Assembly step 3: A, Assemble the Foot pedal (10) using the Axle (16), flat washer (77) and bolt (91).
  • Page 9 Assembly step 4: A x2 B x1 step-4 M5*10 M8*20 M8*20 1) Connect the upper computer cable(38A) & lower computer cable(38B), lower computer cable(一） (28)& sensor (29), lower computer cable (30)&sensor(一） （ 32） and then assemble the handlebar post (2) onto the main frame by flat washer (76), curved washer (80) and allen bolt (87) as the picture shown.
  • Page 10 Foldable machine:...
  • Page 11 COMPUTER INSTRUCTIONAL MANUAL LCD full Display: DISPLAY FUNCTIONS ITEM DESCRIPTION ‧ WATTS Display range 0~999 ‧ Burned calories during rowing. CALORIES ‧ Display range 0~9999;Setting range 0~9990 Cal ‧ Displaying user rowing distance DISTANCE ‧ Display range0~99999; Each increment/decrement is ±100. ‧...

  • Page 12: Key Function

    KEY FUNCTION ITEM DESCRIPTION ‧ Increase function value or setting selection. ‧ Down Decrease function value or setting selection. ‧ ENTER Confirm setting or selection. ‧ Hold on pressing for 2 seconds, computer will reboot. ‧ Reset Clear setting value. ‧...
  • Page 13 Picture2 Picture3 5. Program Mode 5.1 Press UP or DOWN to select Program mode and press ENTER to confirm. 5.2 Press UP or DOWN to select profile (P1~P12, Picture 4) and press ENTER to confirm. 5.3 Press UP or DOWN to preset TIME ( Picture 5) and press ENTER to confirm. 5.4 Press START/STOP key to start rowing.
  • Page 14 Picture6 Picture7 Picture8 Picture9 7. Race Mode 7.1 Press UP or DOWN to select Race mode (Picture 10) and press ENTER to confirm. 7.2 Press UP or DOWN to set SPM (preset=10) and DISTANCE (preset=500) (Picture 11). Press ENTER to confirm. (Total level =15, L1=1:00 TIME/500M, L15=8:00 TIME/500M, Increments default: 0:30 TIME/500M).
  • Page 15 8.USER Mode 8.1 Press UP or DOWN to select USER mode and press ENTER to confirm. 8.2 Press UP or DOWN to set resistance level of each column (Picture 15). Press ENTER to next one. Hold on pressing MODE for 2s to finish or quit setting. 8.3 Press UP or DOWN to preset TIME (Picture 16), and press ENTER to confirm.
  • Page 16 Remark: 1. If console display E-2, pls check if cables were well connected or damaged. 2. After 4 minutes without rowing or pulse input, console will enter into SLEEPING mode. Program profile: P01~P12...
  • Page 17 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
