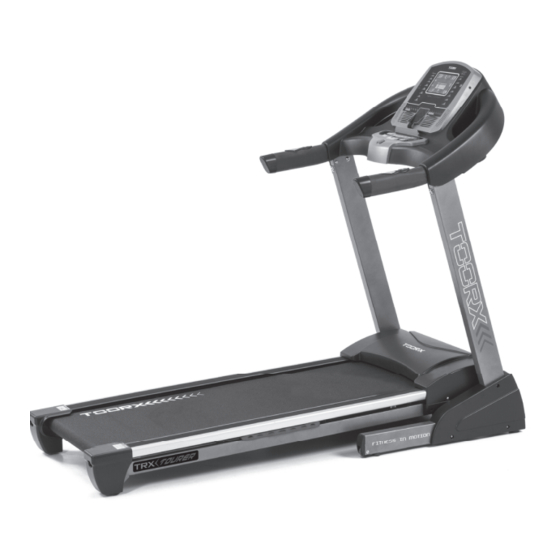

TOORX TRX Tourer Instruction

Hide thumbs

Advertisement

Quick Links

INSTRUCTION

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRX Tourer and is the answer not in the manual?

Questions and answers

Related Manuals for TOORX TRX Tourer

Summary of Contents for TOORX TRX Tourer

  • Page 1 INSTRUCTION...

  • Page 2: Table Of Contents

    CONTENT CONTENT -------------------------------------------------------------------------------------------------------------------------------------------1 IMPORTANT SAFETY PRECAUTIONS -------------------------------------------------------------------------------- 2 ASSEMBLY INSTRUCTIONS ----------------------------------------------------------------------------------------- 3 FOLDING & UNFOLDING INSTRUCTIONS ------------------------------------------------------------------------- 6 GROUNDING METHODS ---------------------------------------------------------------------------------------------- 7 OPERATION GUIDE ----------------------------------------------------------------------------------------------------------------------------- 8 GETTING STARTED GUIDE ---------------------------------------------------------------------------------------- 14 SAFETY EXERCISES -------------------------------------------------------------------------------------------------------- 15 WARM-UP EXERCISES ----------------------------------------------------------------------------------------------------- 16 MAINTENANCE INSTRUCTIONS --------------------------------------------------------------------------------------- 17 BELT ADJUSTMENT --------------------------------------------------------------------------------------------------------------------------- 18 EXPLODED DRAWING ----------------------------------------------------------------------------------------------- 1...

  • Page 3: Assembly Instructions

    ASSEMBLY INSTRUCTIONS WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS: 1 Main frame 1set D26 Inner washer 8 pcs D23 Bolt M10*15 C15 Safety key 1set 4 pcs D36 Allen wrench T6 B6 Silicon oil 1 pc C26 MP3 line 1 pc D24 Bolt 10*55 4 pcs 1 pc...
  • Page 4 STEP 1 ： According to the following steps to lift up the computer bracket. Be careful not press the line when folding STEP 2 ： Lock the treadmill with bolt M10*55(D24), M10*15(D23) with Washer (D26).
  • Page 5 Step 3: Put the Safety key (C15) and MP3 line (C26) on the computer, then lock the Left front cover (B26) and Right front cover (B27) on the upright tube and base frame with Bolt (D40). ATTENTION: Must confirm complete assembly as the required above and lock all bolts. Do the following operations after checking everything is OK.
  • Page 6 FOLDING INSTRUCTION Lift up the machine and force to pull up until you heard "click" that made by safety casing stuck the pneumatic cylinder. UNFOLDING INSTRUCTION Kick the safety sleeve lightly and pull down the machine at the same time as the arrow direction.
  • Page 7 This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.

  • Page 8: Operation Guide

    OPERATION GUIDE WINDOW DISPLAY 1.1. 1.2. START 1.1. Normal start after 5 seconds countdown 1.3 PROGRAM 1.2. 1 manual mode ， 15 pre-set programs, 3Users,1 body fat program ,3 HRC. 1.4. SAFETY LOCK FUNCTION 1.3. The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi"...
  • Page 9 1.5.2 “PROGRAM” BUTTON When the treadmill is not running, press this button can circle choose from manual mode to pre-set mode P1-P15,U1-U3, Fat, H1-H3. 1.5.3 “MODE” BUTTON press this button to choose countdown When the treadmill is not running, modes:”H-1”,”H-2”,”H-3”;:H-1” is the time countdown mode, and “H-2” is the distance countdown mode, “H-3”...
  • Page 10 Display the incline 1.6.6 PULSE Display pulse data 1.6.7 ALL WINDOW DISPLAY DATA RANGE TIME ： 0:00 – 99.59(MIN) DISTANCE: 0.00 – 99.9(KM) CALORIES: 0.0 – 999 (C) SPEED: 0.8-20.0(km/h) PULSE: 50 – 200 (BPM) INCLINE ： 0 – 15 1.7 PULSE FUNCTION When the treadmill is running, hold the hand pulse about 5 seconds, it will display pulse data.
  • Page 11 1.9 Manual model operation 1.9.1 Press start key, time count down 5 seconds, then treadmill will start to work with initial speed 0.8km/h 1.9.2 Press speed +/-, you can adjust the speed 1.9.3 Press incline+/-, you can adjust the incline 1.9.4 Press stop, you can stop treadmill at working state 1.9.5 Press quick speed key, you can quickly adjust the speed you want 1.9.6 Press quick incline key, you can quickly adjust the incline you want.
  • Page 12 04 Weight 20-----150 05 FAT ≤19 Under weight FAT = (20---25) Normal weight FAT = (25---29) Over weight FAT ≥30 Obesity 1.12 User Program Besides 12 pre-set programs, there have 3 user-defined programs, each user program has 16 segments, and the running time of each user’s program is equal. The user can set the desired speed and incline before exercise.
  • Page 13 If『HR＞THR+15』, then each 15secs SPEED and INCLINE adjust itself to make your pulse close to the default pulse automatically in every 15 secs, SPEED automatically decreased by 0.8KM and INCLINE automatically decrease by 2 level until the data reached the min 1.14 OTHERS 1.14.1 The system will enter into power saving mode automatically if there is no any action within 10 minutes under IDLE MODE and there is no display and backlit on the computer.

  • Page 14: Maintenance Instructions

    MAINTENANCE INSTRUCTION WARNING ： Please make sure pull out the treadmill's power plug before cleaning or maintaining the product. CLEANSING ： General cleaning or the unit will greatly prolong the treadmill's life. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails.

  • Page 15: Belt Adjustment

    BELT ADJUSTMENT f the belt has drifted to the right, unplug the safety lock and power switch, and turn the right adjusting bolt 1/4 turn clockwise, then insert the power switch and safety lock, make the treadmill running, observe the running belt deviate condition.

  • Page 17: Parts List

    PART LIST A. Welding parts Description Description Main frame Computer bracket Incline bracket Base frame Filter bracket Left upright tube Reinforce frame Right upright tube B. Plastic parts Description Description Computer cover Left rear cover Safety key panel Right rear cover Computer panel Motor cover Cushion...
  • Page 18 Bolt M6*40 Screw ST4.2*50 Bolt M6*65 Screw ST4.2*50 Bolt M6*25 Bolt M5*15 mm Screw ST4.2*16 Bolt M8*40 mm Bolt M8*55 mm BoltM8*30 mm Bolt M8*60 mm Screw ST4.2*19 Allen wrench Bolt M8*20 mm Spring washer M8 Screw ST4.2*30 Bolt M6*45 Screw ST2.9*16 Screw ST3*10 Bolt M8*10 mm...
  • Page 19 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
