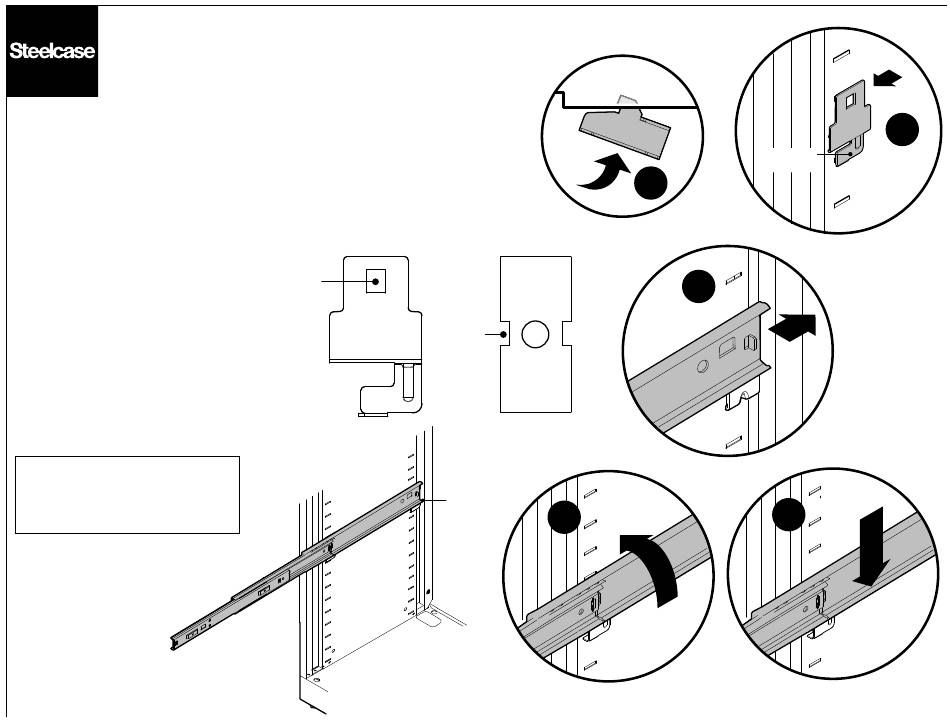

Installation of Shrouded
Offset Suspension
1.
Insert offset brackets by placing
tab into slot and rotating sideways
(1a) and then pushing sideways
(1b).
2.
Install suspension by putting the
suspension hook in the rear of the
offset bracket.
3.
Rotate front hook of suspension
inward into rectangular slot.
4.
Push down to engage second
tab in front.
NOTE: Brackets contain a large
and small offset. The larger offset
brackets are installed on the hinge
side of the cabinet.
Front Bracket
SUSPENSION
INSERTS
HERE
SUSPENSION
Top View
Rear Bracket
INSERTS
HERE
REAR END OF
SUSPENSION
3
OFFSET
BRACKET
1a
2
4
1b
Page 11 of 16
939504872 Rev D
