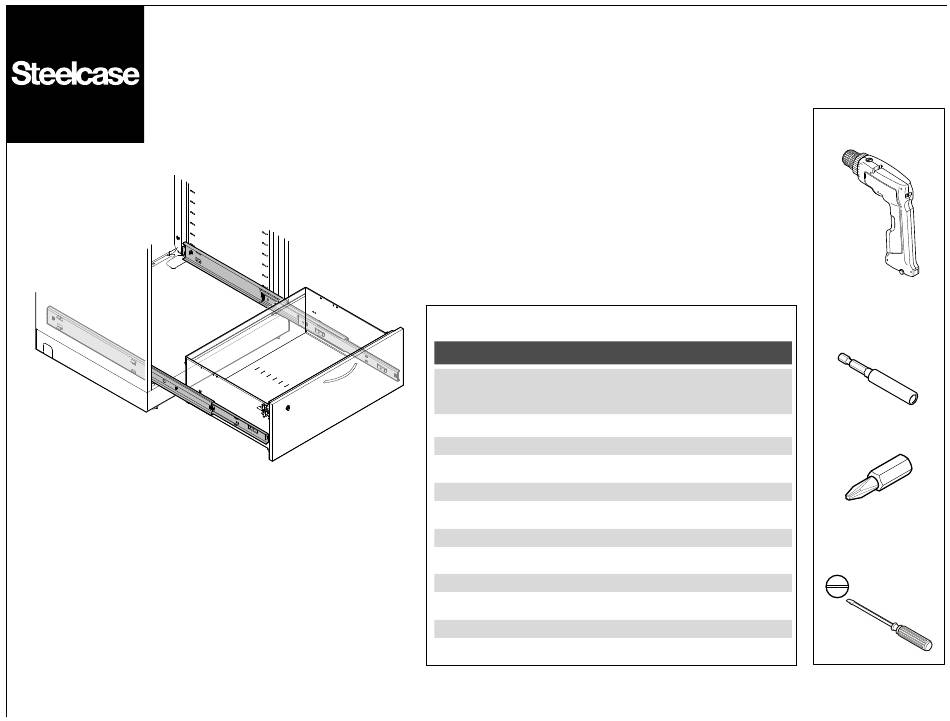

Page 1: Table Of Contents
Installation of a Drawer Suspension If you have a problem, question, or request, call Installation of Non-Shrouded Offset Suspension your local dealer, or Steelcase Line 1 at Installation of Shrouded Offset Suspension 888.STEELCASE (888.783.3522) for immediate action by people who want to help you.
Page 2: Removal Of Drawers And Non-Shrouded Rollouts
Rollouts Removal of Drawers and Non-Shrouded Rollouts from the Suspension Remove screws in the front on both sides of the drawer (1a) or rollout (1b). Pry out the suspension of the drawer (2a) or rollout (2b) at the eyebrow. Drawers Lift drawer or rollout up and out of suspension belt loop.
Page 3: Removal Of A Drawer Suspension
Removal of a Drawer Suspension NOTE: If the upper unit(s) do not have roll-outs, then it is not necessary to remove the suspensions or the interlock assembly. With a pencil (or non permanent marking method) mark the location of the slide on the case side.
Page 4: Removal Of Non-Shrouded Offset Suspension
Removal of Non-Shrouded Offset Suspensions Rotate front hook of suspension toward center of case to disengage. Pull up to disengage second tab in front. Pull suspension forward from the suspension hook in the rear of the offset bracket. Remove offset brackets by sliding bracket forward (4a) and rotating out (4b).
Page 5: Removal Of Shrouded Rollouts
Removal of Shrouded Rollouts Remove screws in the front of both sides of the rollout (1a and 1b). Pry out the suspension away from the rollout at the eyebrow. Lift rollout up and out of suspension belt loop. Reverse for re-installation. CAUTION: Screws must be re-installed in drawers and roll-outs.
Page 6: Removal Of Shrouded Offset Suspension
Removal of Shrouded Offset Suspension Rotate front hook of suspension toward center of case to disengage. Pull up to disengage second tab in front. Pull suspension forward from the suspension hook in the rear of the offset bracket. REAR END OF SUSPENSION OFFSET Remove offset brackets by sliding...
Page 7: Relocating The Interlock Mechanism
BACKER Relocating the Interlock Mechanism Note: If the rollout position is being changed, the interlock must also be relocated. If not, skip this page. Remove interlock mechanism from side. Using fingers (or a screwdriver), pull back tabs (1a). Holding tabs back, remove backer from case side (1b).
Page 8 Before re-installing each rollout/drawer, make sure the interlock cam is rotated forward to "the open" position. The cable must be woven throughout the interlock backer (cam assembly) shown. (shown in the engaged position) CABLE Page 8 of 16 939504872 Rev D...
Page 9: Installation Of A Drawer Suspension
Installation of a Drawer Suspension Locate rear slide tabs into slots (1a). Pull slide forward (1b). Insert front/top tab into slot by twisting slide slightly and pushing towards the case side (1c). Pull downward and rotate bottom/front tab into lower/front slot (1d). REAR END OF SUSPENSION Page 9 of 16...
Page 10: Installation Of Non-Shrouded Offset Suspension
Top View Installation of Non- OFFSET Shrouded Offset BRACKET Suspension Insert offset brackets by placing tab into slot and rotating sideways Rear Bracket (1a) and then pushing sideways (1b). Front Bracket Install suspension by putting the suspension hook in the rear of the offset bracket.
Page 11: Installation Of Shrouded Offset Suspension
Top View Installation of Shrouded OFFSET Offset Suspension BRACKET Insert offset brackets by placing tab into slot and rotating sideways (1a) and then pushing sideways Front Bracket Rear Bracket (1b). SUSPENSION INSERTS Install suspension by putting the HERE suspension hook in the rear of the offset bracket.
Page 12: Installation Of Rollouts
Installation of Rollouts Extend 1 set of slides and engage the interlock cam. Place the drawer or rollout SUSPENSION in and down into the suspension belt loops. Push downward on the rear of the EYEBROW ON drawer or rollout until the ROLLOUT SIDE eyebrow snaps into place on the suspension.
Page 13: 3" Drawer Suspension Replacement
3" Drawer Suspension Replacement Open the drawer. Pull tabs in suspensions (both sides) to remove drawer. Note: Suspension in this view removed for clarity. Page 13 of 16 939504872 Rev D...
Page 14 Remove suspension bracket screw (3a). Push suspension rearward (3b) and remove (3c). Page 14 of 16 939504872 Rev D...
Page 15 Remove screws attaching suspension to BRACKET bracket. Remove screws attaching suspension to drawer body. Reverse to re-install. Make sure that screws are fully seated for proper suspension function. Page 15 of 16 939504872 Rev D...
Page 16: Checking The Interlock Function
SHALLOW Checking the Interlock SHELF ALSO WILL Function NOT OPEN Check interlock function as shown. WITH THIS DRAWER OPEN, Note: Only one rollout will open at a time if mechanism is properly THESE TWO installed. SHOULD NOT OPEN THESE TWO SHOULD NOT OPEN WITH THIS DRAWER OPEN,...
