Removal of Shrouded
Offset Suspension

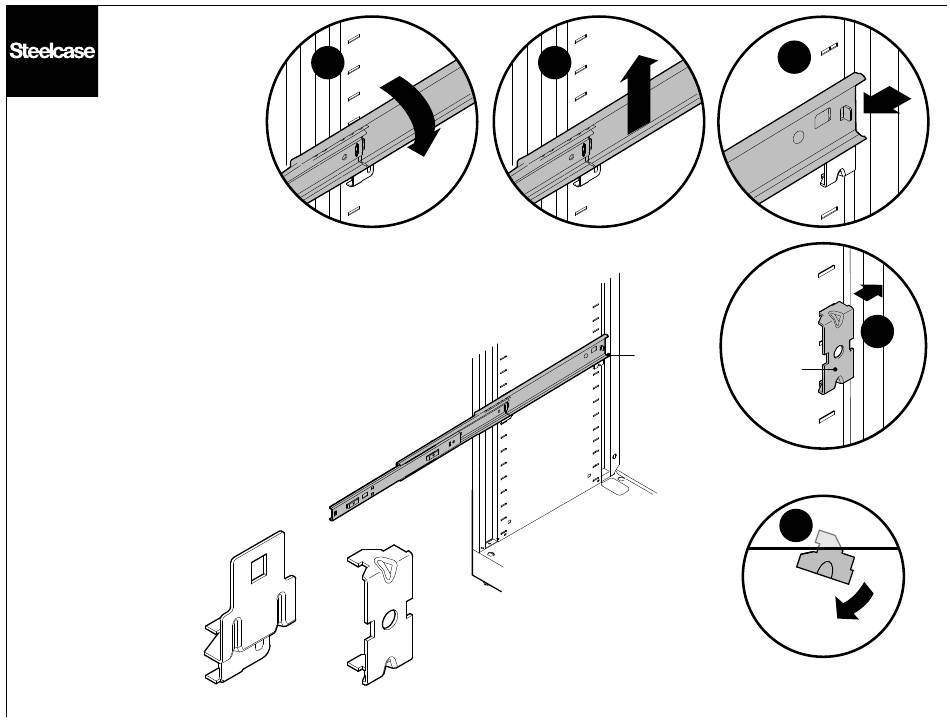

1.
Rotate front hook of suspension
toward center of case to disengage.
2.
Pull up to disengage second tab in
front.
3.
Pull suspension forward from the
suspension hook in the rear of the
offset bracket.
4.
Remove offset brackets by sliding
bracket forward (4a) and rotating out
(4b).
1a
Front
Rear
Brackets
Brackets
2
REAR END OF
SUSPENSION
3
4a
OFFSET
BRACKET
Top View
4b
Page 6 of 16
939504872 Rev D
