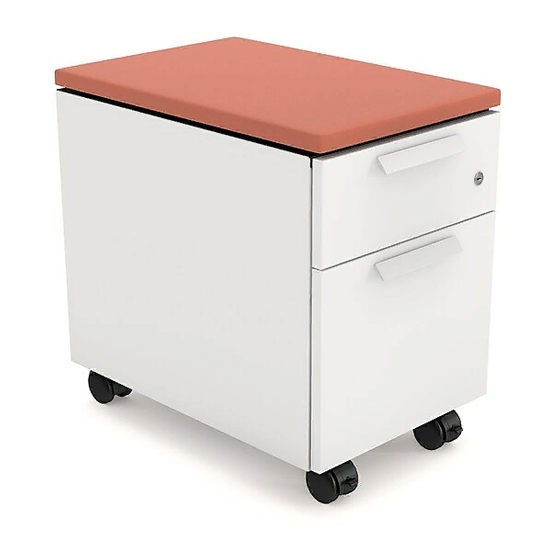

Steelcase UPV Series Assembly Instruction Manual
  1. Manuals
  2. Brands
  3. Steelcase Manuals
  4. Indoor Furnishing
  5. UPV Series
  6. Assembly instruction manual

Steelcase UPV Series Assembly Instruction Manual

Storage
Hide thumbs Also See for UPV Series:

Advertisement

Quick Links

Download this manual
Disassembly can be achieved by using the assembly instructions as a guide, further break down of the main
structure is not required as it is composed of one material type.
August 2014
UPV Series Storage
Assembly Instruction

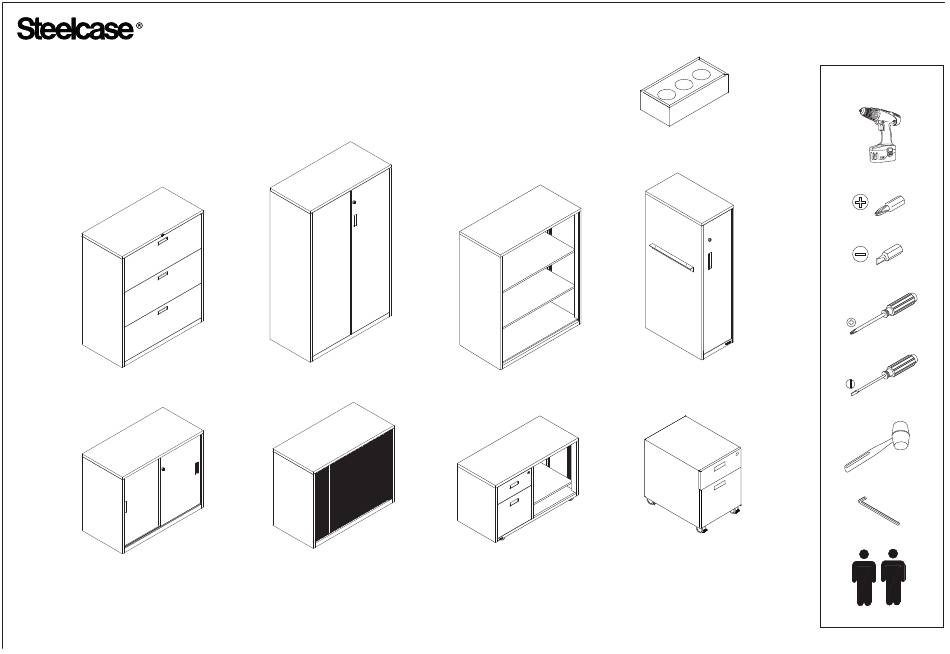

Required Tools
1. Power Driver
2. Plus Bit
3. Minus Bit
4. Plus Screwdriver
5. Minus Screwdriver
Page 1 of 18

Advertisement

loading
Need help?

Need help?

Do you have a question about the UPV Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steelcase UPV Series

Summary of Contents for Steelcase UPV Series

  • Page 1 UPV Series Storage Assembly Instruction Required Tools 1. Power Driver 2. Plus Bit 3. Minus Bit 4. Plus Screwdriver 5. Minus Screwdriver Disassembly can be achieved by using the assembly instructions as a guide, further break down of the main structure is not required as it is composed of one material type.
  • Page 2 UPV Series Storage Assembly Instruction All cabinet are without pre-cut holes except for Single Hinge Door 1. For up-down ganging, installer can refer to guide holes from inside to dril out Internal Guide Holes For ganging side cabinets Page 2 of 18...
  • Page 3 UPV Series Storage Assembly Instruction - Ganging Cabinets Ganging Cabinets 1. Ganging upper to lower cabinets. 2. Ganging side cabinets. M6*10 3. Ganging back cabinets. M6*10 M6*10 Page 3 of 18 August 2014...

  • Page 4: Assembly Instruction

    UPV Series Storage Assembly Instruction M5*12 Page 4 of 18 August 2014...
  • Page 5 UPV Series Storage Assembly Instruction - Removable Runner Removable Runner 1. Install the runner at the cabinet. 2. Insert drawer into runner sequentially Page 5 of 18 August 2014...
  • Page 6 UPV Series Storage Assembly Instruction - Counter Weight Counter Weight (for drawer cabinet only) 1. Take out the drawer one by one. 2. Slot in the counter weight. 3. Put back in the drawer one by one. Counter Weight Info: 1.
  • Page 7 UPV Series Storage Assembly Instruction - File Hanger File Hanger 1. Vertical Hanging Rail 2. Horizontal Hanging Rail Page 7 of 18 August 2014...
  • Page 8 UPV Series Storage Assembly Instruction - Drawer Drawer 1. Fix the drawer divider by slotting into the parallel holes. Page 8 of 18 August 2014...
  • Page 9 UPV Series Storage Assembly Instruction - Adjustment Knob Adjustment Knob 1. Adjust glide for leveling. Page 9 of 18 August 2014...

  • Page 10: Adjustable Shelf

    UPV Series Storage Assembly Instruction Adjustable Shelf 1. Insert all four brackets in position as shown. 2. Place shelf on top of the brackets. Page 10 of 18 August 2014...
  • Page 11 UPV Series Storage Assembly Instruction - Tambour Door Storage NOTE: Plastic hook are not necessarily for shelf fitting Page 11 of 18 August 2014...
  • Page 12 UPV Series Storage Assembly Instruction - Open and Sliding Door Storage NOTE: Plastic hook are not necessarily for shelf fitting Page 12 of 18 August 2014...

  • Page 13: Side Bracket

    UPV Series Storage Assembly Instruction - Single Hinge Door Side Bracket 1. Screwed the bracket to the side panel. 2. Knock out the pre-cut holes with mallet (either left or right side). Page 13 of 18 August 2014...
  • Page 14 UPV Series Storage Assembly Instruction - Floor and Wall Mount Floor and Wall Mount 1. The longer part must attach to cabinet body because the Wall cabinet bottom structure will block the screw. 2. Advisable the longer bracket hook with cabinet and short bracket side mount with wall.
  • Page 15 UPV Series Storage Assembly Instruction Cushion Top 1. Drill holes from top with attached template guide. 2. Unload the drawer. 3. Tight the cushion top with screws 4. Put back the drawers one by one. Page 15 of 18 August 2014...

  • Page 16: Door Adjustment

    UPV Series Storage User Guide- Door Adjustment Door Adjustment 1. Adjust screw to move the door to left or right (movement ‘a’) 2. Adjust screw to move the door forward or backward (movement ‘b’) 3. Adjust screw to move the door up or down (movement ‘c’)
  • Page 17 UPV Series Storage User Guide - Loading and Unloading Files Loading and Unloading Files Note: 1. Always load the drawers from bottom upward. 2. Always unloading the drawers from top downward. LOAD UNLOAD Page 17 of 18 August 2014...
  • Page 18 UPV Series Storage User Guide - Cautions CAUTION FOLLOW THESE INSTRUCTIONS TO PREVENT CABINET FROM TIPPING OVER AND CAUSING PERSONAL INJURY. THESE INSTRUCTIONS APPLY TO ALL FILES. DO NOT REMOVE THIS LABEL. Mobile Pedestal & Caddy Gang cabinets together If lateral cannot be ganged...
