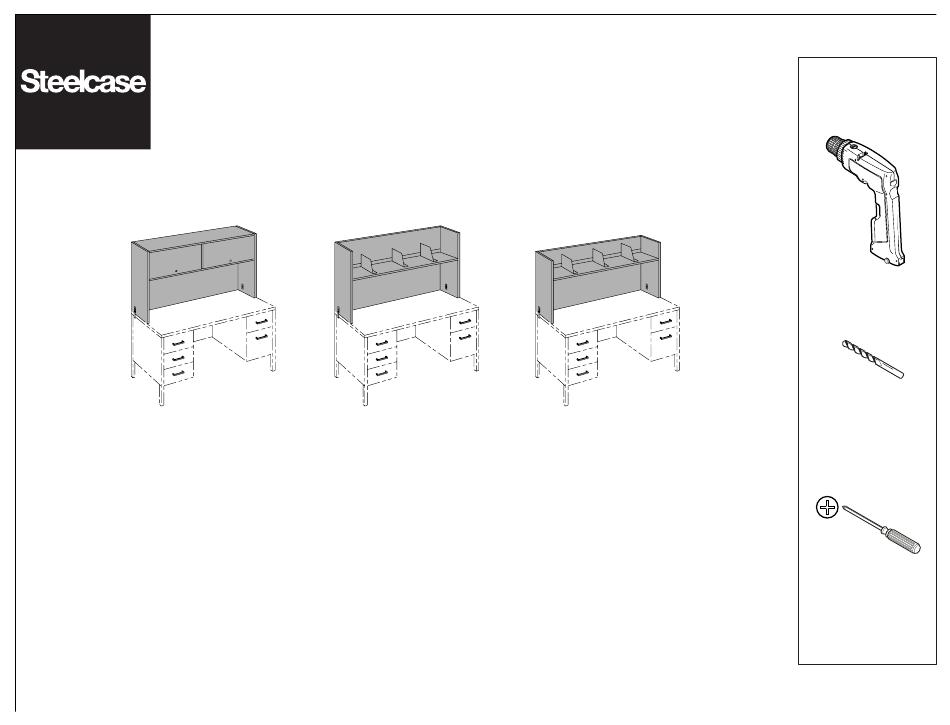

Service Module Installation 2300, 3200, 3300, 5200 and Avenir
Series
®
1/8" Drill Bit
60SM35-A
60SM35-B
60SM23-E
use all steps
use steps 1, 2, 3, 5, 7 & 9
use steps 1, 2, 3, 5, 7 & 9
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2000 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Page 1 of 8
Printed in U.S.A.
939503022 Rev D
Advertisement
Table of Contents
Related Manuals for Steelcase Avenir Series
Summary of Contents for Steelcase Avenir Series
- Page 1 1, 2, 3, 5, 7 & 9 use steps 1, 2, 3, 5, 7 & 9 If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you.
- Page 2 Level parent unit (Desk, Credenza or Table). Remove inner back panel or tackboard by tipping outward at top and lifting up. NOTE: Reverse Steps 2 & 3 if your tackboard is shipped separate. INNER PANEL OR TACKBOARD REMOVE TAPE ALONG EDGE OF INNER PANEL LARGE FLANGE AT BOTTOM FOR EASE OF REMOVAL PARENT UNIT...
- Page 3 #8-15 x 1/2” PH Attach sides to outer back panel, then re- Screws install inner back panel or tackboard. Foam shipping block Turn unit upside down and attach dust covers and doors. NOTE: Be sure dust cover (top) is even with top edges of sides before tightening screws.
- Page 4 #8-15 x 1/2” Screw Use protective screw covers here #8-15 x 1/2” Screw Locate pilot holes measured 15” down from with star washer top of end panels. Insert screws halfway in on both end panels. Install shelf on screws and tighten.
- Page 5 Parent Unit Attachment Clip Window in service module 2300, 3200 & 3300 Series Desks SMCL-1 Remove plastic grommets 3200 Tables w/2-1/2" aprons SMCL-2 2300 & 3200 Credenzas SMCL-3 5200 Series ( 24" Deep Unit) SMCL-3 Clip Bracket 2900 Tables 800 Lateral File Tops SMCL-3 5200 Series Desks (30”...
- Page 6 Attach with #8-1/2 Pan Hd screws. Clip used to attach any service Clip used to attach any service module to 2300, 3200 and module to Avenir series desks, 5200-24” deep series credenza and credenza tops, W/ 1 1/2” tops, 2900 tables and 800 thick tops.
- Page 7 SMCL-1W Clip used to attach any service Window in module to desks with 1-1/4" Service Module thick wood tops without reveal. Drilling required. Remove Package Contains: plastic grommets 1 - Service Module Installation of SMCL-1W & SMCL-6W 2 - SMCL- 1W Clips Clip 4 - Screws, #8-1/2 Pan Hd Clip bracket...
- Page 8 Door Adjustment for Model 60SM35-A Up or down adjustment Slightly rotate pivot pin on each side of binder bin door to raise or lower door, being careful not to use excessive force. There should be approximately 1/16” gap between top of door and dust cover.
