Steelcase Universal Storage Manual

Installation of coat hook, front to back coat rod and side to side coat rod

Hide thumbs Also See for Universal Storage:

Download this manual

Coat Hook

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2003 Steelcase Inc.

Grand Rapids, MI 49501

U.S.A.

Printed in U.S.A.

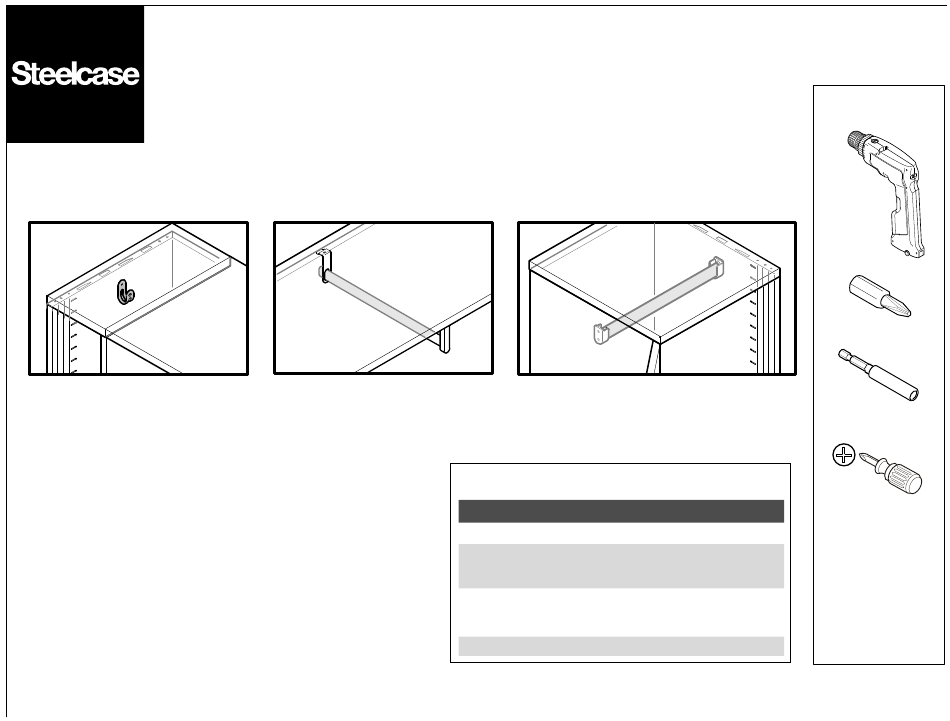

Universal Storage - Installation of Coat Hook,

Front to Back Coat Rod and Side to Side Coat Rod

Front to Back Coat Rod

Table of Contents

Page

Side to Side Coat Rod

Topic

Installing a Coat Hook

Installing a Front to Back Coat

Rod to the Top

Installing a Front to Back Coat

Rod Under a Shelf

Installing a Side to Side Coat Rod

ACR2 BIT

Page 1 of 5

939504456 Rev D

Need help?

Do you have a question about the Universal Storage and is the answer not in the manual?

Page 1 Universal Storage - Installation of Coat Hook, Front to Back Coat Rod and Side to Side Coat Rod ® Coat Hook Front to Back Coat Rod Side to Side Coat Rod ACR2 BIT Table of Contents Page Topic Installing a Coat Hook...
Page 2 Installing a Coat Hook Open door of cabinet. Attach screw and spacer into lower hole. Slide coat hook over screw/spacer COAT HOOK (2a) and attach with screw through upper hole (2b). SPACER SCREW SCREW Note: Doors in Page 2 of 5 drawing are removed for clarity.
Page 3 Installing a Front to Back Coat Rod to the Top Install bracket in slot in back. Slide rod into the slot in BACK TOP the rear bracket. MOUNT DOOR STOP BRACKET BRACKET Insert rod into front bracket. Attach front bracket to top using two (2) screws.
Page 4 Installing a Front to Back Coat Rod Under a Shelf BACK TOP MOUNT BRACKET Attach rear bracket to UNDERSIDE underside of back of shelf using OF SHELF one (1) screw. Slide coat rod into the slot in the rear bracket. Using a tape measure, mark the center of the shelf.
Page 5 SIDE TO SIDE MOUNTING COAT ROD PLATE Installing a Side to Side Coat Rod Attach the side mounting plate to the side of the cabinet using two (2) screws. Repeat for other side. Place the end of the coat rod into each side mounting plate.
