If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2003 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

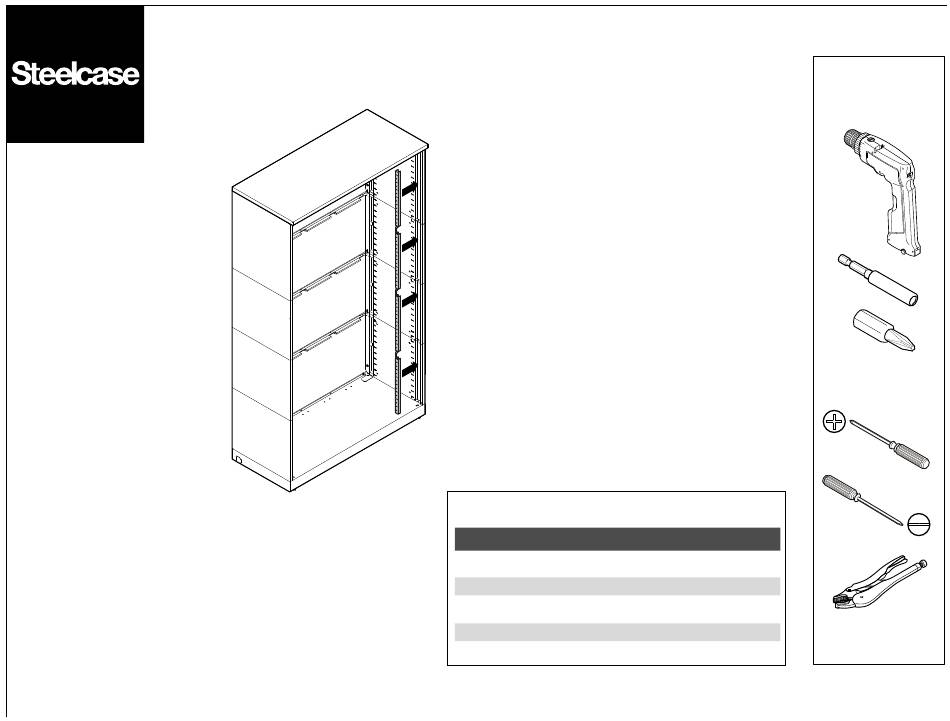

Universal Storage - Adding/Replacing/Removing Case Lock System
Table of Contents
Page
Topic
2
Removal of Drawers
3-5
Removing a Proud Lift-Up Door
6-7
Removing a Flush Lift-Up Door
8
Removing the Lock Bar Bracket
9-12
If Replacing the Lock Bar
ACR2 BIT
LOCKING
PLIERS
Page 1 of 12
939501628 Rev E

Advertisement

loading
Need help?

Need help?

Do you have a question about the Universal Storage and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Steelcase Universal Storage

  • Page 1 Universal Storage - Adding/Replacing/Removing Case Lock System ® ACR2 BIT Table of Contents Page Topic If you have a problem, question, or request, call Removal of Drawers your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) Removing a Proud Lift-Up Door for immediate action by people who want to help you.
  • Page 2 Rollouts Removal of Drawers and Non-Shrouded Rollouts from the Suspension Remove screws in the front on both sides of the drawer (1a) or rollout (1b). Pry out the suspension of the drawer (2a) or rollout (2b) at the eyebrow. Drawers Lift drawer or rollout up and out of suspension belt loop.
  • Page 3 Removing a Proud Lift-Up Door SPRING Remove screw (1a) and spring cover (1b) (both sides). Remove spring in front (2a) and back (2b) of cabinet (both sides). Note: This requires considerable effort. Use of locking pliers is recommended. LOCKING PLIERS SPRING COVER Page 3 of 12...
  • Page 4 With door half-way down, remove Remove door by sliding up. lower screws completely (3a), and loosen upper screws (3b) from both sides. Note: Top not shown for clarity. Page 4 of 12 939501628 Rev E...
  • Page 5 Remove case mounting bracket screws (6a). Remove the lift-up arm assembly from the side (6b). Repeat for other side. Remove torsion tube bolts from both sides (5a). Remove torsion tube (5b). TORSION TUBE Page 5 of 12 939501628 Rev E...
  • Page 6 Removing a Flush Lift-Up Door Remove screws from both sides. Lift up door (2a) and pull out the door stop block on both sides (2b). Page 6 of 12 939501628 Rev E...
  • Page 7 Remove door assembly from case. Remove screw from lift-up channel (4a) and slide rearward (4b) and out to remove from case (4c). Page 7 of 12 939501628 Rev E...
  • Page 8 Removing the Lock Bar LOCK BAR BRACKET Bracket Remove the lock bar bracket on both sides of case in all positions. Remove screws from lock bar holder (2a). Remove lock bar holder on both sides of case (only if replacing this part, otherwise leave it in) (2b).
  • Page 9 CUP WASHER If Replacing the Lock Bar Remove lock tabs. Remove lock bar connector if needed. Remove cup washer from the top most unit of the case. NOTE: Large hole located towards the bottom of the case. LOCK BAR CONNECTOR LOCK TAB NOTE: Remember placement of lock tab.
  • Page 10 Replace lock bar holder only where drawers will be located and do not add a holder behind a door. LOCK BAR CAUTION: Drawers must be adjacent in a CONNECTOR case. There cannot be a door or open LOCK BAR HOLDER case between drawers.
  • Page 11 Replace lock bar (8a) and brackets in case (8b). Make sure bracket does not interfere with lock movement. LOCK BAR BRACKET Page 11 of 12 939501628 Rev E...
  • Page 12 Re-install drawers and suspensions. Reverse process to install lift-up door. See below for proper spring attachment location. Spring Attachment Locations For 30" steel, 30" wood and 36" steel, attach spring to hole "A". For 36" wood and 42" steel, attach spring to slot "B".
