Steelcase Universal Hard Surface Screen Application Assembly Instructions

Worksurface rear & side mount

NOTE: Keep screen on a flat

surface, do not stand screen

on end.

REAR BRACKETS

SIDE BRACKETS

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2021 Steelcase Inc.

Grand Rapids, MI 49501

U.S.A.

Printed in U.S.A.

Universal Hard Surface Screen Worksurface Rear & Side Mount

Application Assembly Instructions

#2 SQUARE

Page 1 of 4

157588 Rev B

Table of Contents

Need help?

Do you have a question about the Universal Hard Surface Screen and is the answer not in the manual?

Page 1 Universal Hard Surface Screen Worksurface Rear & Side Mount ® Application Assembly Instructions NOTE: Keep screen on a flat surface, do not stand screen on end. REAR BRACKETS #2 SQUARE SIDE BRACKETS If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522)

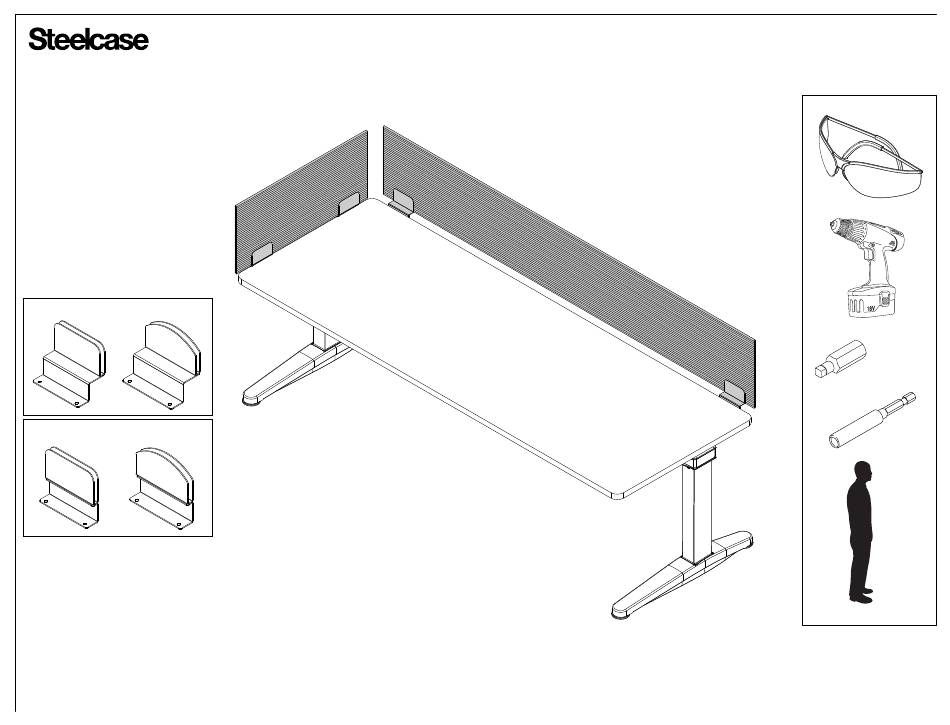

Page 2 ® Universal Hard Surface Screen Lay and center screen on worksurface. Position and align brackets to the screen (approx. 3-1/2" from screen edges). Attach brackets to underside of the worksurface with the supplied fasteners. NOTE: Screen should not extend beyond worksurface.
Page 3 ® FLAT EDGE Universal Hard Surface Screen (continued...) PROFILE EDGE NOTE: e l l edge profile only. TOP EDGE OF HARD SURFACE SCREEN 3-1/2" Page 3 of 4 157588 Rev B...
Page 4 ® Universal Hard Surface Screen (continued...) NOTE: 3 brackets are required for fluted panel longer than 72". >72" Page 4 of 4 157588 Rev B...
