Steelcase UPV Series Assembly Instruction Manual
Steelcase UPV Series Assembly Instruction Manual

Steelcase UPV Series Assembly Instruction Manual

Storage
Hide thumbs Also See for UPV Series:

Advertisement

Quick Links

October 2018
UPV Series Storage
UPV Series
UPV Series
UPV Series
Assembly Instruction
Required Tools
Page 1 of 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the UPV Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Steelcase UPV Series

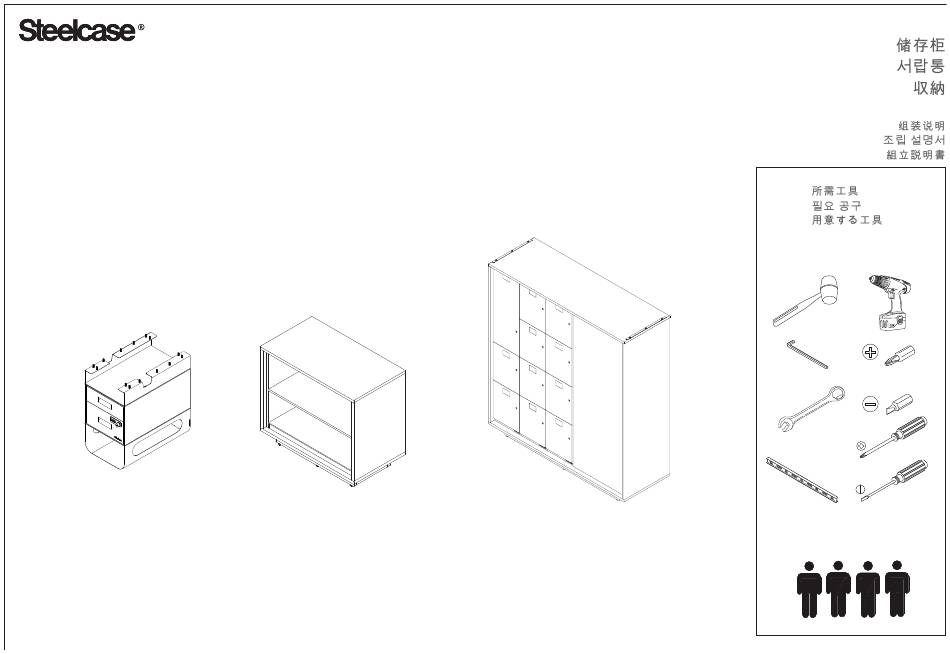

  • Page 1 UPV Series Storage UPV Series UPV Series UPV Series Assembly Instruction Required Tools Page 1 of 12 October 2018...
