Relocating the
Interlock Mechanism
Note:
If the rollout position is
being changed, the interlock must
also be relocated. If not, skip this
page.

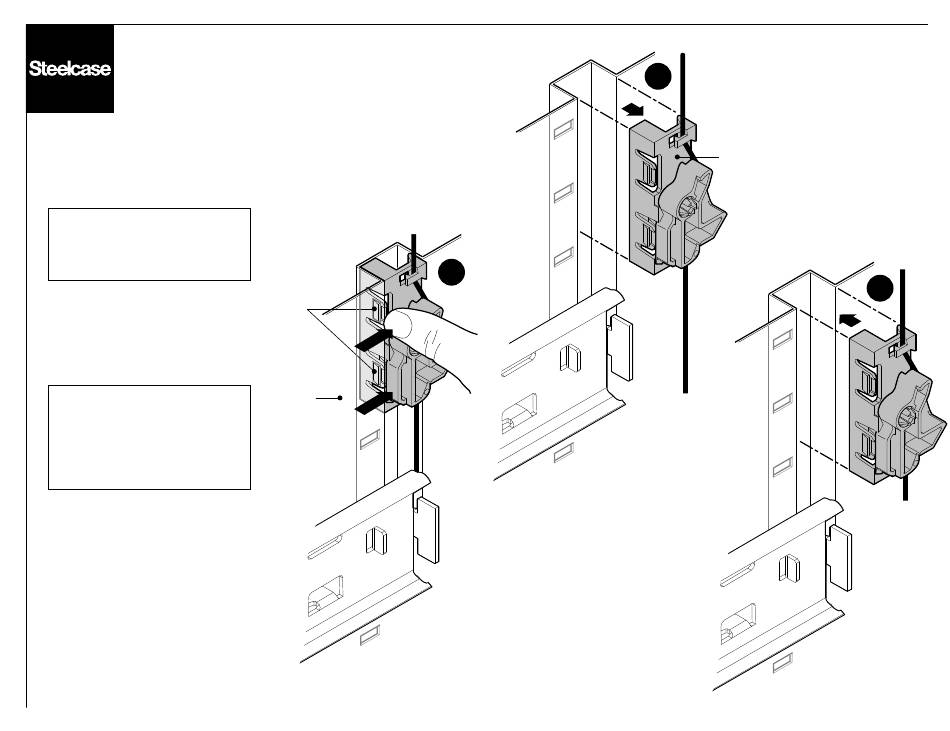

1.
Remove interlock mechanism
from side. Using fingers (or a
screwdriver), pull back tabs (1a).
Holding tabs back, remove backer
from case side (1b).
Note:
It may be easier to re-
install the suspensions first in
order to locate the interlock
correctly. Instructions for re-
installing the suspensions are
shown on the following page(s).
2.
Slide interlock mechanism
along cable to new position.
Install into case side and make
sure snaps engage slots.
1a
TAB
CASE
1b
BACKER
