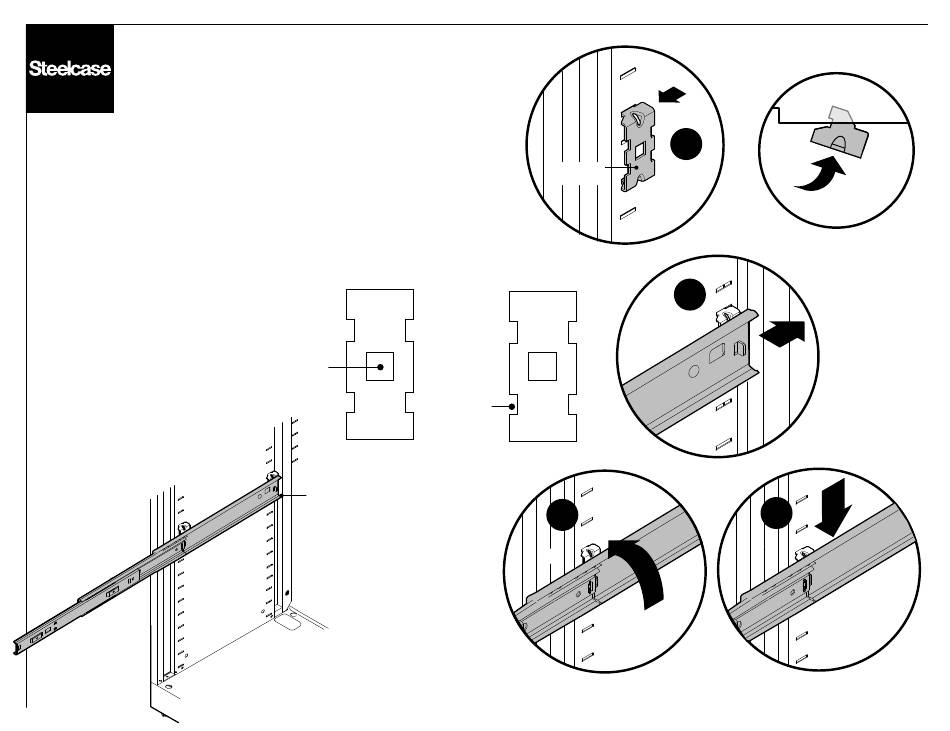

Installation of Non-
Shrouded Offset
Suspension
1.
Insert offset brackets by placing
tab into slot and rotating sideways
(1a) and then pushing sideways (1b).
2.
Install suspension by putting the
suspension hook in the rear of the
offset bracket.
3.
Rotate front hook of suspension
inward into rectangular slot.
4.
Push down to engage second tab
in front.
Front Bracket
SUSPENSION
INSERTS
HERE
SUSPENSION
REAR END OF
SUSPENSION
OFFSET
BRACKET
Rear Bracket
INSERTS
HERE
3
Top View
1
2
4
Page 10 of 16
939504872 Rev D
