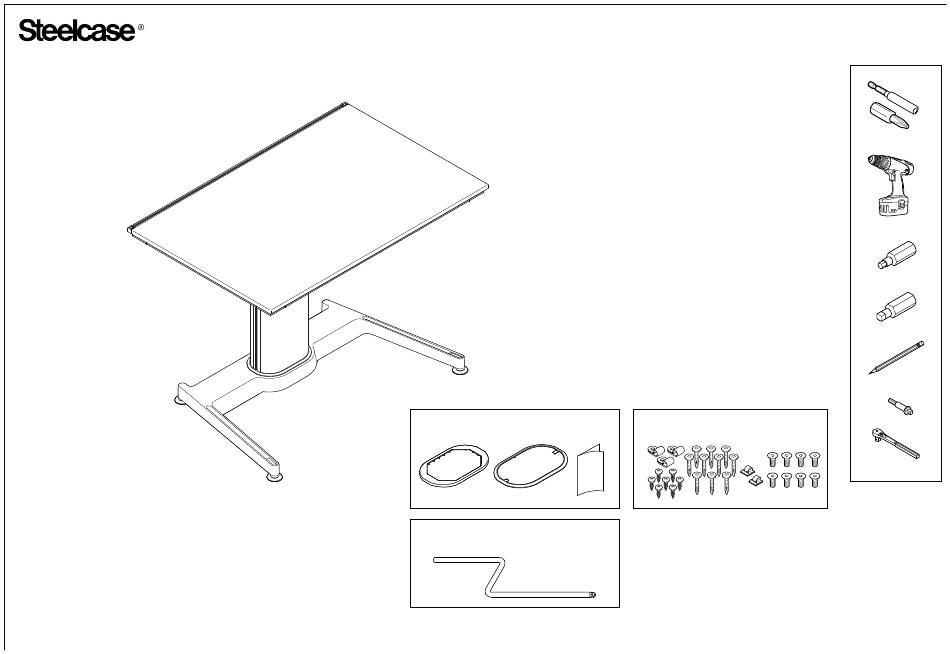

- Page 1 Manifesto - Airtouch Height Adjustable Desk Hardware Bag Hardware Bag Power Adjustment Tool packed with an Airtouch unit Page 1 of 10 April 2012...
- Page 2 Manifesto - Airtouch Height Adjustable Desk Adjusting Airtouch Power 1a. Install users computer and other worktools. Important: If the users equipment is not available, adjust the power to the mid point. 1b. Determine if more or less power is required: Release the brake handle and adjust worksurface to its maximum height (fully extended).
- Page 3 Manifesto - Airtouch Height Adjustable Desk Airtouch Assembly CAUTION Fully extend the unit before removing the phillips drive fasteners that attach the base and worksur- face to the mechanism. Failure to do so could acti- vate the mechanism and result in personal injury. TOP PLATE CAUTION Fully extend the unit before assembling.
- Page 4 Manifesto - Airtouch Height Adjustable Desk Airtouch Assembly Install glides, 4 places. Screw glides all the way in. CAUTION Be careful not to cross-thread glides upon installation. This This Ai rto Ai rto lowe lowe r whe r whe nds. nds.
- Page 5 Manifesto - Airtouch Height Adjustable Desk Airtouch Assembly Install trim ring. Install top cap by sliding down column and snap- ping into place. Ai rto t of is opt imiz limi ical nism a ma auto is plac with s unit will load This...
- Page 6 Manifesto - Airtouch Height Adjustable Desk Airtouch Assembly 10. Remove plate from worksurface. Do not discard screws. 11. Begin re-installing the top plate by sliding the brake cable into the slot on the top plate then lower- ing the top plate onto the top of the column and attach the top plate using five (5) 1/4-20 x 1”...
- Page 7 Manifesto - Airtouch Height Adjustable Desk Airtouch Assembly 12. Place the Column Assembly onto the Worksurface. 13. Push it into the Waterline Slot (at the side with screw holes) Page 7 of 10 April 2012...
- Page 8 Manifesto - Airtouch Height Adjustable Desk Airtouch Assembly 14. Screw the plate to the worksurface. 15. Route the cable and screw the handle. Fix the cable clips. Note: Ensure the cable is routed properly without kinks to prevent the failure of mecha- nism.
- Page 9 Manifesto - Airtouch Height Adjustable Desk Installing and Removing Handle from Cable Slide the cable between the tubing on the keyboard mechanism and the bottom side of monitor top. Insert the cable through the hole in the outer handle housing. Slide the cylindrical tip of the cable through the hole in the handle and twist the handle into the correct position.
- Page 10 Manifesto - Airtouch Height Adjustable Desk Installing and Removing Handle from Cable Place the handle, with cable attached, into the outer handle housing as shown. Secure the cable to the outer handle housing by pushing the cable to the left until the cable snaps securely into place.
