Install the Access Point on a Flat T-bar Using the
DCFLUSH bracket
About This Task
The WS-MBI-DCFLUSH (#37211) bracket is used on a flat T-bar when you do not want to use the main
mounting bracket on it.
Procedure
1. Remove the ceiling panels around the T-bar.
2. Open the movable sliding part of the DCFLUSH bracket to give the stationary and slider T-bar more
space.

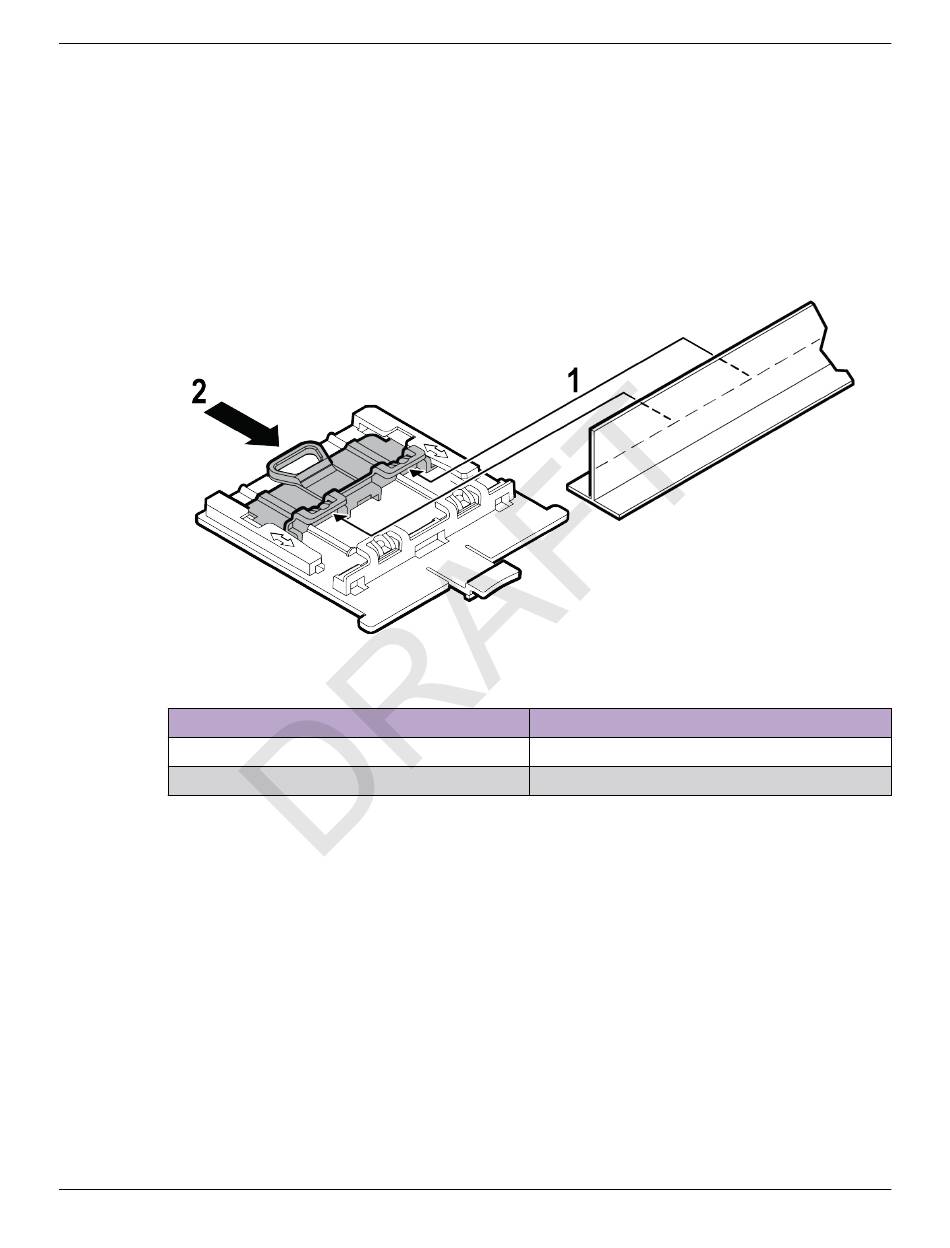

Figure 6: DCFLUSH bracket parts and T-bar
Callout
1
2
3. Hook the stationary end of the bracket onto the T-bar.
4. Tilt the T-bar up slightly in such a way that you are holding the stationary and movable parts of the
bracket.
5. Squeeze the bracket parts together until you hear the T-bar locking tab click into place.
6. Slide the bracket base into the rear groove of the access point.
7. Hold and rock the access point back and forth to ensure that it is securely mounted.
8. Attach the RJ45 connector to the GE1 port.
9. Replace the ceiling tiles.
26 ExtremeWireless™ AP310i/e Access Points
Description
T-bar
Movable sliding part of the DCFLUSH bracket
Install the Access Point
