Install the Access Point

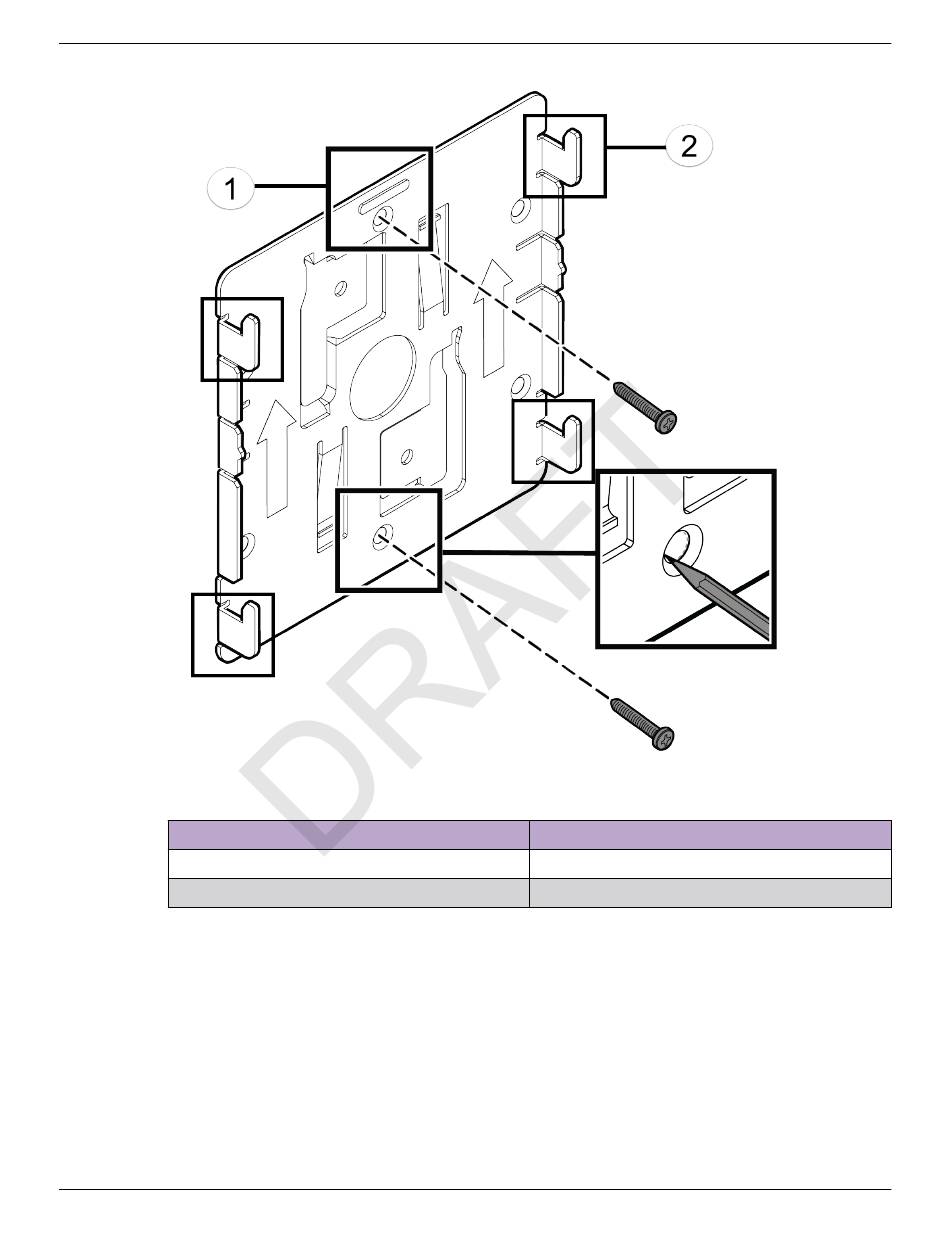

Figure 1: Main mounting bracket
Callout
1
2
2. Insert the Phillips pan head screws into the main mounting bracket holes and attach the bracket to
the wall.
Use screw-in anchors, if needed.
3. Connect the Ethernet cable RJ45 connector into the GE1 port.
4. Place the access point onto the bracket feet and slide it down to lock it in place.
Install a Security Torx Locking Screw
About This Task
The security torx locking screw is used to prevent the access point from being removed from the main
mounting bracket (#37201). There are two security lock screw holes on the rear of the access point.
Install the Access Point Using the Main Mounting
Description
Main mounting bracket mounting holes
Main mounting bracket feet
