CHAPTER 6 CONNECTORS AND PINOUT
6. Introduction to the chapter
In this chapter are presented the connectors that can be found on the board all together with their
pinout and notes about them. Jumpers functions are described. Notes and info on specific
peripherals are presented. Notes regarding the interfaces are given.
6.1 USB connector
The USB type B connector allows you to access the USB functionality of STM32-H405. This
connector is can be used to power the board. The connector is sturdy and typically lasts much
longer during extensive use compared to the USB mini or USB micro connectors.
Note the DFU bootloader uses the USB port.

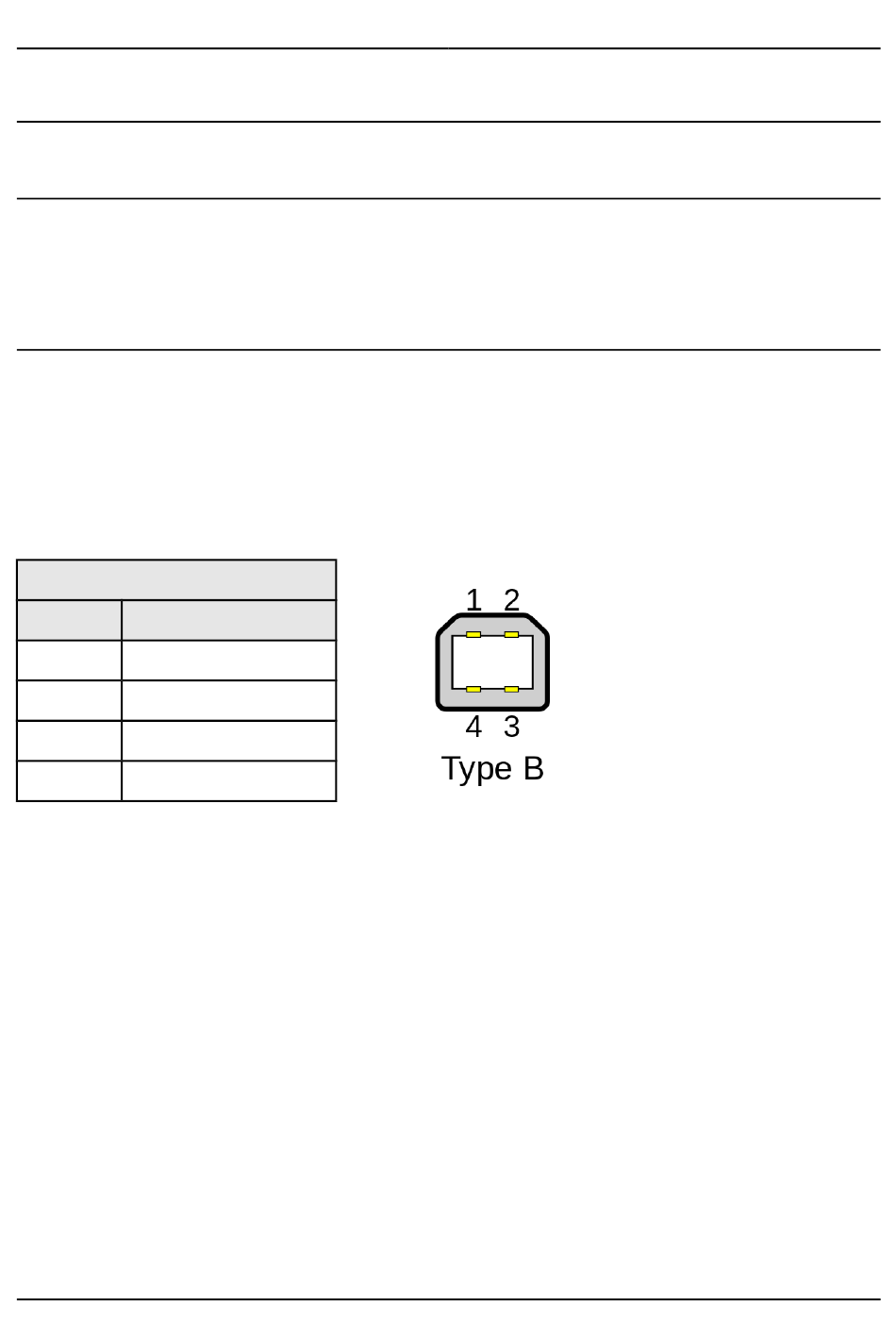

The signals follow the familiar and standard USB pattern:
USB Type B
PIN#
SIGNAL NAME
1
+5V_USB
2
USBDM
3
USBDP
4
GND
