Page 1: Users Manual

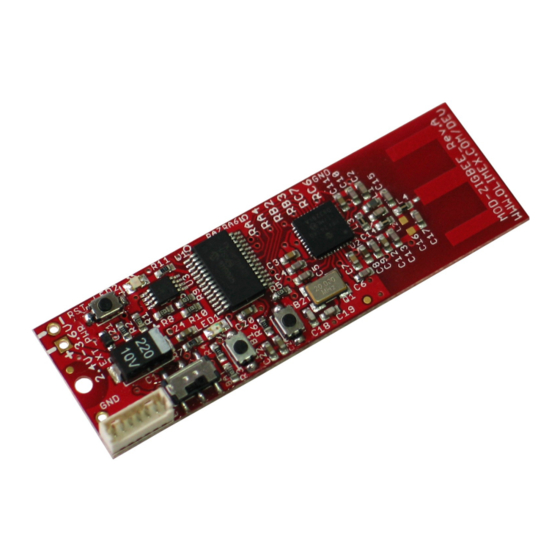

MOD-ZIGBEE development board Users Manual All boards produced by Olimex are ROHS compliant Rev. B, March 2013 Copyright(c) 2011, OLIMEX Ltd, All rights reserved Page 1 of 17... -
Page 2: Board Features
INTRODUCTION MOD-ZIGBEE features a bundle of 8bit PIC18 processor and an 802.15.4 compatible radio module that makes it easy to develop applications based on RF communication and especially ZigBee based protocol stacks. In addition MOD- ZIGBEE implements an on-board digital temperature sensor, for remote temperature reporting. -
Page 3: Processor Features
PROCESSOR FEATURES MOD-ZIGBEE use 28-pin Flash Microcontroller with nano Watt XLP Technology – PIC18F26K20, with these features: − High-Performance RISC CPU: − C Compiler Optimized Architecture: − Optional extended instruction set designed to optimize re- entrant code − 1024 bytes Data EEPROM −... - Page 4 Programmable period from 4 ms to 131s − Single-Supply 3V In-Circuit Serial Programming™ (ICSP™) via Two − Pins In-Circuit Debug (ICD) via Two Pins − Extreme Low-Power Management with nanoWatt XLP: − Sleep mode: < 100 nA @ 1.8V − Watchdog Timer: <...
-
Page 5: Block Diagram
BLOCK DIAGRAM Page 5 of 17... -
Page 6: Memory Map
MEMORY MAP Page 6 of 17... - Page 7 RF TRANSCEIVER FEATURES IEEE 802.15.4™ Standard Compliant RF Transceiver − Supports ZigBee®, MiWi™, MiWi P2P and Proprietary Wireless Networking − Protocols Simple, 4-Wire SPI Interface − Integrated 20 MHz and 32.768 kHz Crystal Oscillator Circuitry − Low-Current Consumption: − RX mode: 19 mA (typical) −...
- Page 8 RF TRANSCEIVER BLOCK DIAGRAM Page 8 of 17...
- Page 9 RF TRANSCEIVER MEMORY MAP Page 9 of 17...
- Page 10 100nF LED2 TEMP_INT IT1185AU2 RA1/AN1/C12IN1 ALERT DT/RX/RC7 (#OS/INT) RA2/AN2/VREF-/CVREF/C2IN+ 100nF RA3/AN3/VREF+/C1IN+ RA4/T0CKI/C1OUT TCN75AVUA RA5/AN4/SS#/HLVDIN/C2OUT PIC18F26K20-I/SS MOD-ZIGBEE_rev_C BUTTONS&LEDS ICSP UEXT OLIMEX LTD, BULGARIA https://www.olimex.com LED1 LED2 ICSP RST_ICSP 560R 560R UEXT 330R 330R LED1 LED2 MISO MOSI green WU6S IDC10S-PCB 100nF...
-
Page 11: Board Layout
BOARD LAYOUT POWER SUPPLY CIRCUIT MOD-ZIGBEE may be power supplied in different ways: 2.4V - 3.6V via EXT_PWR; via ICSP connector (useful for debugging); via BAT connector with +3V Lithium battery (CR2032). The programmed board power consumption is about 30mA with RF transceiver active, and 10µA in deep sleep mode. -
Page 12: Connector Descriptions
CONNECTOR DESCRIPTIONS ICSP Pin # Signal Name RST-ICSP EXT_PWR Pin # Signal Name 2.4 V – 3.6 V *Note: There is no component mounted for this connector. JUMPER DESCRIPTION There are no jumpers on this board. INPUT/OUTPUT User button with name B1 – connected to PIC18F26K20 pin 26 (PGM/KBI1/RB5). User button with name B2 –... -
Page 13: Mechanical Dimensions
MECHANICAL DIMENSIONS Page 13 of 17... -
Page 14: Available Demo Software
AVAILABLE DEMO SOFTWARE Available at https:// www.olimex.com This sample project demonstrates the functionality of the onboard processor, the radio transceiver and the thermometer. The demo is built upon the following Microchip's freely distributed support libraries: - Microchip MiWi Development Environment version 3.1 The demo defines 2 types of devices: Coordinator and End Devices. - Page 15 If the Coordinator disappears for some reason the end device enters startup state again. *Note: With the introduction of MOD-LCD1x9 and MOD-ZIGBEE rev.B you have the ability to make an assembly between the to and have status messages and current temperature value displayed on the LCD, even when deep sleeping. To enable this feature of the End Device demo just uncomment "USING_MOD_LCD1x9"...
-
Page 16: Order Code
ORDER CODE MOD-ZIGBEE assembled and tested. How to order? You can order to us directly or by any of our distributors. www.olimex.com/ Check our web https:// for more info. Revision history: REV. Initial - created March 2011 Rev. B - created January 2013... - Page 17 This document is intended only to assist the reader in the use of the product. OLIMEX Ltd. shall not be liable for any loss or damage arising from the use of any information in this document or any error or omission in such information or any incorrect use of the product.
- Page 18 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Olimex Ltd. MOD-ZIGBEE...
