Chameleon Wash
LED Moving Head
28pcs 25W RGBW 4-in-1 LED
User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
1 / 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZOOM 2825 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FOS Technologies ZOOM 2825

Summary of Contents for FOS Technologies ZOOM 2825

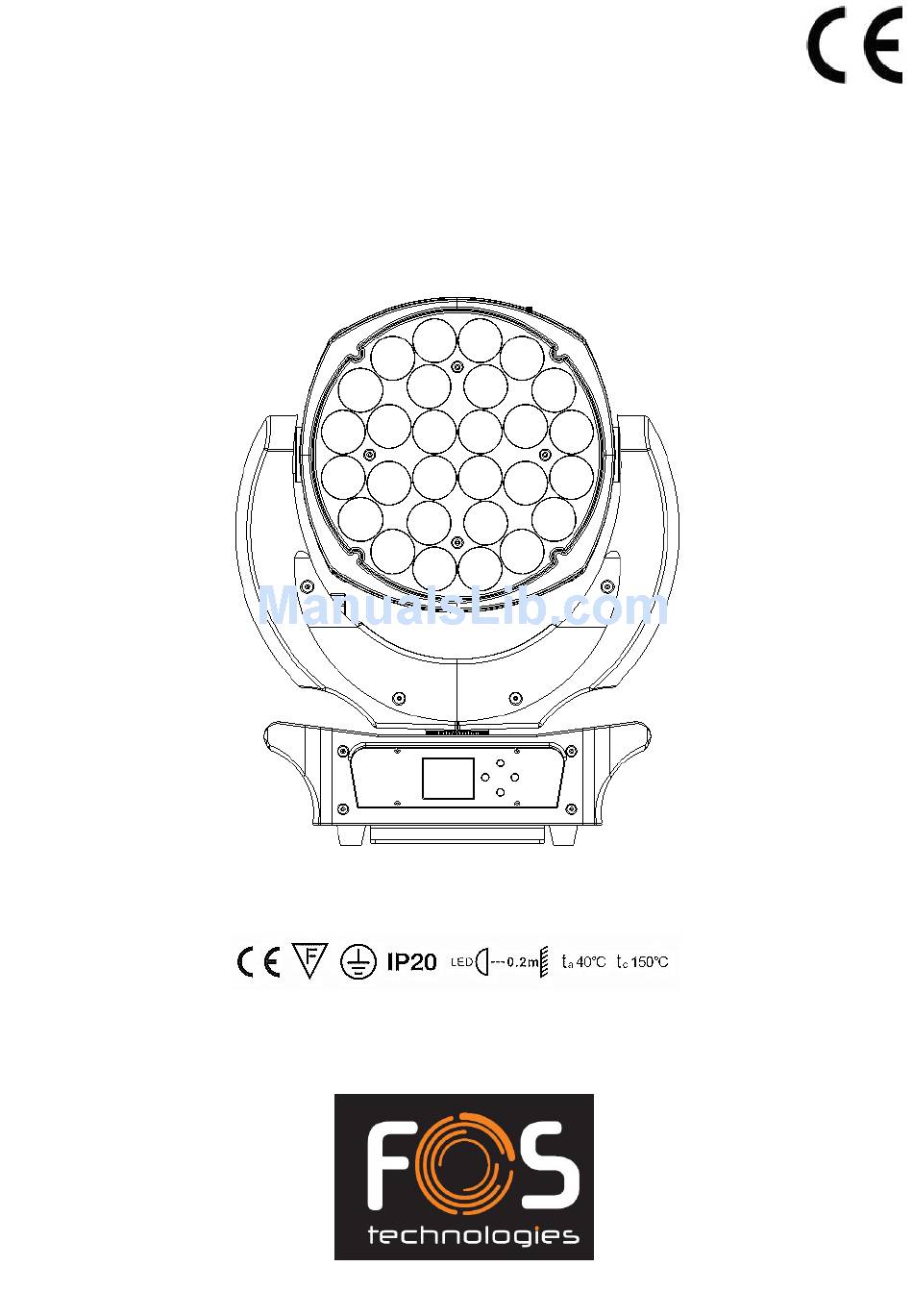

  • Page 1 Chameleon Wash LED Moving Head 28pcs 25W RGBW 4-in-1 LED User Manual KEEP THIS MANUAL FOR FUTURE NEEDS 1 / 12...

  • Page 2: Fixture Size

    1. Unpacking Thank you for choosing our ZOOM 2825. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs.

  • Page 3: Safety Instructions

    3. Safety Instructions This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately.

  • Page 4: Mounting And Installation

    4. Operation Instructions -The LED par is for wash effect for on-site decoration purpose. -Don’t turn on the fixture if it’s been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature.
  • Page 5 Never stand directly below the device when mounting, removing, or servicing the fixture from a periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.

  • Page 6: Dmx-512 Control Connections

    6. DMX-512 control connections Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. (5-pin connect way is similar) You can chain multiple Moving heads be connected together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors.

  • Page 7: Dmx Channels

    7. DMX Channels 24CH Function Details 0-255 Pan movement Pan fine 0-255 Pan fine Tilt 0-255 Tilt movement Tilt fine 0-255 Tilt fine Pan/Tilt speed 0-255 Pan/Tilt speed control ZOOM 0-255 Zoom Dimmer 0-255 0-100% linear dimmer 0-15 LED on 16-135 Strobe from slow to fast Strobe...
  • Page 8 72CH Function Details 0-255 Pan movement Pan fine 0-255 Pan fine Tilt 0-255 Tilt movement Tilt fine 0-255 Tilt fine Pan/Tilt speed 0-255 Pan/Tilt speed control ZOOM 0-255 Zoom Dimmer 0-255 0-100% linear dimmer 0-15 LED on 16-135 Strobe from slow to fast Strobe 136-209 Pulse strobe...

  • Page 9: Display Instruction

    8. Display instruction Address 1-512 24CH Channel Mode 72CH Your edited channel User Mode Sequence mode Edit the channel sequence Channel Edit of User mode Keep Clear UseMode No DMX Mode Auto Music Scene Alone Auto prog Maste Alone Sound prog Maste Chinese Language setting...
  • Page 10 9. Photometric Data: LUX Data of 5 degree beam angle: 7650 lux@4m 3500 lux@6m 2100 lux@8m 19200 lux@4m 8500 lux@6m 5050 lux@8m 2450 lux@4m 758 lux@6m 465 lux@ 8m 21150 lux@4m 9250 lux@6m 5380 lux@8m RGBW 47250 lux@4m 20500 lux@6m 12350 lux@8m LUX Data of 60 degree beam angle: 351 lux@4m...
  • Page 11 10. Key Featur Voltage: AC90-240V 50-60HZ Max Power: 980 w Source: 28pcs 25w hight brightness RGBW 4-in-1 leds Dimmer: 0-100% linear dimming system Strobe: 1-25 times/second Pan:540°with 16 bit fine Tilt:270° with 16 bit fine Zoom: 5-60°Smooth and fast zoom system LED working lifetime: Average 50,000 hours with low power consuption Channel: 24/72 two DMX channel mode Control: DMX512/master-slave/auto/sound...

  • Page 12: Maintenance And Cleaning

    11. Maintenance and Cleaning The following points have to be considered during the inspection: 1. All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2. There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing).
