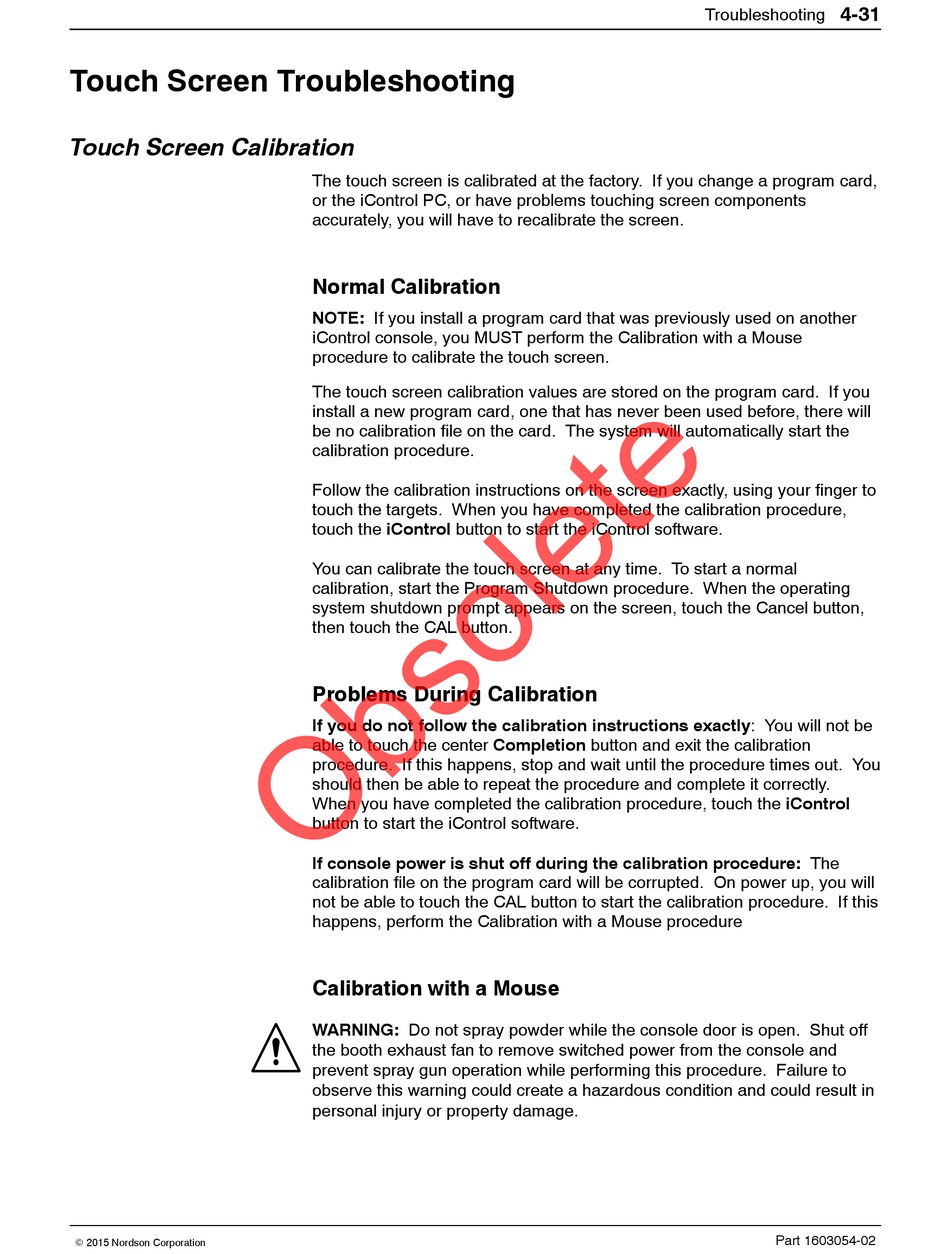

Touch Screen Troubleshooting

Touch Screen Calibration

E 2015 Nordson Corporation
The touch screen is calibrated at the factory. If you change a program card,
or the iControl PC, or have problems touching screen components
accurately, you will have to recalibrate the screen.

Normal Calibration

NOTE: If you install a program card that was previously used on another
iControl console, you MUST perform the Calibration with a Mouse
procedure to calibrate the touch screen.
The touch screen calibration values are stored on the program card. If you
install a new program card, one that has never been used before, there will
be no calibration file on the card. The system will automatically start the
calibration procedure.
Follow the calibration instructions on the screen exactly, using your finger to
touch the targets. When you have completed the calibration procedure,
touch the iControl button to start the iControl software.
You can calibrate the touch screen at any time. To start a normal
calibration, start the Program Shutdown procedure. When the operating
system shutdown prompt appears on the screen, touch the Cancel button,
then touch the CAL button.

Problems During Calibration

If you do not follow the calibration instructions exactly: You will not be
able to touch the center Completion button and exit the calibration
procedure. If this happens, stop and wait until the procedure times out. You
should then be able to repeat the procedure and complete it correctly.
When you have completed the calibration procedure, touch the iControl
button to start the iControl software.
If console power is shut off during the calibration procedure: The
calibration file on the program card will be corrupted. On power up, you will
not be able to touch the CAL button to start the calibration procedure. If this
happens, perform the Calibration with a Mouse procedure

Calibration with a Mouse

WARNING: Do not spray powder while the console door is open. Shut off
the booth exhaust fan to remove switched power from the console and
prevent spray gun operation while performing this procedure. Failure to
observe this warning could create a hazardous condition and could result in
personal injury or property damage.
