Periodic maintenance

In order to ensure the highest-possible availability and to avoid subsequent damage caused by insufficient lubricati-
on, periodic maintenance must be carried out in the device according to the following instructions.
The maintenance intervals are orientated according to the degree of usage (see maintenance requirements table
2.2) and the number of strapping cycles carried out. However, we recommend performing a service at least every
two years.
In addition, the details in the operating instructions (section 6.1) apply with regard to smaller maintenance work by
the customer.
2.1

Implementation

2.1.1 Cleaning
● Cleaning the tensioning and sealing area of the device from strap particles (with compressed air).
● Removal of excess contamination on other components of the device.
2.1.2 Visual check
● Is there any visible damage to the housing, base plates and other components that is relevant for its func-
tioning?
● Are all screws and other components that could be removed present and tight, and are they the original
part?
● Does the strap width setting match with the strap in use?
Refer to operating instructions (chapter 5.3).
● Are all original wear parts with correct article number installed?
Refer to operating instructions (chapters 6.4, 6.5 and 6.6).
2.1.3 Function test
● Inserting the rechargeable battery:
● Check the user interface function:
● Pull up the rocker lever and hold it:
● Actuate the tensioning and sealing button:
● Insert and tension the strap:
● Weld the strap:
● Remove the device from the strap
● Check the welding:
2.1.4 Maintenance
● If an error has occurred during the function test, first continue with rectification according to chapter 3.
● Carrying out maintenance according to chapters 2.2, 2.3, 2.4 and 2.5.

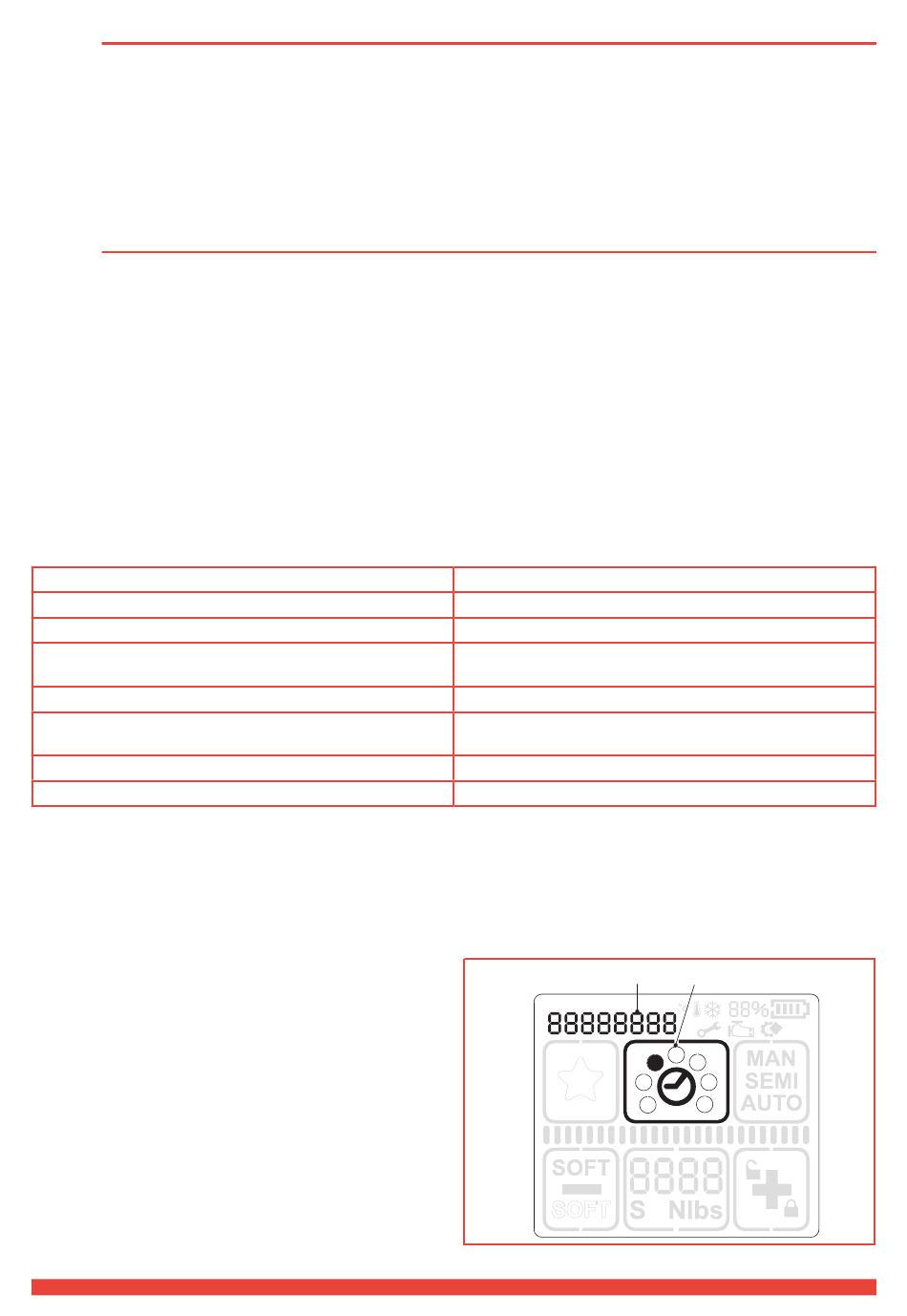

2.1.5 Read out the cycle counter
► Touch the operating panel, the backlight lights up.
► Press the «Welding time" button (1) and hold it for two
seconds.
► Raise the rocker lever. Now the number of cycles (2) is
displayed at the top of the display.
V 07.17
The backlight should illuminate briefly
Are all buttons functional? Select MAN Mode
Rocker opening and strap guide display okay?
With the lever pulled up, only one beeping tone sounds
per each button?
Is the strap tension range matching the strap size?
End of cooling time display? (green backlight and buz-
zer)
Did any issues occur?
Weld quality and strap cutting are okay?
Service Manual BXT3-13/16/19
2 1
