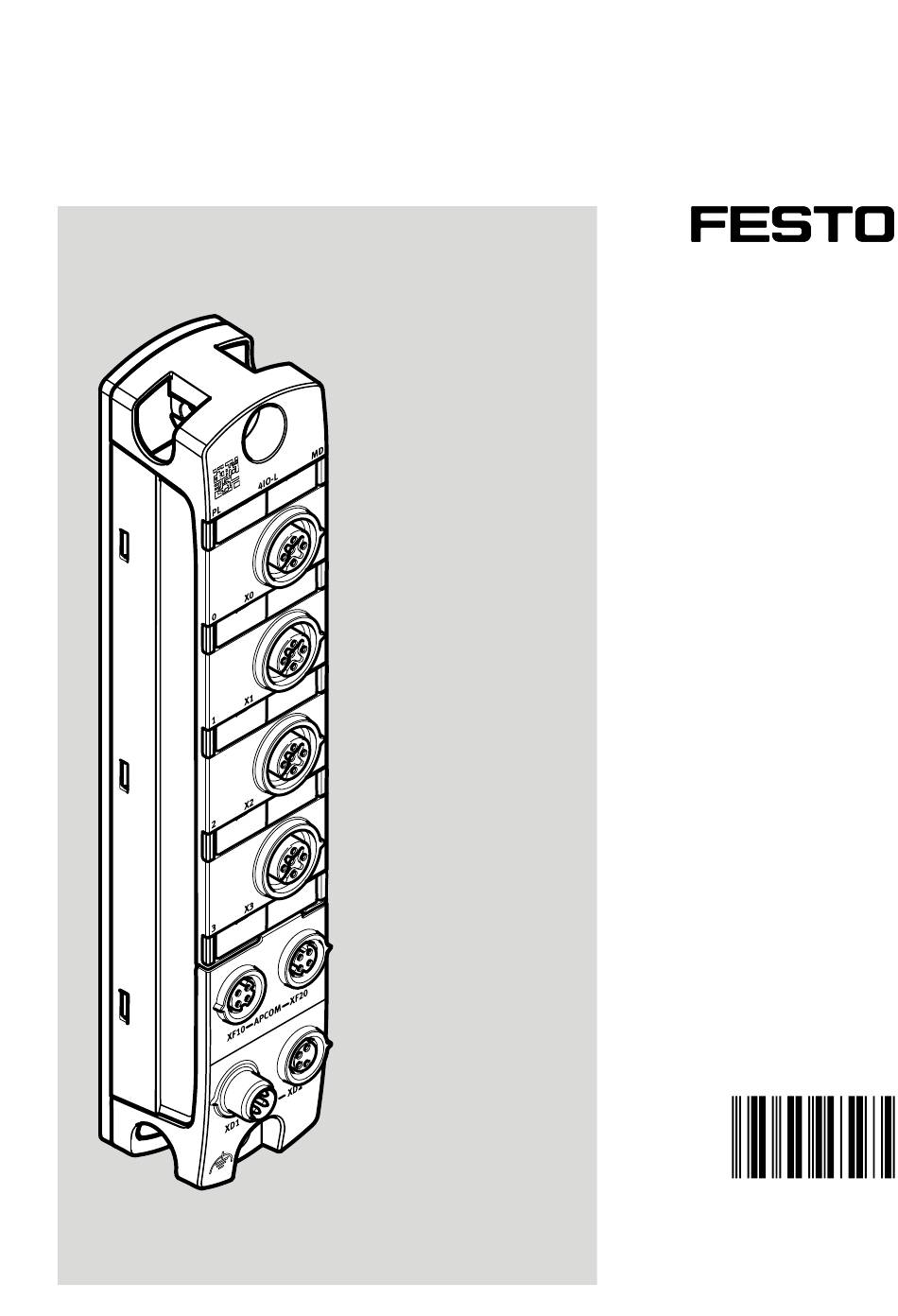

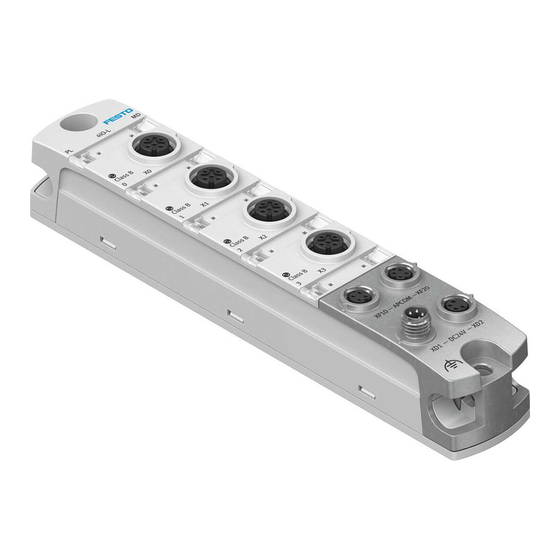

  • Page 1 CPX-AP-I-4IOL-M12 IO-Link master Instructions | Operat- 8099730 8099730 2020-03 [8099732]...
  • Page 2 Translation of the original instructions ® IO-Link is a registered trademark of its respective trademark holder in certain countries. Festo — CPX-AP-I-4IOL-M12 — 2020-03...

  • Page 3: Table Of Contents

    Address space (data length inputs/outputs)..............10 IO-Link Device description file (IO-Link Device Description)...........10 Parameterisation......................10 Diagnostics and fault clearance.................. 13 10.1 Diagnostic messages....................13 10.2 LED displays......................... 16 10.3 Event codes........................19 Disposal........................26 Technical data......................27 Festo — CPX-AP-I-4IOL-M12 — 2020-03...

  • Page 4: About This Document

    The product labelling is located on the right-hand side of the module. The Data Matrix code is on the connection side. Scanning the printed Data Matrix Code with an appropriate device opens the Festo Support Portal with the information appropriate for the product. Alternatively, the Product Key (11-digit alphanumeric code on the product labelling) can be entered in the search field of the Support Portal è www.festo.com/sp.

  • Page 5: Safety

    The qualified personnel must be familiar with installation of electrical control systems. Additional information – Accessories è www.festo.com/catalogue. Service Contact your regional Festo contact person if you have technical questions è www.festo.com. Product overview Function The module provides four IO-Link Ports Class B (type B) for connecting IO-LinkDevicesto an automa- tion system CPX-AP.

  • Page 6: Configuration

    10 Mounting interface connection side bottom and connection functional earth FE 11 Mounting interface, lateral bottom and connection for functional earth FE 12 Inscription label (optional) 13 Mounting interface, lateral top Fig. 1 Product design Festo — CPX-AP-I-4IOL-M12 — 2020-03...

  • Page 7: Led Displays

    5.2.3 Connecting elements Connection for power supply [XD1] Plug M8, 4-pin, A-coded Signal +24 V DC logic supply PS 0 V DC load supply PL 0 V DC logic supply PS +24 V DC load supply PL Tab. 4 Connection for power supply Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 8 +24 V DC operating voltage supply PS +24 V DC load voltage supply PL 0 V DC operating voltage supply PS – Standard IO (in SIO mode) or IO-Link communication (in IOL mode) 0 V DC load voltage supply PL Tab. 8 Connection IO-Link Ports Festo — CPX-AP-I-4IOL-M12 — 2020-03...

  • Page 9: Assembly

    Tab. 9 Behaviour of the LED displays of the module after error-free commissioning Information on troubleshooting in the event of incorrect behaviour: è Instruction manual for automation system CPX-AP è 10 Diagnostics and fault clearance Festo — CPX-AP-I-4IOL-M12 — 2020-03...

  • Page 10: Address Space (Data Length Inputs/Outputs)

    CPX-AP. IO-Link Device description file (IO-Link Device Description) IO-Link Device information can be imported into the module via an IO-Link device description file. The "Festo IO-Link Tool" software can be used to import the IO-Link device description file è www.festo.com/sp. Parameterisation Various parameters are available for reading out information about the modules in an automation sys- tem CPX-AP and adapting the modules to the application situation.
  • Page 11 0: no test (factory setting) – 1: device compatible V1.0 – 2: device compatible V1.1 – 3: device compatible V1.1 Data storage Backup+ Restore – 4: device compatible V1.1 Data storage Restore – 20073 Target vendor ID UINT16 Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 12 Actual vendor ID UINT16 – 20079 Actual device ID UINT32 – 20108 Input data length UINT8 – 20109 Output data length UINT8 1) ro = read only; rw = read write Tab. 12 Fieldbus parameters (status/information) Festo — CPX-AP-I-4IOL-M12 — 2020-03...

  • Page 13: Diagnostics And Fault Clearance

    Diagnostic messages of an IO-Link device are sent to the IO-Link master via event codes. The event code is mapped in the IO-Link master to a diagnostics ID è 10.3 Event codes. Information on grouping and displaying the diagnostic messages è Instruction manual for the auto- mation system CPX-AP. Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 14 Diagnost- Error ic status 08   01   0130 Output process data Output process data watchdog of the AP module expired (134283568) watchdog of the AP Remedy – Restart AP system. module expired – Check the cable. Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 15 No I / O function avail- Operation able. Remedy – Restart system. – Update firmware to the latest version. – Contact Festo Service. Diagnost- Error ic status Tab. 14 Diagnostic messages Festo — CPX-AP-I-4IOL-M12 — 2020-03...

  • Page 16: Led Displays

    PL Illuminated red – Module ramp-up not yet completed. System communication not yet initial- ised. LED flashes red quickly – Module identification (service function) Flashes quickly green Tab. 15 LED module diagnostics [MD] Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 17 Load supply PL available. Illuminated green Load supply PL not available. Check load supply PL. Flashes green Load supply PL outside the tolerance Check load supply PL. range. Flashes red Tab. 16 LED load supply [PL] Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 18 Adjust process data length. insufficient – Data memory error Check data memory. – Invalid cycle time Adjust cycle time (  parameter 20049). è – Incorrect protocol revision Device not compatible with set configur- ation (  parameter 20072). è Festo — CPX-AP-I-4IOL-M12 — 2020-03...

  • Page 19: Event Codes

    Warning 3: Error Error – Mode 0: reserved Type 1: Event single shot 0: Inform 2: Event disappears 2: Resolve 3: Event appears 1: Raise Tab. 18 Mapping to the attributes of the diagnostic message Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 20 DataStorageIndex not available available – Remedy Diagnost- Error ic status 180Bh 08   0A   0185 Backup inconsist- IO-Link Backup/Restore failed. Unspecific ency; non-specific error in data memory error during data stor- – Remedy Diagnost- Error ic status Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 21 The connected sensor is defective or gener- 1807h in sensor supply ates too much load on its channel. Remedy – Check sensor for correct func- tion, in particular for current consumption. – Check sensor cabling. Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 22 Repair or replace IO-Link device. Diagnost- Error ic status 5010h 10   02   0146 Malfunction of a Malfunction of a component of the IO-Link device component device Remedy – Repair or replace IO-Link device. Diagnost- Error ic status Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 23 Diagnost- Error ic status Warning 5112h 02   01   0105 Undervoltage in load Undervoltage in the load supply PL 24 V DC supply PL 24 V DC has been detected. Remedy – Check load supply PL. Diagnost- Error ic status Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 24 Earth fault; check Earth fault check installation. – installation. Remedy – Check installation. Diagnost- Error ic status 8C00h 0B   00   0163 Technology-specific Technology-specific application error application error Remedy – Reset device. Diagnost- Error ic status Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 25  01   0168 Maintenance require- Maintenance cleaning – ments; Cleaning Remedy – Clean device. Diagnost- Warning ic status 8C41h 0C   00   0169 Maintenance Maintenance required refill – required; refill Remedy – Refill. Diagnost- Warning ic status Festo — CPX-AP-I-4IOL-M12 — 2020-03...

  • Page 26: Disposal

     Description IO-Link Master or è IO-Link device Diagnost- Information ic status Warning Error Tab. 20 IO-Link device event codes Disposal ENVIRONMENT! Send the packaging and product for environmentally sound recycling in accordance with the current regulations è www.festo.com/sp. Festo — CPX-AP-I-4IOL-M12 — 2020-03...

  • Page 27: Technical Data

    SELV/PELV circuits tric shock (protection (safe extra-low voltage/protected extra-low voltage) against direct and indirect contact in accordance with IEC 60204-1) Electromagnetic com- See declaration of conformity  www.festo.com è patibility Mounting position Tab. 21 General technical data Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 28 24 V PL to 0 V PL [nF] Typ. 35 24 V PL to FE [nF] Typ. 35 0 V PL to FE [nF] Typ. 20 Undervoltage identification in logic supply PS Trigger level [V DC] Hysteresis [V DC] Tab. 22 Power supply Festo — CPX-AP-I-4IOL-M12 — 2020-03...
  • Page 29 4/1.5 (max.) not on all ports simultaneously (per module/Port) PL short-circuit protec- tion External fuse protection via circuit breaker required. PL reverse polarity pro- yes (internal only) tection Electrical isolation Between the ports Between PS and PL Tab. 23 IO-Link Ports Festo — CPX-AP-I-4IOL-M12 — 2020-03...
