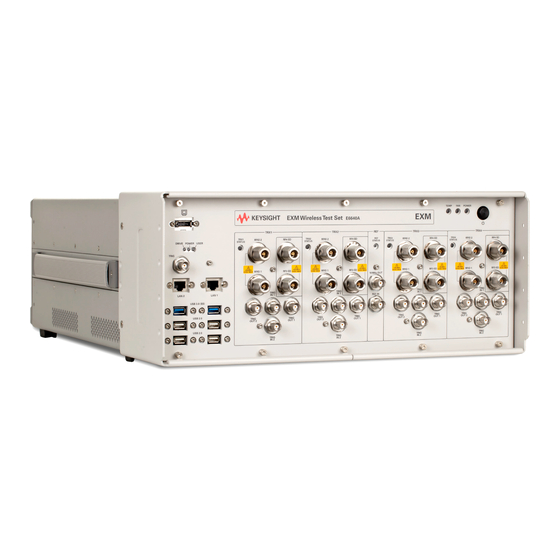

Keysight E6640A EXM Wireless Test Set
Notice: This document contains references to Agilent.
Please note that Agilent's Test and Measurement busi-
ness has become Keysight Technologies. For more in-
formation, go to www.keysight.com.
Getting Started
Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E6640A and is the answer not in the manual?

Questions and answers

Related Manuals for Keysight Technologies E6640A

Summary of Contents for Keysight Technologies E6640A

  • Page 1 Keysight E6640A EXM Wireless Test Set Notice: This document contains references to Agilent. Please note that Agilent’s Test and Measurement busi- ness has become Keysight Technologies. For more in- formation, go to www.keysight.com. Getting Started Guide...
  • Page 2 Notices Manual Part Number © Keysight Technologies, Inc. 2014 contract clause. Use, duplication or disclo- sure of Software is subject to Keysight Tech- No part of this manual may be reproduced in E6640-90001 nologies’ standard commercial license any form or by any means (including elec-...
  • Page 3 This Keysight Technologies product is warranted against defects in material and workmanship for a period of one year from the date of shipment. during the warranty period, Keysight Technologies will, at its option, either repair or replace products that prove to be defective.
  • Page 4 Where to Find the Latest Information Documentation is updated periodically. For the latest information about this test set, including firmware upgrades, application information, and product information, see the following URLs: http://www.keysight.com/find/e6640a Information on preventing test set damage can be found at: http://www.keysight.com/find/PreventingInstrumentRepair...

  • Page 5: Table Of Contents

    Contents 1 Quick-Start About the Test Set Initial Inspection Shipping problems? Test Set Location and Mounting Requirements Locating the test set Cooling and rack mounting Turning on the test set the first time Initializing the test set using a USB mouse and external monitor Options and Licenses Option 4FD Anti-Virus Software and Firewalls...
  • Page 6 “All” Alignment (daily use) Weekly alignment procedure TRX Selection Using HiSLIP Using Socket Ports Using VXI-11/SICL Using Telnet Connection E6640A Calibration Status Certificates of Calibration Desktop Icons TRX Configurator Launch XSA Configure Applications Port Configuration Full Duplex Port Setup (RFIO 1 and RFIO 2)
  • Page 7 Switched MIMO Results True MIMO TRX Configurations Source Settings for MIMO Constraints on TRX Selection Constraints on Radio Standards MIMO Type Remote Analyzer Configuration MIMO Modulation Analysis measurement SCPI commands MIMO Modulation Analysis Results Tx Beam Forming Tx Beam Forming Commands Tx Beam Forming Results 4 Test Set Operating System Keysight Software Installed...
  • Page 8 Settings that must not be changed Configuring Printers Configuring LAN Hostname IP Address & Gateway Windows Security Windows Firewall Automatic updates Virus protection Spyware protection System Maintenance Backup System restore Disk defragmenting USB Connections Hard Drive Partitioning and Use Hard Drive Recovery Process Updating the software Configuring recovery prompt timing 5 Using Microsoft Windows Operating System...
  • Page 9 6 Troubleshooting Check the Basics Problems with Microsoft Windows Operating System Returning a test set for Service Calling Keysight Technologies Locations for Keysight Technologies Read the Warranty Service Options Packaging the Test Set Index Getting Started Guide...
  • Page 10 Getting Started Guide...

  • Page 11: Quick-Start

    Keysight E6640A EXM Wireless Test Set Getting Started Guide Quick-Start This section explains how to initialize the test set and generate and view a signal. The following topics can be found in this section: “About the Test Set" on page 12 “Initial Inspection"...

  • Page 12: About The Test Set

    Quick-Start About the Test Set The E6640A EXM Wireless Test set contains one to four keysight M9430A TRXs. Each TRX contains the full set of hardware elements illustrated below, and is run by its own instance of the XSA firmware application (a fully loaded test set shows four independent XSA windows on its monitor display).
  • Page 13 Quick-Start The TRX includes a signal analyzer and a signal source, both of which interface with the front panel of the test set through an input/output matrix, and each of which is controlled by an independent list sequencer (the two sequencers exchange trigger signals to coordinate their operations).

  • Page 14: Initial Inspection

    Inspect the shipping container and the cushioning material for signs of stress. Retain the shipping materials for future use, as you may wish to ship the test set to another location or to Keysight Technologies for service. Verifying the contents...

  • Page 15: Shipping Problems

    Contact the nearest Keysight Technologies office. • Keep the shipping materials for the carrier’s inspection. • If you must return an test set to Keysight Technologies, use the original (or comparable) shipping materials. See “Returning a test set for Service" page 141.

  • Page 16: Test Set Location And Mounting Requirements

    Quick-Start Test Set Location and Mounting Requirements Locating the test set Make sure that the fan inlet and exhaust vent areas on the sides, bottom, and back of the test set chassis are not obstructed. The minimal required clearance is 2 inches.

  • Page 17: Turning On The Test Set The First Time

    USB ports on the front panel of the test set. 2 Connect a monitor Connect the monitor to the Model E6640A has no display; an external monitor is • • monitor port on the front required.
  • Page 18 Quick-Start Steps Actions Notes a The analyzer performs the following steps: Windows Startup window • Black screen • Windows message window, “Please wait while windows prepares to setup” • Keysight window • b At this time, it is safe to turn off the instrument before initializing the software. After launching the setup, do not turn off the instrument or remove power before the Setup •...
  • Page 19 Quick-Start Steps Actions Notes 7 Verify the installation a From the mouse right-click If you require further assistance, contact the Keysight • menu, select support team. Utility Virtual . (All Online assistance: http://www.keysight.com/find/assist Front Panel key-presses that follow refer to the keys shown on the Virtual Front Panel.) b Press System...
  • Page 20 Quick-Start Steps Actions Notes The 2.4 GHz signal appears on the display. • Getting Started Guide...

  • Page 21: Options And Licenses

    Quick-Start Options and Licenses The options and licenses installed on the test set are listed on the System > Show display, as illustrated below. Certain features of the test set (such as its > System frequency range, its analysis bandwidth, the measurement applications it runs, and in some cases individual measurements within an application) are licensed features, and are unavailable if the appropriate license is not installed.

  • Page 22: Option 4Fd

    The port designations on the front panel are: RFIO 1, RFIO 2, RFIO 3, and RFIO • Performance characteristics for all four ports are same as those described for ports RFIO 1 and RFIO 2 in the E6640A EXM Wireless Test Set Data Sheet. • Port settings under the...

  • Page 23: Anti-Virus Software And Firewalls

    Quick-Start Anti-Virus Software and Firewalls No anti-virus software is shipped with the test set. It is recommended that you install anti-virus software if your test set is connected to the LAN. Check with your IT department to see what they recommend. The test set is shipped with the Windows firewall enabled.

  • Page 24: Instrument Information

    Quick-Start Instrument Information Power requirements The only physical installation of your Keysight test set is a connection to a power source. Line voltage does not need to be selected. This test set does not contain customer serviceable fuses. This is a Safety Class 1 Prod uct (provided with a protective earthing ground incorporated in the power cord).

  • Page 25: Environmental Conditions (Operating)

    Quick-Start AC power cord The test set is equipped with a three-wire power cord, in accordance with international safety standards. This cable grounds the test set cabinet when connected to an appropriate power line outlet. The cable appropriate to the original shipping location is included with the test set.

  • Page 26: Ventilation

    Quick-Start Ventilation VENTILATION REQUIREMENTS: When installing the product in a cabinet, the convection into and out of the product must not be restricted. The ambient temperature (outside the cabinet) must be less than the maximum operating temperature of the product by 4oC for every 100 watts dissipated in the cabinet.
  • Page 27 See “Returning a test set for Service" on page 141. Replaceable parts must be approved or supplied by Keysight Technologies. You can order the service documentation for the instrument through your Keysight Sales and Service office. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended.

  • Page 28: Protecting Against Electrostatic Discharge

    Quick-Start Protecting against electrostatic discharge Electrostatic discharge (ESD) can damage or destroy electronic components (the possibility of unseen damage caused by ESD is present whenever components are transported, stored, or used). Test equipment and ESD To help reduce ESD damage that can occur while using test equipment: Do not use these first three techniques when working on circuitry with a vol tage potential greater than 500 vol ts.

  • Page 29: Front And Rear Panel Features

    Keysight E6640A EXM Wireless Test Set Getting Started Guide Front and Rear Panel Features This section describes the following features: “Front-Panel Features" on page 30 “Display Annotations" on page 38 “Rear-Panel Features" on page 40 “Front and Rear Panel Symbols"...

  • Page 30: Front-Panel Features

    Front and Rear Panel Features Front-Panel Features The test set consists of instruments loaded in a PXI rack, hidden behind a front panel. There is a controller (located on the far left), and one to four TRX (transmit/receive) sub-instruments, each of which includes an RF signal generator and an RF signal analyzer.

  • Page 31: Controller Hardware Interface

    • USER: a user-definable indicator. TRIG This trigger line is not used by the E6640A. Getting Started Guide...
  • Page 32 Front and Rear Panel Features Item Name Description LAN Connectors Two TCP/IP Interface connectors that are used for remote test set operation. Choose the LAN 1 port to have an IP address assigned to the test set dynamically, using DHCP. If your local network does not support DHCP, choose the LAN 2 port to use a private static “LAN Address Configuration"...

  • Page 33: Trx Module Hardware Interface

    There can be as many as four TRX modules in the PXI rack; each has the same hardware interface, as illustrated below. If the E6640A test set was purchased with Option 4FD, all four RF ports have NOTE full-duplex capability, therefore two of the ports are labeled and used differently than they are described below.
  • Page 34 Front and Rear Panel Features Item Description Name TRIG IN I A trigger input used to synchronize other test equipment with the test set. Configurable from the Input/Output keys. RF4 I/O This Type N connector is a half-duplex RF port which can be configured as an input or an “Option 4FD"...

  • Page 35: Reference Module Hardware Interface

    Front and Rear Panel Features Reference Module Hardware Interface The connectors which are exposed when the impact cover is in place are illustrated below: Item Description Name 10 MHz OUT This BNC input port provides a timebase reference output from the M9300A Reference module.

  • Page 36: Virtual Front Panel

    2. Left-click Utility (1) in the menu, as shown below. 3. Left-click Virtual Front Panel (2) in the menu, as shown below. The PC mouse and monitor are required when using the E6640A. For ease in using NOTE the VFP, the PC keyboard is recommended.

  • Page 37: When The Test Set Is Controlled Remotely

    Front and Rear Panel Features When the Test Set is Controlled Remotely The test set can be controlled remotely, from another computer. (See “Remote Desktop: Using the Test Set Remotely" on page 115.) When the test set is being controlled remotely, a log-on screen is displayed on the monitor. Under these circumstances, pressing the front-panel Power switch does not immediately turn instrument power off.

  • Page 38: Display Annotations

    The TRX sub-instrument associated with the application (identified as “TRX1” through “TRX4”). This is needed because the E6640A can include up to four independent TRX sub-instruments in one PXI rack. Banner; shows the name of the selected application that is currently Mode running.
  • Page 39 Front and Rear Panel Features Item Function Key Description Settings panel; displays system information that is not specific to any Local System I/O Config one application. , and Input/Output Amplitude System others • Input/Output status - green LXI indicates the LAN is connected. RLTS indicate Remote, Listen, Talk, SRQ •...

  • Page 40: Rear-Panel Features

    +3.3 VDC, (5) Inhibit [Low], (6) +12 VDC, (7) Rsrvd, (8) -12 VDC, (9) Logic Gnd. 10 MHz REF OUT This BNC connector is not used by the E6640A test set. The front panel 10 MHz OUT connector should be used instead. 10 MHz REF IN This BNC connector is not used by the E6640A test set.

  • Page 41: Front And Rear Panel Symbols

    Front and Rear Panel Features Front and Rear Panel Symbols This symbol is used to indicate power ON (green LED). This symbol is used to indicate power STANDBY mode (yellow LED). This symbol indicates the input power required is AC. The instruction documentation symbol.
  • Page 42 Front and Rear Panel Features Getting Started Guide...

  • Page 43: Operating Tasks

    EXM Wireless Test Set Getting Started Guide Operating Tasks “Alignments" on page 44 “TRX Selection" on page 45 “E6640A Calibration Status" on page 47 “Desktop Icons" on page 50 “Port Configuration" on page 52 “LAN Address Configuration" on page 61 “Switched MIMO"...

  • Page 44: Alignments

    Operating Tasks Alignments Alignments are internal calibration adjustments which each TRX module must make to ensure that internal signal levels are properly maintained. To avoid interruptions, the alignments are not run automatically, either at startup or afterward; you must run them explicitly. The alignment process requires a 45-minute preliminary warm-up period, after NOTE applying power or after restarting the XSA application (when the application is not...

  • Page 45: Trx Selection

    The means of identifying a TRX depends upon the connection method, as outlined below. Using HiSLIP HiSLIP (High-Speed LAN Instrument Protocol) is the recommended interface for NOTE connection to the E6640A, because of its superior performance characteristics. Use hislip0 through hislip3: • TRX1: TCPIP0::<IP Address>::hislip0::INSTR •...

  • Page 46: Using Socket Ports

    Operating Tasks Using Socket Ports Use sockets 5025, 5125, 5225, and 5325: • TRX1, 5025: TCPIP0::<IP Address>::5025::SOCKET • TRX2, 5125: TCPIP0::<IP Address>::5125::SOCKET • TRX3, 5225: TCPIP0::<IP Address>::5225::SOCKET • TRX4, 5325: TCPIP0::<IP Address>::5325::SOCKET Using VXI-11/SICL Use inst0 through inst3: • TRX1: TCPIP0::<IP Address>::inst0::INSTR •...

  • Page 47: E6640A Calibration Status

    E6640A. There isn’t a single instrument-level calibration (or calibration due-date) that covers the E6640A as a whole and all of the TRX modules (and the Reference module) within it. Each module is calibrated independently, and not necessarily at the same time that the others in the test set are calibrated.

  • Page 48: Certificates Of Calibration

    The EXM is a scalable test set and can be purchased with 1 to 4 TRX modules. The TRX modules, along with the Reference module (supplied with each E6640A), are the only items that require calibration, and therefore they are the only items supplied with a CoC and calibration sticker at shipment.
  • Page 49 Operating Tasks To summarize: calibration of the E6640A is not done at the instrument level, but an E6640A is fully calibrated when all of the modules (Reference module and TRX modules) are calibrated. At initial shipment, this information is provided in the yellow envelope supplied with each unit.

  • Page 50: Desktop Icons

    However, the other TRXs, if installed, can be enabled or disabled using the checkbox in the right column. button is used when installing a new TRX into an E6640A which UpdateFPGA was purchased without it, to ensure software compatibility.

  • Page 51: Launch Xsa

    Operating Tasks Launch XSA On bootup, the E6640A opens an XSA application window for each TRX which is (1) installed and (2) enabled in the TRX Configurator described above. If you have closed any of the XSA application windows, you can reopen them without rebooting, by clicking the Launch XSA icon.

  • Page 52: Port Configuration

    Operating Tasks Port Configuration Any of the TRXs four RF ports can be configured as an input port (accepting a signal to be analyzed) or as an output port (providing an RF stimulus). Two of the ports (RFIO 1 and RFIO 2) can also be used in full-duplex mode (that is, with a single port used for both input and output simultaneously).
  • Page 53 Operating Tasks To use the RFIO 2 port as the input and output, set up the RF Input using this menu setting or its equivalent command: Input/Output > RF Input > RF Input Port > RFIO 2 Command: :FEED:RF:PORT RFIO2 Then set up the RF Output using this menu setting or its equivalent command: Input/Output >...

  • Page 54: Separate Input And Output Port Setup (Rf3 I|O And Rf4 I|O)

    Operating Tasks Separate Input and Output Port Setup (RF3 I|O and RF4 I|O) Ports RF3 I|O and RF4 I|O connect to a switch rather than a splitter/combiner, which means that one of these ports must be used as either an input or an output, not both, at any given time.
  • Page 55 Operating Tasks Set up the RF Output using this menu setting or its equivalent command: Input/Output > More > RF Output & Test Set Config > RF Output Port > RF Output Command: :FEED:RF:PORT:OUTP RFO To define RF4 I|O as an input and RF3 I|O as an output, use the following steps. Define RF4 I|O as an input, using this menu setting or its equivalent command: Input/Output >...
  • Page 56 Operating Tasks Set up the RF Output using this menu setting or its equivalent command: Input/Output > More > RF Output & Test Set Config > RF Output Port > RF Output Command: :FEED:RF:PORT:OUTP RFO Getting Started Guide...

  • Page 57: Separate Input And Output Port Setup (Rfio 1 And Rfio 2)

    Operating Tasks Separate Input and Output Port Setup (RFIO 1 and RFIO 2) Although Ports RFIO 1 and RFIO 2 are designed to operate as full-duplex ports, they can function as separate inputs and outputs. To use the RFIO 1 port as the input and the RFIO 2 port as the output, set up the RF Input using this menu setting or its equivalent command: Input/Output >...
  • Page 58 Operating Tasks To use the RFIO 1 port as the input and the RFIO 2 port as the output, set up the RF Input using this menu setting or its equivalent command: Input/Output > RF Input > RF Input Port > RFIO 2 Command: :FEED:RF:PORT RFIO2 Then set up the RF Output using this menu setting or its equivalent command:...

  • Page 59: Option 4Fd: Full Duplex Port Setup

    Operating Tasks Option 4FD: Full Duplex Port Setup If the test set was purchased with Option 4FD, then each of the IO ports connects to a splitter/combiner rather than a switch, and it can be used in full duplex mode, as a simultaneous input and output.

  • Page 60: Option 4Fd: Separate Input And Output Port Setup

    Operating Tasks Option 4FD: Separate Input and Output Port Setup Although, with Option 4FD, all of the RFIO ports are designed to operate as full-duplex ports, they can function as separate inputs and outputs. In this example, the RFIO 2 port is used as an input, and the RFIO 3 port as an output. (Other port combinations could be selected simply by substituting different port names in the instructions provided below.) To use the RFIO 2 port as the input and the RFIO 3 port as the output, set up the...

  • Page 61: Lan Address Configuration

    If you cannot easily obtain a monitor view of , you System > Show > System can determine the computer name using the instrument serial number. The computer name is in the format A-E6640A-nnnnn, ending in the last five digits of the serial number. Getting Started Guide...

  • Page 62: Switched Mimo

    Operating Tasks Switched MIMO For WLAN modulation accuracy measurements, a form of MIMO measurement can be made with a single TRX, using a time-division multiplexing process. The same source/analyzer pair within the TRX switches between the antenna ports of the Device Under Test.

  • Page 63: Source Sync Control

    Operating Tasks For 3x3 MIMO , the RFIO 1 port (a full-duplex port) captures the data stream from the first antenna port of the DUT. The other full-duplex port, RFIO 2, captures the data stream from the second antenna port of the DUT. One of the half-duplex ports, RF3 I|O or RF4 I|O, captures the data stream from the third antenna port of the DUT.

  • Page 64: Acquisition Triggers

    Operating Tasks Acquisition Triggers Each of the acquisitions which make up a sequence used for switched MIMO testing needs to have the same trigger settings as the others. Acquisition Integration For 2x2 switched MIMO in Sequence Analyzer mode, two separate acquisitions are used for the two separate ports, and must be integrated.

  • Page 65: Acquisition Rf Input Port

    Operating Tasks Acquisition RF Input Port An RF input path must be selected for each acquisition. In the Meas Setup > menu, select , or Acquisition Setup > Acquisition RF Input Port RFIO1 RFIO2 , as needed for each acquisition. The selection, which is used for the Input RF Input...

  • Page 66: Switched Mimo Modulation Accuracy Measurement Scpi Commands

    Operating Tasks Switched MIMO Modulation Accuracy measurement SCPI commands The following commands are used to set up the MIMO Modulation Accuracy (“EVM MIMO”) measurement. Table 8-1 Command Description Notes Freq Error Sets a frequency :CALCulate:LSEQuencer:WLAN:EVMMimo:LIMit: error limit FERRor <real> Clock Error Sets a clock error :CALCulate:LSEQuencer:WLAN:EVMMimo:LIMit: limit...
  • Page 67 Operating Tasks Table 8-1 Command Description Notes Equalizer Training Specifies how the :CALCulate:LSEQuencer:WLAN:EVMMimo:EQUalizer: equalizer is TMODe SEQuence|SDATa initialized or trained. Track Amplitude Sspecifies whether :CALCulate:LSEQuencer:WLAN:EVMMimo:PILot:TRACk: analyzer tracks AMPLitude OFF|ON|0|1 amplitude changes in the pilot subcarriers. Track Phase Specifies whether CALCulate:LSEQuencer:WLAN:EVMMimo:PILot:TRACk: analyzer tracks PHASe OFF|ON|0|1 phase changes in...

  • Page 68: Switched Mimo Results

    Operating Tasks Switched MIMO Results The results available for a WLAN MIMO Modulation Accuracy measurement are as follows (the results for Stream 3 are returned as -1.0 (not tested) in the case of 2x2 MIMO): Index Result Parameter Overall Pass/Fail Result 0:Pass, 1:Fail, –1:Not tested Stream 1 RMS EVM pass/fail result (1.0 = fail, 0.0 = pass, -1.0 = Not tested) Stream 1 RMS EVM (dB)
  • Page 69 Operating Tasks Index Result Parameter 41-72 41-56: Channel 2 (as in Index 25-40 above). 57-72: Channel 3 (as in Index 25-40 above) 73-88 Reserved Getting Started Guide...

  • Page 70: True Mimo

    Operating Tasks True MIMO In WLAN mode, True MIMO (simultaneous rather than switched MIMO) is supported for the MIMO Modulation Analysis measurement. (This functionality is not available in Sequence Analyzer mode.) Setting up this type of measurement requires configuration of two separate TRXs. For MIMO Modulation Analysis, two or more measurement data streams are captured simultaneously, by two or more separate TRXs in the EXM test set.
  • Page 71 Operating Tasks Here is an example of 3x3 MIMO: In the example setup shown here, TRX 1 runs the MIMO Modulation Analysis measurement, and is also configured to control TRX 2 and 3, which collect the second and third data streams. Here is an example of 4x4 MIMO: In the example setup shown here, TRX 1 runs the MIMO Modulation Analysis measurement, and is also configured to control TRX 2 to 4, which collect the...

  • Page 72: Source Settings For Mimo

    Operating Tasks Source Settings for MIMO Unlike measurement settings, which are made only to the primary TRX and applied to the others, source settings are made separately for each TRX, and cannot be made from the primary TRX alone. However, when the measurement is run, the primary TRX communicates with the other TRXs to ensure that they begin playing ARB files simultaneously.

  • Page 73: Constraints On Trx Selection

    Operating Tasks Constraints on TRX Selection Not every TRX can be designated the primary for purposes of MIMO testing. The permitted configurations are shown in the table below: Table 8-2 MIMO Configuration Primary TRX Secondary TRXs TRX 1 TRX 2, Socket 5125 2x2 (alternative setup) TRX 3 TRX 4, Socket 5325...
  • Page 74 Operating Tasks 4. Click , use the numeric keys to enter an IP address for the test set, IP Address and press . In this example, the test set’s localhost address is used (for the Enter EXM test set, the localhost address has a fixed value of 127.0.0.1). 5.
  • Page 75 Operating Tasks The command equivalent for 3x3 MIMO would be: :SYST:COMM:ANAL:SEL "127.0.0.1:5125" :SYST:COMM:ANAL:SEL "127.0.0.1:5225" The command equivalent for 4x4 MIMO would be: :SYST:COMM:ANAL:SEL "127.0.0.1:5125" :SYST:COMM:ANAL:SEL "127.0.0.1:5225" :SYST:COMM:ANAL:SEL "127.0.0.1:5325" Getting Started Guide...

  • Page 76: Mimo Modulation Analysis Measurement Scpi Commands

    Operating Tasks MIMO Modulation Analysis measurement SCPI commands The following commands are used to set up the MIMO Modulation Analysis measurement. Table 8-3 Command Description Notes Matrix Type Sets the type as [:SENSe]:EVMMimo:MTYPe DMAP|FOURier DMAP or Fourier MIMO Type Sets the type as [:SENSe]:EVMMimo:TYPe M2M2|M3M3|M4M4 2x2, 3x3, or 4x4 MIMO Result Stream...

  • Page 77: Mimo Modulation Analysis Results

    Operating Tasks MIMO Modulation Analysis Results The results available for a WLAN MIMO Modulation Analysis measurement are as follows (the results for Stream 3 are returned as -1.0 (not tested) in the case of 2x2 MIMO): Index Result Parameter Returns unprocessed I/Q trace data of Capture Interval, as a series of trace point values for Channel m. Channel index m can be set and queried through EVMM:RESult:CHAN command.
  • Page 78 Operating Tasks Index Result Parameter Returns series of floating point numbers that represent each sample in the Channel Response for STRM m CH k. Stream index m can be set and queried through EVMM:RESult:STReam command. Channel index k can be set and queried through EVMM:RESult:CHAN command.

  • Page 79: Tx Beam Forming

    Operating Tasks Tx Beam Forming If license V9077B-KFP is installed, Tx Beam-Forming results are available from the Modulation Analysis measurement in WLAN mode. Tx Beam Forming Commands Two commands are added for Tx Beam Forming, as described in the table below. The first command sets up the measurement’s EVM demodulation algorithm to provide EVM results or Tx Beam Forming Results.

  • Page 80: Tx Beam Forming Results

    Operating Tasks Tx Beam Forming Results The Tx Beam Forming results are added to the Modulation Analysis measurement results as Index 21 and Index 22, as described in the table below. Index Result Parameter Tx Beam Forming Calibrated Angle Error returns a series of floating point numbers (in rad) that represent the calibrated angle error vectors on channels, when - Radio Std is 802.11n (20 MHz), or 802.11n (40 MHz), and MIMO Tx Channel Count <= 4...

  • Page 81: Test Set Operating System

    Keysight E6640A EXM Wireless Test Set Getting Started Guide Test Set Operating System This chapter describes the Microsoft Windows configuration and the settings used with the Keysight test set software. It includes information about changing some of the system settings. And it describes the Windows operating system configuration and the software installations that are present on the hard disk drive when the test set leaves the factory.

  • Page 82: Keysight Software Installed

    Whichever licenses were purchased with the instrument are installed at the factory (see “Options and Licenses" on page 21. Other licenses can be purchased and installed later (including transportable licenses). For more information, see: http://www.keysight.com/find/e6640a Getting Started Guide...

  • Page 83: Customer Installation Of Software

    MathWorks MATLAB Installation of other 3rd party software The E6640A platform is an open Windows environment, so you can install non-approved software on the test set. However, installation of non-approved software may affect test set performance. Keysight does not warrant the performance of the test set with non-approved software installed.

  • Page 84: User Accounts

    Change the time and date • Run any application The E6640A was formerly a product of Agilent Technologies. If the front panel of NOTE the test set shows Agilent as the manufacturer, then “agilent4u” may have been set as the password for the Administrator account.

  • Page 85: Customer Creation Of Accounts

    Test Set Operating System Customer creation of accounts You can create additional user accounts and decide on the level of security granted to any new user accounts created. For example, the level of security can be assigned as administrator, power user, user, backup operators. User names are not case sensitive but passwords are case sensitive.

  • Page 86: Keysight Licensing Options

    Test Set Operating System Keysight Licensing Options Keysight test sets use three licensing types: Fixed Perpetual, Transportable Perpetual, and Trial. Fixed Perpetual licenses are also required to enable hardware options. Fixed Perpetual Fixed Perpetual licenses are the traditional license type (Fixed) with the same duration (Perpetual) that have been available for all features since the Keysight X-Series introductions.

  • Page 87: Time-Limited Licenses (Trial Licenses)

    Test Set Operating System Time-Limited Licenses (Trial Licenses) Trial licenses are available so that you may try applications before you buy the full applications. These licenses are time limited for a 14 day period, and are restricted to one trial for an individual application per instrument. The restriction is enforced through the license redemption process of the Keysight Software Manager (KSM) system.

  • Page 88: Licensing New Measurement Application Software - After Initial Purchase

    Licensing New Measurement Application Software - After Initial Purchase Additional measurement application software can be ordered after your initial purchase of the E6640A test set. Software upgrades are provided in a kit that includes an option based Entitlement Certificate, a license agreement. The licenses are downloaded from the license Web site onto a storage device so they can be loaded into the instrument.
  • Page 89 If you require further assistance, please contact the Keysight support team. Online assistance: http://www.keysight.com/find/assist If you do not have access to the Internet, contact your local Keysight Technologies Sales and Service Office, or if in the United States, call 1-800-829-4444. Getting Started Guide...

  • Page 90: Transporting A License Between Test Sets

    (the "target instrument") must at least be able to support the desired application. The E6640A test sets support several ways of transporting licenses. The procedure below will focus on the most common procedure, where neither of the test sets has access to an internet connection.
  • Page 91 Test Set Operating System Step Action Notes 5 Transport the a On the source instrument, locate the desired Be sure you are selecting a transportable Transportable License license to be transported and highlight it. Its license and not a fixed perpetual license. from Source Instrument option designator should include the letters "TP".
  • Page 92 Test Set Operating System Step Action Notes 8 Install License File in a With the target instrument running, insert The Keysight License Services running on Target Instrument the USB flash drive into one of the front the target instrument looks for *.lic files panel USB ports.

  • Page 93: Windows Configuration

    Test Set Operating System Windows Configuration The Windows settings have been optimized for the best measurement performance. Any modifications to these settings may degrade test set performance and measurement speed. In general, most Windows System settings (typically set through the Windows Control Panel) should not be modified. Those that can be safely modified are listed below.

  • Page 94: Settings That Must Not Be Changed

    Test Set Operating System You may use this feature To do this... Under Ad vanced System Settings, System Properties, Ad vanced, Performance: choose either “Let Windows choose what’s best for my computer” or “Adjust for best performance”. Leave all other settings unchanged. Settings that must not be changed Avoid changing any settings in this section.
  • Page 95 Test Set Operating System — The MSSQL$CDF service or uninstall the “Microsoft SQL Server Desktop Engine” — The IIS server or tamper with any virtual directories (or their contents) that came configured with the test set. • Uninstall these libraries, interfaces, or programs: —...

  • Page 96: Configuring Printers

    The Computer Name, or hostname, is pre-configured from the factory. It must be a unique name so that it does not conflict with other equipment on your LAN. The pre-configured Computer Name is A-E6640A-xxxxx, where xxxxx represents the last 5 digits of the test set serial number.

  • Page 97: Windows Security

    Test Set Operating System Windows Security Microsoft recommends the following to ensure the test set Windows operating system is protected: • Use an internet firewall. • Get the latest critical Windows updates. • Use up-to-date antivirus software. To check the status or make changes in the security settings for your test set, click , and then .

  • Page 98: Windows Firewall

    Test Set Operating System Windows Firewall Click in the System and Security window to check the firewall Windows Firewall status of your test set. The test set is shipped with the Windows Firewall enabled. The window may look slightly different on your test set. Windows Firewall exceptions for programs and ports have been added to allow proper operation of the test set over a network.

  • Page 99: Automatic Updates

    Test Set Operating System Automatic updates The default test set setting is to automatically check for critical Windows Updates and notify you, if the test set has internet access. You can change the configuration of the Microsoft Automatic Updates. Under in the window, click Windows Update...

  • Page 100: Virus Protection

    Test Set Operating System Virus protection Under in the window, click Action Center System and Security Review your to check the status of virus protection on computer’s status and resolve issues your test set. There is no antivirus software included with your test set. Antivirus application software has been tested to be compatible with the test set.

  • Page 101: System Maintenance

    Test Set Operating System System Maintenance Backup It is recommended that you have a regular backup strategy. Your IT department may already have a backup strategy in place which is suitable for the test set and its data. Using the Keysight Recovery system in conjunction with a regular backup strategy should allow full recovery of the test set data.

  • Page 102: Usb Connections

    USB Host drivers that allow control of other test sets connected to the USB bus. Keysight Technologies does not support or warrant correct test set operation if additional USB drivers from third parties are installed in the test set. It is possible that additional drivers could break the normal USB operation.

  • Page 103: Hard Drive Partitioning And Use

    Test Set Operating System Hard Drive Partitioning and Use The drive is partitioned into 3 sections: C:, D: and E: • The C: partition contains the Windows operating system and software installed by Keysight. This is an Open System which means you can install additional software, and these should be installed on the C: drive.

  • Page 104: Hard Drive Recovery Process

    Test Set Operating System Hard Drive Recovery Process The Keysight Recovery System can be used to repair errors on the test set's C: drive partition, or to restore the original factory configuration of the system software. The Keysight Recovery System is stored in a separate hidden hard disk drive partition.
  • Page 105 Step Notes 1 Make sure the test set is turned off. 2 Turn on the test set. After the Keysight Technologies screen is displayed, Press the down arrow key to move the highlight to Keysight Recovery System, then press Enter This screen is displayed for five seconds.

  • Page 106: Updating The Software

    If you do not have the ability to download files directly to the C: drive of the E6640A being updated, store the file on a large capacity USB storage device for transfer to the instrument. (The file size is ~1 GByte.)
  • Page 107 15 minutes. 1. Connect a USB keyboard and mouse to the E6640A. 2. If the E6640A is not already running, power it up and allow it to boot up completely. 3. Close the E6640A measurement application if it is running. Right-click in the application window, and select elect from the right-click menu;...
  • Page 108 Test Set Operating System Table 3-2 Preparing the installation Step Notes 2 A window appears showing the extraction of The update process causes various messages the software installer. Click Install in the and windows to appear and disappear on the confirmation window to begin the installation screen, but the process doesn’t require further process.
  • Page 109 Test Set Operating System Table 3-2 Preparing the installation Step Notes Software updater window, showing uninstallation progress: While the old instrument software is being uninstalled, the text “Uninstall in Progress” text rolls across the screen, to be replaced finally by “Completed Successfully”. No interaction is required at this point.
  • Page 110 FPGA update warning window (may be displayed, if any FPGA updating occurs): CAUTION During FPGA programming, DO NOT power off the E6640A for ANY reason! Interrupting the FPGA update process can place the instrument in an unusable state, requiring it to be returned to Keysight for repair.
  • Page 111 Instrument S/W Revision: It is possible a newer version of the instrument software is available on the web at http://www.keysight.com/find/e6640a Additional recovery steps may be required to fully recover the system to a more current working state. This could involve restoring your own backups of the instrument configuration, including re-installing applications, data, and performing system customizations.

  • Page 112: Configuring Recovery Prompt Timing

    Test Set Operating System Configuring recovery prompt timing You can configure the time at which the test set power-up process waits for the selection of the recovery process by performing the following steps: Step Notes 1 From the Windows Start menu, right-click This opens the window.

  • Page 113: Using Microsoft Windows Operating System

    Keysight E6640A EXM Wireless Test Set Getting Started Guide Using Microsoft Windows Operating System The capabilities described in this section are Microsoft Windows features. The following information provides some guidelines for using the capabilities with the test set. You need to refer to the Windows help documentation for more information.

  • Page 114: Navigating Windows Without A Mouse

    Using Microsoft Windows Operating System Navigating Windows Without a Mouse Key Presses Actions Exits/closes a Windows dialog box (does not exit an Application window) Does the current "default action". If a menu item or a button is currently Enter highlighted, then the Enter key activates that menu item or button. Moves focus/control to the pull down menus bar in the active Window In pull-down menu: opens the next menu to the right, or opens a submenu Right Arrow...

  • Page 115: Remote Desktop: Using The Test Set Remotely

    Using Microsoft Windows Operating System Remote Desktop: Using the Test Set Remotely Windows Remote Desktop is recommended for remote control of the test set. The Remote Desktop functionality is a Microsoft Windows capability. The following discussion provides some guidelines for using this capability with the test set.
  • Page 116 Using Microsoft Windows Operating System Table 3-3 Setting up a remote desktop connection Step Notes 4 Click A System Properties window appears, with the Remote Settings Remote tab displayed. 5 Check the box labeled Allow Remote connections to this computer, Assistance if it is not already checked.

  • Page 117: How To Locate The Computer Name Of The Test Set

    Using Microsoft Windows Operating System Table 3-4 Installing the Client software Step Notes 1 When the Welcome Screen appears, click Perform add itional tasks 2 From the screen, The Remote Desktop Connection InstallShield What do you want to do? click Wizard appears.

  • Page 118: Running A Remote Desktop Session

    Using Microsoft Windows Operating System Table 3-7 Locating the name from the Windows desktop (without a mouse): Step Notes 1 Press to display the Windows Ctrl+Esc Start menu. 2 Use the keys to Up Arrow Down Arrow select the item. Control Panel 3 Press to open the Control Panel dialog.
  • Page 119 Using Microsoft Windows Operating System Table 3-8 Starting a session Step Notes 1 Click > > > A Remote Desktop Connection dialog appears: Start All Programs Accessories Remote Desktop Connection. 2 Enter the computer name or IP address of the test set.
  • Page 120 Using Microsoft Windows Operating System Setting Remote Desktop options Step Notes 1 On the Remote Desktop Connection window, click . The window Options expands vertically to show several configuration tabs. The Options dialog has several tabs. Generally, the default settings are correct. 2 Under the tab, ensure that You may choose to enter the password and save it for...
  • Page 121 Using Microsoft Windows Operating System Step Notes 3 Click the tab. Display Under • Remote desktop size you may select the size of the window in which the test set display appears. Do not select any size smaller than 1024 x 768 pixels.
  • Page 122 Using Microsoft Windows Operating System Step Notes 5 Click the tab. To Optimize the performance of the Remote Desktop Experience session, choose the appropriate connection format from the drop-down list. Getting Started Guide...
  • Page 123 Using Microsoft Windows Operating System Accessing menus for Remote Desktop operation Using the mouse, right-click the application display window to access the following remote desktop menus: The function of each selection in the menu is generally identical to that of the corresponding Virtual Front Panel key.
  • Page 124 Using Microsoft Windows Operating System Keycode commands for Remote Desktop operation When using the test set in remote desktop mode, the following combinations of remote keyboard keys can be used to perform the operation of the virtual front-panel keys. Table 3-9 Keycode commands To initiate the following virtual key: Press these keys on the remote computer...
  • Page 125 Using Microsoft Windows Operating System Table 3-9 Keycode commands To initiate the following virtual key: Press these keys on the remote computer keyboard: Cont Ctrl Ctrl Ctrl Decrease Audio Volume the Volume Control slider Delete Down Arrow Down Arrow Enter Enter (Return) File Ctrl...
  • Page 126 Using Microsoft Windows Operating System Table 3-9 Keycode commands To initiate the following virtual key: Press these keys on the remote computer keyboard: Right Arrow Right Arrow Save Ctrl Select Space Bar Single Ctrl Softkey 1 Ctrl Shift Softkey 2 Ctrl Shift Softkey 3...
  • Page 127 Using Microsoft Windows Operating System Table 3-9 Keycode commands To initiate the following virtual key: Press these keys on the remote computer keyboard: – Use the key to enter a negative value, as – appropriate . (Decimal Point) (Period) 0 (Zero) (Zero) a.

  • Page 128: The Virtual Front Panel

    Using Microsoft Windows Operating System The Virtual Front Panel The Virtual Front Panel is a software equivalent of the front-panel key set, which provides another alternate method for test set control. It may be displayed in a separate window on the test set (or remote desktop) display. The Virtual Front Panel is also available when using the test set directly, provided that a mouse or other pointing device is attached to it.

  • Page 129: Programmatic Control Of The Test Set

    Using Microsoft Windows Operating System Programmatic Control of the Test Set For information on how to send commands to the test set, using a VISA connection, see the X-Series Signal Analyzer Programmer’s Guide, which is available online at: http://www.keysight.com/find/mxa_manuals The individual TRX instruments within the test set chassis are controlled using NOTE separate VISA connections;...

  • Page 130: Capturing/Printing Displays And Windows

    Using Microsoft Windows Operating System Capturing/Printing Displays and Windows You need an external keyboard and mouse to use this feature. Save the desktop: Step Notes 1 Press on the external This captures the desktop and saves it on the Windows Print Screen keyboard clipboard.

  • Page 131: Windows Shortcuts And Miscellaneous Tasks

    Using Microsoft Windows Operating System Windows Shortcuts and Miscellaneous Tasks This section provides a list of Windows shortcuts (key combinations) that are useful when you operate the test set without an attached mouse and keyboard. (See also “Navigating Windows Without a Mouse" on page 114.) Although these shortcuts are available in any Windows system, they are not commonly used when a mouse and keyboard are attached.
  • Page 132 Using Microsoft Windows Operating System Navigating an Application Menu without a Mouse or Keyboard This example uses Microsoft Excel, but you can use a similar sequence of operations to select and execute any menu item of any application. To select and execute the item option from the menu in Sheet >...

  • Page 133: Windows Taskbar Auto-Hide Feature

    Using Microsoft Windows Operating System Windows taskbar auto-hide feature The Windows taskbar should always be in the auto-hide mode when using the test set application. If the taskbar is not set to auto-hide, the lower part of the test set display is obscured by the taskbar.
  • Page 134 Using Microsoft Windows Operating System Table 3-11 Restoring taskbar auto-hide mode Step Notes 4 Select the check box If you are not using a mouse, press Auto-hide the taskbar repeatedly until the auto-hide option is selected, then press to toggle the check Select box state.

  • Page 135: Windows Startup Folder

    Using Microsoft Windows Operating System Windows startup folder All Windows systems include a special folder, called the Startup folder. If a program, or a shortcut to a program, is placed in the Startup folder (either by Windows itself, or by a third-party application, or by any user), that program automatically runs every time Windows is restarted.
  • Page 136 Using Microsoft Windows Operating System Getting Started Guide...

  • Page 137: Troubleshooting

    Keysight E6640A EXM Wireless Test Set Getting Started Guide Troubleshooting “Check the Basics" on page 138 “Problems with Microsoft Windows Operating System" on page 140 “Returning a test set for Service" on page 141 No operator serviceable parts inside. Refer servicing to qualified personnel. To...

  • Page 138: Check The Basics

    Refer to the specifications in the data sheet for your test set, which is available on the Keysight website: http://www.keysight.com/find/e6640a o If the test set is not communicating via the LAN connection, check the LAN cable connection at the front panel.
  • Page 139 Troubleshooting o If the previously performed alignments did not resolve the problem, press . Then press System Alignments Restore Align Defaults System Alignments Align Now The test set must be powered on for 45 minutes prior to performing alignments. NOTE o Is the test set displaying an error message? If so, refer to the Instrument Messages Guide.

  • Page 140: Problems With Microsoft Windows Operating System

    “Settings that can be changed" on page 93. The E6640A EXM Wireless Test Set operates in an open Windows environment, so you can install software on the test set. However, installation of non-approved software may affect test set performance. Keysight does not warrant the performance with non-approved software installed.

  • Page 141: Returning A Test Set For Service

    Returning a test set for Service Calling Keysight Technologies Keysight Technologies has offices around the world to provide you with complete support for your test set. To obtain servicing information or to order replacement parts, contact the nearest Keysight Technologies office listed in the following table.

  • Page 142: Read The Warranty

    If your test set is covered by a separate maintenance agreement, please be familiar with its terms. Service Options Keysight Technologies offers several optional maintenance plans to service your test set after the warranty has expired. Call your Keysight Technologies office for full details. Getting Started Guide...

  • Page 143: Packaging The Test Set

    Troubleshooting Packaging the Test Set Use original packaging or comparable. It is best to pack the unit in the original factory packaging materials if they are available. Test set damage can result from using packaging materials other than those specified. Never use styrene pellets in any shape as packaging materials. They do not adequately cushion the test set or prevent it from shifting in the carton.
  • Page 144 Troubleshooting Getting Started Guide...
