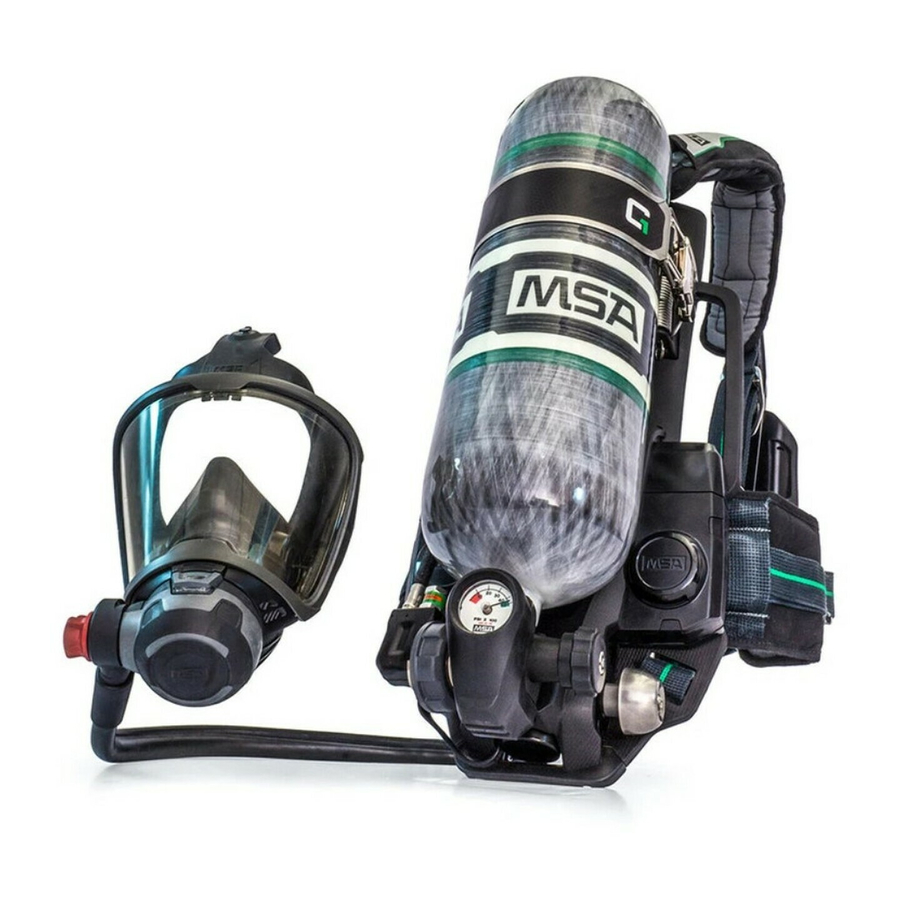

MSA G1 SCBA Pairing Manual
For motorola apx 4000 series, apx 5000 series, apx 6000 series, apx 7000 series, apx 8000 series
Hide thumbs
Also See for G1 SCBA:
- Operating manual (97 pages) ,
- Instruction manual (88 pages) ,
- Manual (24 pages)
Related Manuals for MSA G1 SCBA
Summary of Contents for MSA G1 SCBA
- Page 1 APX 8000 Series Motorola APX Configuration Settings Motorola APX Screen Navigation Creating a G1 SCBA Configuration Tag (G1 Bluetooth Settings) Creating a G1 SCBA Motorola APX Radio Pairing Tag Pairing a G1 SCBA and Motorola APX Radio Using the G1 SCBA and Motorola APX Radio...
- Page 2 G1 SCBA Radio Pairing Guide | Motorola APX Motorola APX Configuration Settings Motorola APX Radio Configuration Step 1. Update Motorola Radio Firmware & Motorola Code Plug Software to Version 18.00.04 Step 2. Open Motorola Code Plug Software Step 3. Select “Radio Wide” in the Navigation Panel on the left Select “Bluetooth”...
- Page 3 G1 SCBA Radio Pairing Guide | Motorola APX OPTION 1: RSM Large Button as PTT button and Default Incoming Audio to RSM This option is for Motorola APX Radios WITH a Remote Speaker Mic (RSM). Note: Allows Speaker Volume control.
- Page 4 G1 SCBA Radio Pairing Guide | Motorola APX Motorola APX Screen Navigation Navigating: Motorola APX Radio Screens Scroll to Next Menu Selecting BT Menu Turn BT (Status) On Turn Visibility On Speaker Setting Step 1: Step 2: Step 3: Step 4:...
- Page 5 Creating a G1 SCBA Configuration Tag (G1 Bluetooth Settings) Settings Tag The purpose of this section is to: (1) enable the Bluetooth radio on the G1 SCBA and (2) to set Bluetooth Pair Save behavior based on the department’s preference.
- Page 6 Pair Tag To pair the radio to the G1 SCBA, a “Bluetooth Audio Pairing Tag” needs to be created in the A2 Software. Once the Pairing Tag is created, it can be applied to the SCBA, which “programs” the SCBA to connect to that specific radio.
- Page 7 G1 SCBA Radio Pairing Guide | Motorola APX Step 7. Writing the Bluetooth Audio Pairing Tag: Place RFID Tag on the RFID Reader / Writer. Select the Write G1 Tag icon (top-right side of A2). Click “OK” on the “Tag was successfully written” dialog.
- Page 8 Pairing a G1 SCBA and Motorola APX Radio Radio Ensure the radio is programmed correctly to connect with the G1 SCBA. Necessary and recommended settings are listed in the “Motorola APX Configuration Settings” Section. Consult with your Radio Technician as necessary.
- Page 9 • If the regulator is shut off, The G1 SCBA will not remain connected to the radio. The radio can be used by itself (no Bluetooth connection) when the regulator is shut off. The G1 SCBA will automatically reconnect to the Kenwood radio when breathing on the G1 regulator resumes.
- Page 10 G1 SCBA Radio Pairing Guide | Motorola APX Best practice is to: Clear the pairing information from both devices—the radio & the G1 SCBA. This prevents the G1 SCBA from connecting to a previously-paired Bluetooth radio during the next start-up.
- Page 11 G1 SCBA Radio Pairing Guide | Motorola APX Troubleshooting G1 SCBA & Motorola Radio Troubleshooting Topic Problem/Issue Diagnosis Possible Solution Expected Result Facepiece may not be Adjust the facepiece until a Outgoing audio will function as Intermittent Audio properly sealed...
