Jadever JCL Series User Manual

Hide thumbs Also See for JCL Series:
Table of Contents

Advertisement

Quick Links

1. Introduction ................................
......................................................................................
2. Precaution ................................
.........................................................................................
3-1 Unpacking and Checking ................................
3-2 Installing Components ................................
3-3 Leveling the Scale ................................
4-2 Front Panel ................................
...........................................................................................................
4-2-1 Display ................................................................
4-2-2 Keyboard... ................................
................................................................................................
4-3 Power Supply ................................
................................................................................................
5-1 Function Setting ................................
................................................................................................
5-2 Parameters ................................
............................................................................................................
6.
point Calibration ................................................................
7-1 Weighing ................................................................
Upper & Lower Weight Limit Checking ...............................................................
7-3-2 Upper & Lower Quantity Limit Checking
7-4-1 Entering a Known Unit Weight and Unit
Entering a Known Unit Weight and Unit weight Memory ................................
7-4-2 Sample Counting and ACAL
7-5 Accumulation, Accumulation Display and
Accumulation, Accumulation Display and Accumulation Clear... ..........................
Content
.....................................................................................
.........................................................................................
................................................................................................
Features ................................................................
...............................................................................
...............................................................................
................................................................................................
Limit Checking ............................................................
ACAL ..............................................................................
Printer (Optional) .......................................................
(Optional) ..............................................................
(II)
......................
.........................
......................... 1
................................ 1
....................................... 2
........................................ 4
........................................ 5
..................................... 6
....................................... 9
............................................ 10
............................... 11
............................ 12
.................................. 13
.......................... 14
..............................16
1
1
..................... 1
........... 3
............... 3
............ 6
............... 10
.............. 13.
....................... 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JCL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jadever JCL Series

Summary of Contents for Jadever JCL Series

  • Page 1: Table Of Contents

    (II) Content 1. Introduction ............................2. Precaution ..............................3. Before Using the Product Product 3-1 Unpacking and Checking ............................1 3-2 Installing Components ..............................1 3-3 Leveling the Scale ................................1 4.
  • Page 2 (II) 8. Serial Interface 8-1 RS-232 Connector… ..............................16. 9. Troubleshooting and Error Error Message ..............

  • Page 3: Introduction

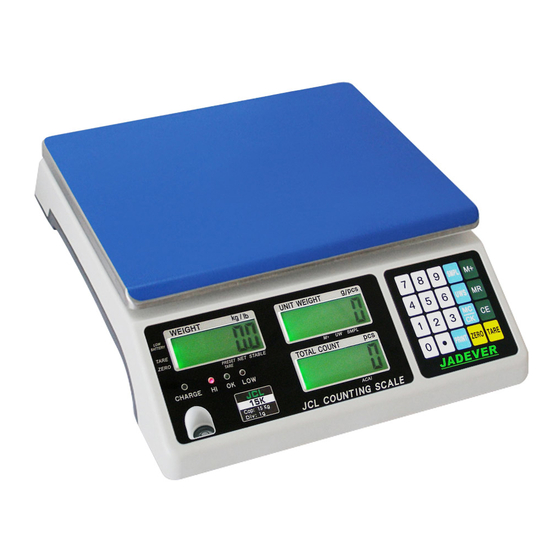

    1. Introduction Thank you for deciding to purchase a JCL counting scale from Jadever. This goods has the excellent performance and splendid properties under severe quality management. It is recommended to read this manual in full before using it for good function application.

  • Page 4: Product Introduction

    4. Product Introduction Leveler 3) RS-232 interface Leveling foot 4) Plastic weighing pan Stainless Steel weighing pan 6) On/Off Switch 7) Two-stage Switch 8) Power socket Transport protection screw Plug buckle 4-1 Specifications& General Features Specifications Model JCL-1.5K JCL-3K JCL-6K JCL-7.5K JCL-15K JCL-30K...

  • Page 5: Front Panel

    General Features · A/D covered by aluminium plate, prevent PCB from static and A/D covered by aluminium plate, prevent PCB from static and moisture · Tare, Preset Tare, auto zero tracking tracking · Automatic counting accuracy improvement (ACAI) for Automatic counting accuracy improvement (ACAI) for enhanced counting accuracy accuracy ·...

  • Page 6: Keyboard

    (II) 5) Leveler 6) HI Lamp (ON) Indicating parameter item Indicating parameter item is selected when setting buzz buzz sounds. (See 5. Function Setting, setting buzz sounds. (See 5. Function Setting, setting buzz sounds) OK Lamp (ON) -- Indicating parameter item Indicating parameter item is selected when setting is selected when setting buzz...

  • Page 7: Power Supply

    (II) SMPL key Short press enters the sampling mode. Long press closes ACAI after sampling. And shift Units when capacity setting. G N/SET key Shift the displays of Gross weight and Net weight after tare. Long press to enter parameters setting. And turn on or off check weighing when entering HI, LO, OK setting.

  • Page 8: Setting Mode

    (II) When ― ‖ appears in the upper left corner of the weight window, the battery power appears in the upper left corner of the weight window, the battery power appears in the upper left corner of the weight window, the battery power requires recharging.
  • Page 9 (II) 5，10，30，60：Auto off with less than 9d of gross weight when there is not any operation within 5min (10, 30, 60min available) SET03 using units setting: Kg Kg，Kg g，g g，lb lb Note: it refers to the weighing unit and unit weight unit. Such as, if Kg, G is selected, it means the weighing unit is Kg and unit weight unit g.
  • Page 10 (II) GODEX: Godex printer （paper size 5cm*3cm） BIRCH: Birch printer（paper size 5cm*3cm） ZEBRA: Zebra printer（paper size 5cm*3cm） DMP: Dot matrix printer(SH-24) CK: thermal printer (Chinese available) ET: Large LED display CX: CX large screen display (version 0.02) Note: Special setting is needed by distributor if you want to print in Chinese. SET09 baud rate setting: 9600、4800、2400 SET10...

  • Page 11: Single And Multi-Point Calibration Point Calibration

    (II) TARE/ M-/HI changing and key to shift the figures. Press key to shift the figures. Press key PRINT/LO M+/SAVE M+/SAVE to modify the value (or via numeric keys). Press key to modify the value (or via numeric keys). Press key to save and shift the windows.

  • Page 12: Operation

    (II) M+/SAVE to save. Put the corresponding weight on the weighing Put the corresponding weight on the weighing pan, TARE/ and then press to complete the first point to complete the first point calibration. Note: After the first point calibration, the window can display the weight value. If no need After the first point calibration, the window can display the weight value.

  • Page 13: Checking Function

    (II) Preset Tare Method 1： TARE/ 1） Press for three seconds, it enters to preset tare for three seconds, it enters to preset tare setting. TARE/ Preset-tare value setting: Press tare value setting: Press M-/HI to shift and key to shift and key PRINT/LO to modify the value (or via numeric keys).
  • Page 14 (II) Lower limit weight M-/HI 1) Long press key under the weighing mode. The number leftmost is blinking. TARE/ M-/HI PRINT/LO Press key to shift and key to modify the value (or via numeric keys) G N/SET 3) Press key to start or close weighing checking M+/SAVE ZERO/ESC...

  • Page 15: Basic Counting

    (II) mode without saving. Place the sample on the weighing pan. Place the sample on the weighing pan. HI indication appears, when the item on the weighing pan is HI indication appears, when the item on the weighing pan is greater than the upper limit greater than the upper limit OK indication appears, when the item on the weighing pan is between upper and lower limits.
  • Page 16 (II) ● Symbol ― ‖ points at ―SMPL‖ when calculated unit weight is lower than 4/5 of points at ―SMPL‖ when calculated unit weight is lower than 4/5 of points at ―SMPL‖ when calculated unit weight is lower than 4/5 of scale division or the quantity of sample is less than 10 division or the quantity of sample is less than 10 pieces.

  • Page 17: Initialization Of The Scale To Printer (Optional) Printer (Optional)

    (II) Accumulation display 1) Press key to displays th to displays the total accumulation data (weight, count and number of weighments) weighments) TARE/ 2) Press key to check the total events a n d the first 10 accumulation events in the first 10 accumulation events in detail.

  • Page 18: 7-7.The Control From Pc To Scale (Optional)

    (II) 7-7.The Control from PC to Scale (Optional) Install the three-in-one board with RTC, RS232 and RELAY. Connect RS232 and Step 1 choose the external equipment PC. Open the serial port to modify. Input the letters Z, T, C , R and P in the sending Step 2 window and press key Send again.
  • Page 19 (II) Re-weld EEPROM contact ERR4 EEPROM Chksum failure maintenance department. ERR5 Overload condition Remove the overload item ERR6 Exceeds the display range ----------------------------------------------- ERR8 Lower limit is higher than upper limit Reset the weight limit value. 0＜Tare value≤ full load ERR9 Exceed tare or pre-tare range Place the right test weights and the...
  • Page 20 (II) Prt-03 Prt-03 （CK printing in Chinese） (printing in English) 2010-11-12 2010-11-12 13:14:15 13:14:15 N.W.: N.W.: 0.500 kg 0.500 kg U.W.: U.W.: 0.0500 kg/pcs 0.0500 kg/pcs Total: Total: 10 pcs 10 pcs When the window of unit weight shows , the printing format of accumulation display is as follows 2010.01.01 06:31:54...
  • Page 21 (II) Appendix 2：Exporting data to PC in the form of EXCEL Introduction: Connect the scale with PC and set the parameter of external device as ―EXCEL‖ on the scale, then you could export the weighing data to PC in the form of EXCEL. With this function, you could record/accumulate/average/data statistical analysis the testing data, which we could call it as scale-computer data management function.
  • Page 22 (II) Test if Serial Keys works well. Open a Text Document, and press the Print buotton on the scale. The Serial Keys works well, if pc exports the weighing data to Text. Export weighing data to Excel 1. Open Excel. 2.
  • Page 23 (II) Troubleshooting Enable ―Fast User Switching‖ function will disable ―Use Serial Keys‖ in the computer. Note: Start->"Control Panel "->"User Account"-> ―Fast User Switching‖ function. The data export requires only ―GND+RX+TX‖ three lines, while some wire include nine lines (including usb 9-25pin adapter), which may cause abnormal function. Note: cut other useless line to check if these three lines work well.

This manual is also suitable for:

Jcl-1.5kJcl-3kJcl-6kJcl-7.5kJcl-30k
