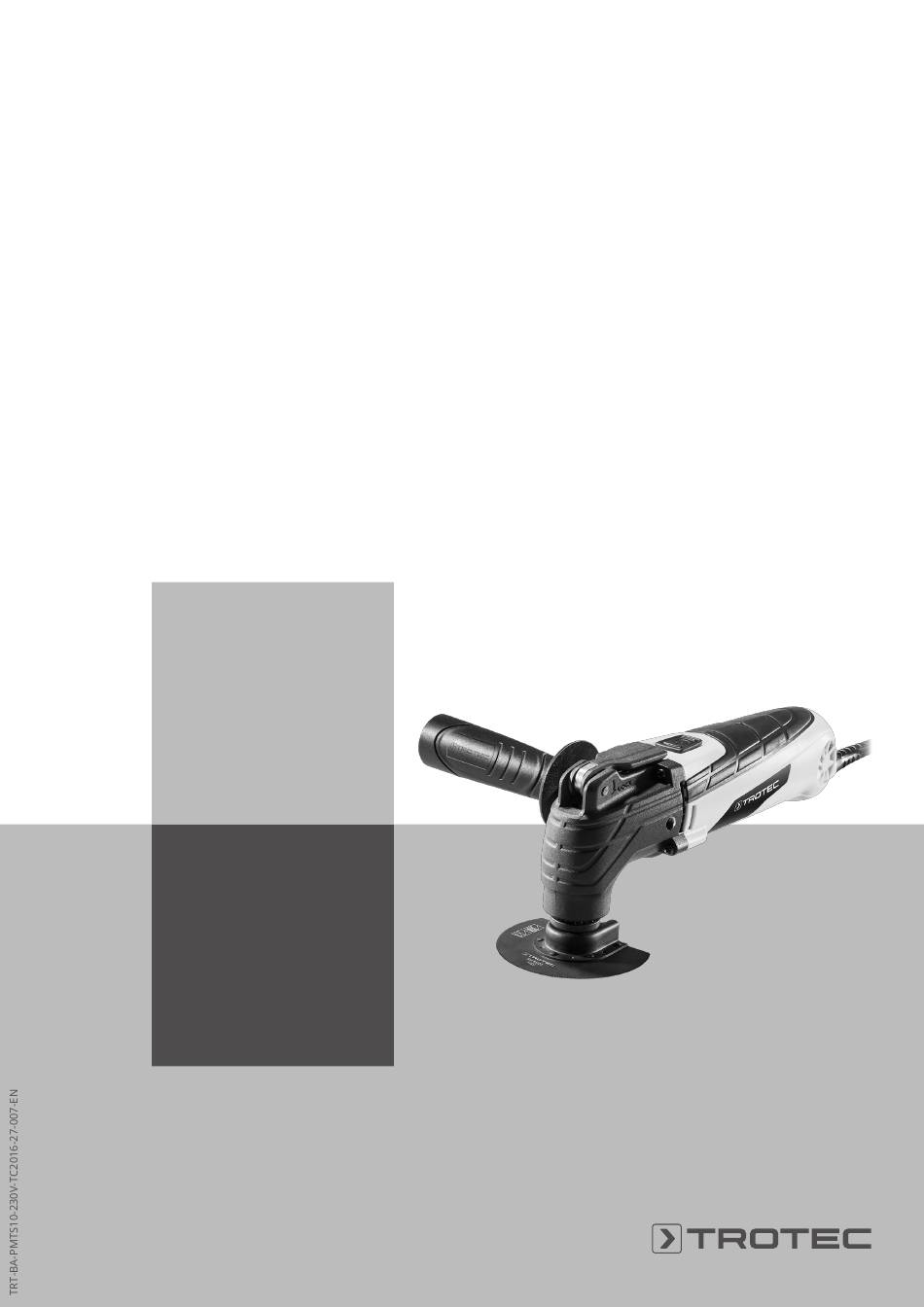

PMTS 10-230V
EN
ORIGINAL INSTRUCTIONS
300W MULTI-FUNCTION TOOL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMTS 10-230V and is the answer not in the manual?

Questions and answers

Related Manuals for Trotec PMTS 10-230V

Summary of Contents for Trotec PMTS 10-230V

  • Page 1 PMTS 10-230V ORIGINAL INSTRUCTIONS 300W MULTI-FUNCTION TOOL...

  • Page 2: Table Of Contents

    This signal word indicates a hazard with a low risk level which, if not avoided, can result in minor or moderate injury. Note This signal word indicates important information (e.g. material damage), but does not indicate hazards. 300W multi-function tool PMTS 10-230V...

  • Page 3: Safety

    • When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. 300W multi-function tool PMTS 10-230V...
  • Page 4 • Wait until the device has come to a standstill, before accessory may contact hidden wiring or its own cord. putting it down. Contacting a live wire might energize exposed metal parts of the device and lead to an electric shock. 300W multi-function tool PMTS 10-230V...
  • Page 5 Warning of electrical voltage We recommend using the power tool with original Trotec Before any work on the device, remove the mains plug accessories. from the mains socket!

  • Page 6: Information About The Device

    For yet more application possibilities you can of course combine your multi-function tool with further accessories, e.g. the Caution original Trotec accessory set for bathroom restoration. The tool release lever must be fully closed before switching the device on, for otherwise the lever could snap back upon switch-on.
  • Page 7 Scraping knife HCS SC 80/30 Wear hearing protection. for removing tile adhesive, silicone, mortar, paint Excessive noise can lead to hearing loss. residues ® Velcro -backed triangle sandpaper (12 x wood, 6 x metal) Dust extraction Delta sanding plate 300W multi-function tool PMTS 10-230V...

  • Page 8: Transport And Storage

    • Switch off the device. • Hold onto the mains plug while pulling the power cable out of the mains socket. • Allow the device to cool down. • Remove the tool from the tool holder. 300W multi-function tool PMTS 10-230V...
  • Page 9 5. Check whether the tool is properly locked in place. 2. Remove the tool from the tool holder (12), if any. Info The tools included in the scope of delivery are open- end tools. Customary closed-end tools may, however, be used. 300W multi-function tool PMTS 10-230V...
  • Page 10 1. Move the tool release lever (1) to the front position. 5. Fold back the tool release lever (1). 2. Detach the clamping screw from the tool holder (12) by turning it counter-clockwise. 6. Check whether the tool is properly locked in place. 300W multi-function tool PMTS 10-230V...

  • Page 11: Operation

    • Avoid the accumulation of dust at the workplace, always use a dust extraction system when grinding. • Use the coarse triangular sanding sheets (e.g. 60 grit) for rough grinding and the fine ones (e.g. 240 grit) for fine and finish grinding. 300W multi-function tool PMTS 10-230V...
  • Page 12 Operating mode: Scraping For removing material residues, e.g. tile adhesive when replacing damaged tiles, and for treating any remainders of mortar / concrete, tile / carpet adhesives, paint or silicone residues. • Use the scraping knife HCS SC 80/30. 300W multi-function tool PMTS 10-230V...
  • Page 13 ð The six holes should be aligned precisely. 4. Firmly press the sandpaper down. 5. To change or remove the sandpaper, pull it off from one corner towards the opposite side. 300W multi-function tool PMTS 10-230V...

  • Page 14: Available Accessories

    • Store the device according to the Storage chapter. The tool in accessory kit 2 Bathroom restoration has a closed end. To install the attachment pieces, the clamping screw needs to be detached as described in Tool change with a closed end. 300W multi-function tool PMTS 10-230V...

  • Page 15: Errors And Faults

    Please contact the customer service. If necessary, bring the repairs. Send the device to a specialist electrical company device to an authorized specialist electrical company or to or to Trotec to have the power cable and mains plug Trotec for repair. replaced.

  • Page 16: Maintenance

    • Regularly clean the delta sanding plate by tapping it out for a better adhesion of the sandpaper. • Use a wire brush to clean the RIFF tools (available accessories). • Keep the ventilation openings free from dust deposits to prevent overheating of the motor. 300W multi-function tool PMTS 10-230V...

  • Page 17: Declaration Of Conformity

    Declaration of conformity in accordance with the EC Machinery Directive 2006/42/EC, Annex II, Part 1, Section A Herewith, we – Trotec GmbH– declare that the machinery designated below was developed, constructed and produced in compliance with the requirements of the EC Machinery Directive in the version 2006/42/EC.
  • Page 18 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
