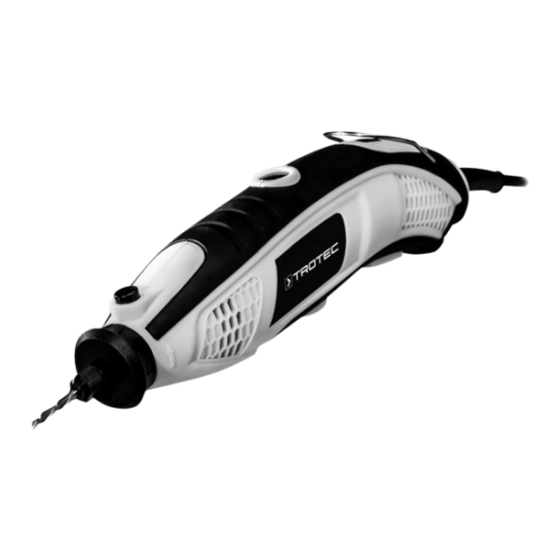

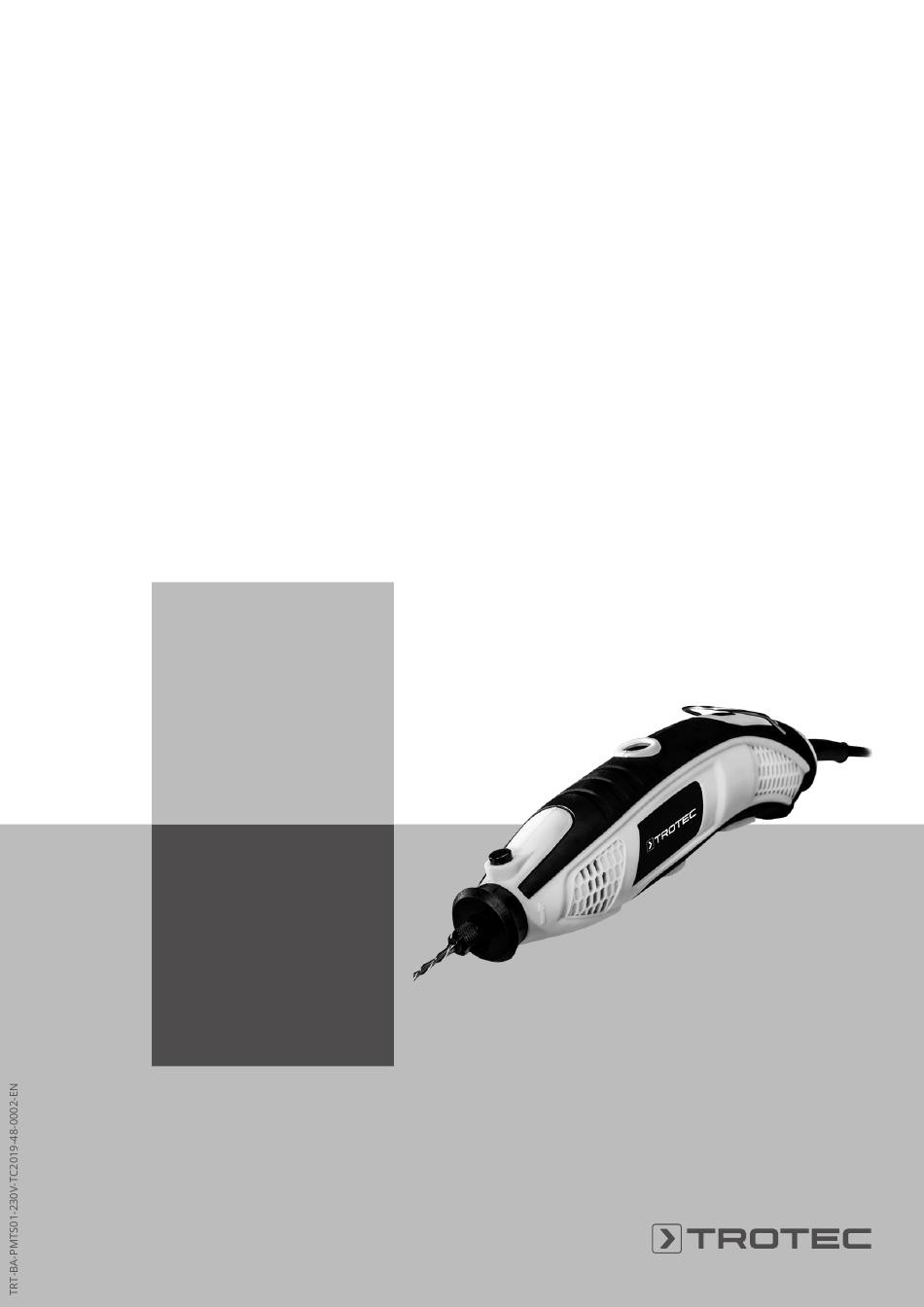

- Page 1 PMTS 01-230V ORIGINAL INSTRUCTIONS 170W MULTI-FUNCTION TOOL...
-
Page 2: Table Of Contents
The term power tool in the warnings refers to your mains- moderate injury. operated (corded) power tool or battery-operated (cordless) Note power tool. This signal word indicates important information (e.g. material damage), but does not indicate hazards. 170W multi-function tool PMTS 01-230V... -
Page 3: Safety
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. 170W multi-function tool PMTS 01-230V... - Page 4 Supports must be placed under the workpiece near the line hand. of cut and near the edge of the workpiece on both sides of the wheel. 170W multi-function tool PMTS 01-230V...
- Page 5 • For sanding small, dry areas • Engraving – Metal – Plastics – Glass – Ceramics – Wood – Leather • Polishing observing the technical data provided. We recommend using the power tool with original Trotec accessories. 170W multi-function tool PMTS 01-230V...
- Page 6 The harmful / toxic dusts produced during operation pose of risk to the health of the operator and persons in the vicinity. Wear eye protection and a dust mask! Warning Do not process materials containing asbestos. Asbestos is considered carcinogenic. 170W multi-function tool PMTS 01-230V...
-
Page 7: Information About The Device
Mandrel for cutting discs/abrasive wheels Mandrel for polishing attachments Wrench Polishing attachments Abrasive belts Positioning fixture with depth adjustment 0 - 20 mm Fixing screw for additional handle Tool holder with clamping nut Union nut Suspension bracket 170W multi-function tool PMTS 01-230V... - Page 8 This can reduce the vibration load over the entire work • 1 x Grinding stone period significantly. • 1 x Milling cutter (groove) • 1 x Milling cutter (ball head) • 1 x Stainless steel brush • 1 x Storage box • 1 x Transport case • 1 x Manual 170W multi-function tool PMTS 01-230V...
-
Page 9: Transport And Storage
When the device is not being used, observe the following storage conditions: • Dry and protected from frost and heat • Ambient temperature below 45 °C • Protected from dust and direct sunlight inside the transport case 170W multi-function tool PMTS 01-230V... - Page 10 Never actuate the spindle lock (3) button while the tool holder (38). is running! This may damage the tool. Info If you want to use the 2 mm twist drill bit or another tool with a 2 mm shank the collet chuck must be replaced. 170W multi-function tool PMTS 01-230V...
- Page 11 Before changing the tool, check whether the suitable collet chuck is mounted and replace it, if necessary. 6. Tighten the clamping nut (39) using the wrench (22) and let go of the spindle lock (3). 7. Make sure that the tool is attached securely. 170W multi-function tool PMTS 01-230V...
- Page 12 3. Unscrew the screw (40) from the mandrel by turning the screw in counter-clockwise direction. 4. Place the abrasive belt (24) onto the rubberized holder and tighten the screw (40) again in clockwise direction. 5. Release the button of the spindle lock (3) again. 170W multi-function tool PMTS 01-230V...
- Page 13 Furthermore, the positioning fixture enables working with a lateral limit stop. 1. Unscrew the union nut (28) on the tool by turning the nut in counter-clockwise direction. 170W multi-function tool PMTS 01-230V...
- Page 14 1. Turn the setting wheel (1) to the desired speed level. 3. Screw the positioning fixture (25) onto the tool by turning the fixture in clockwise direction. 4. Loosen the wing nut (42) on the positioning fixture (25) and set the desired depth adjustment on the scale. 170W multi-function tool PMTS 01-230V...
-
Page 15: Operation
• You'll obtain better results if the machining process not only involves one single work cycle, but if you move over the surface several times with the tool. 170W multi-function tool PMTS 01-230V... - Page 16 • When you polish the workpiece, guide the tool over the workpiece only applying light grinding pressure. • For polishing, buffing or cleaning with a wire brush, select the lowest speed level 1 to prevent the brush and material from damage. 170W multi-function tool PMTS 01-230V...
-
Page 17: Available Accessories
• use the polishing attachments (23) repairs. Send the device to a specialist electrical company Operating mode: Rust removal or to Trotec to have the power cable and mains plug replaced. For remove rust from damaged areas, for instance in the motor vehicle sector: •... -
Page 18: Maintenance
• Dry the device with a soft, lint-free cloth. • Remove any abrasive dust and, if applicable, wood chips from the tool holder. • Keep the ventilation openings free from dust deposits to prevent overheating of the motor. 170W multi-function tool PMTS 01-230V... - Page 19 2. Remove the cover (2) and the worn carbon brush (43) from 5. Repeat this process on the other side of the device. the device. 170W multi-function tool PMTS 01-230V...
-
Page 20: Disposal
EC Machinery Directive 2006/42/EC, Heinsberg, 20.08.2019 Annex II, Part 1, Section A Herewith, we – Trotec GmbH– declare that the machinery Detlef von der Lieck, Managing Director designated below was developed, constructed and produced in compliance with the requirements of the EC Machinery Directive in the version 2006/42/EC. - Page 21 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
