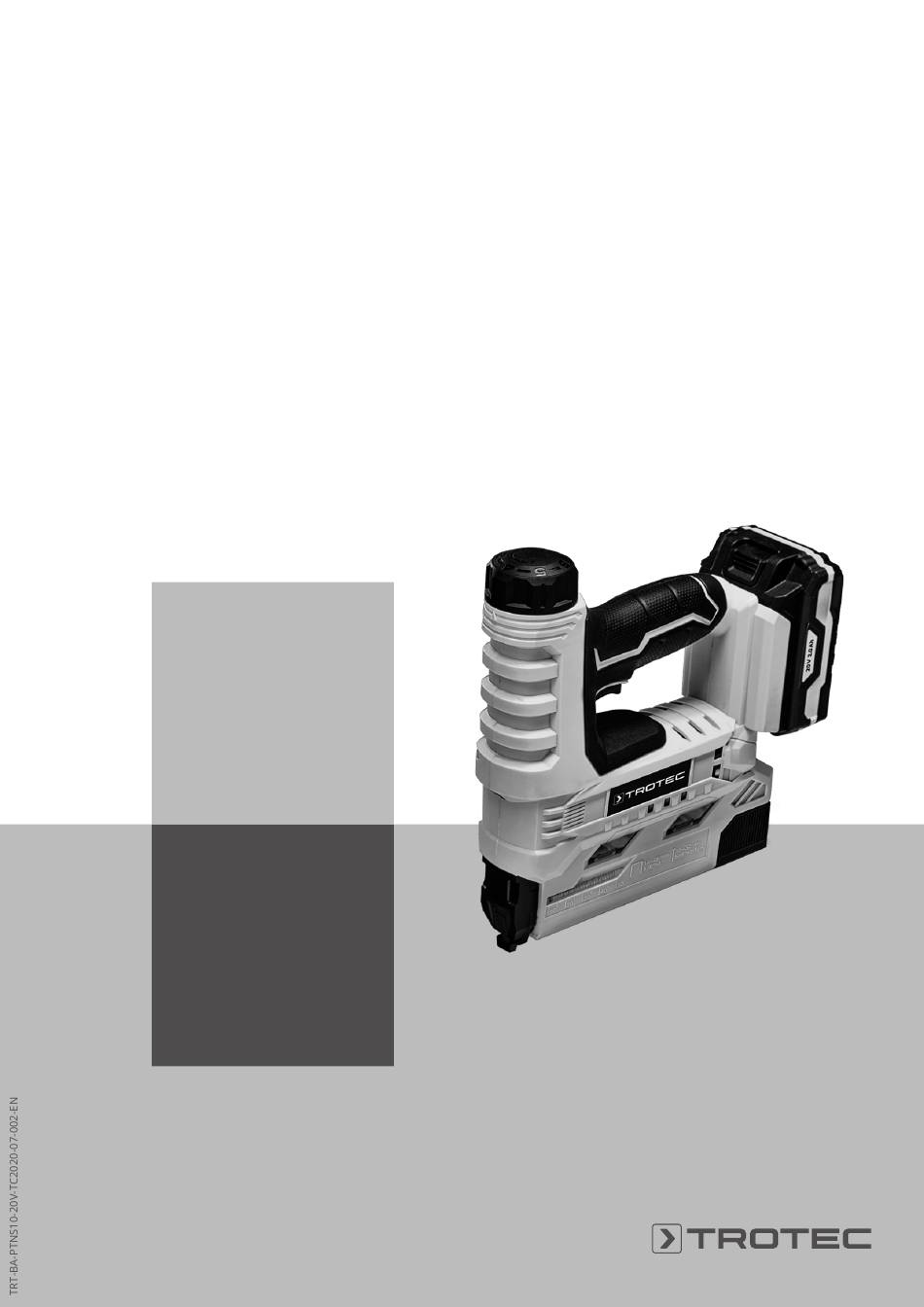

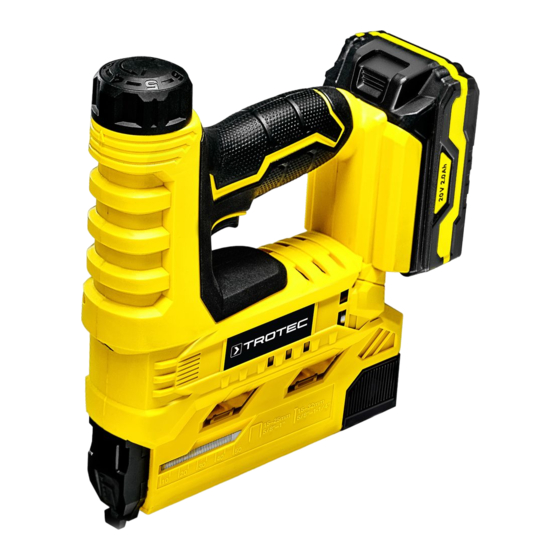

- Page 1 PTNS 10-20V ORIGINAL INSTRUCTIONS CORDLESS TACKER...
-
Page 2: Table Of Contents
Info • Keep children and bystanders away while operating a Information marked with this symbol helps you to carry power tool. Distractions can cause you to lose control. out your tasks quickly and safely. cordless tacker PTNS 10-20V... -
Page 3: Safety
Use of the power tool for operations different the power tool on. A wrench or a key left attached to a from those intended could result in a hazardous situation. rotating part of the power tool may result in personal injury. cordless tacker PTNS 10-20V... - Page 4 We recommend using the power tool with original Trotec accessories. cordless tacker PTNS 10-20V...
- Page 5 Warning of electrical voltage There is a risk of a short-circuit due to liquids penetrating the housing! Do not immerse the device and the accessories in water. Make sure that no water or other liquids can enter the housing. cordless tacker PTNS 10-20V...
-
Page 6: Information About The Device
Tacker guide nose / staple ejection LED work lamp Quick charger Red battery LED (battery charging) Battery Staples Wire nails Battery level indication Release button Green battery LED (quick charger ready for operation) Button for LED work lamp Impact force regulator cordless tacker PTNS 10-20V... - Page 7 Vibration emission value a 3.65 m/s² Uncertainty K 1.5 m/s² Sound values according to EN 60745 Sound pressure level L 84.1 dB(A) Sound power L 95.1 dB(A) Uncertainty K 3 dB(A) Wear hearing protection. Excessive noise can lead to hearing loss. cordless tacker PTNS 10-20V...
-
Page 8: Transport And Storage
• If transport is carried out by third parties (e.g. air transport or forwarding company), special requirements as to packaging and labelling must be observed. This includes consulting a dangerous goods specialist when preparing the package. – Only ship batteries if their housing is undamaged. cordless tacker PTNS 10-20V... - Page 9 2. If required, charge the battery (9) as described in the 5. Take the battery (9) out of the quick charger (7) by section Charging the battery. pressing and holding the release button (13) and pulling the battery (9) off the quick charger (7). cordless tacker PTNS 10-20V...
- Page 10 Info At the magazine filling level indicator you can check whether any staples or wire nails are left in the magazine. Info Do not open or close the magazine by force (e.g. for filling). cordless tacker PTNS 10-20V...
- Page 11 You can change the impact force which you have preselected at any time. 1. Turn the regulator (16) to the desired stage. 6. Slide the magazine slider (4) back down alongside the magazine (19) until it clicks into place. cordless tacker PTNS 10-20V...
-
Page 12: Operation
Designation Article number Spare battery Multiflex 20-2.0 DC 6.200.000.303 Spare battery Multiflex 20-4.0 DC 6.200.000.320 PT staple set (U20 type 55/15-20) 6.245.001.108 PT staple set (U25 type 55/25) 6.245.001.109 PT wire nails set (T15 type 47/15) 6.245.001.122 cordless tacker PTNS 10-20V... -
Page 13: Errors And Faults
• Keep the venting slots clear to prevent the motor from • Check the quick charger for damage. If the quick charger overheating. is damaged, stop using it. Contact the Trotec customer service. • Wait for at least 10 minutes before switching the device back on. -
Page 14: Maintenance
• Remove the battery from the device. administration. For further return options provided by us please refer to our website https://de.trotec.com/shop/. Warning of electrical voltage The separate collection of waste electrical and electronic... -
Page 15: Declaration Of Conformity
Declaration of conformity in accordance with the EC Machinery Directive 2006/42/EC, Annex II, Part 1, Section A Herewith, we – Trotec GmbH– declare that the machinery designated below was developed, constructed and produced in compliance with the requirements of the EC Machinery Directive in the version 2006/42/EC. - Page 16 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
