- Page 1 PMTS 10-12V ORIGINAL INSTRUCTIONS CORDLESS MULTI-FUNCTION TOOL...
-
Page 2: Table Of Contents
This signal word indicates a hazard with a low risk level which, if not avoided, can result in minor or moderate injury. Note This signal word indicates important information (e.g. material damage), but does not indicate hazards. cordless multi-function tool PMTS 10-12V... -
Page 3: Safety
Damaged or entangled cords increase the risk of electric shock. • When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. cordless multi-function tool PMTS 10-12V... - Page 4 • Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. cordless multi-function tool PMTS 10-12V...
- Page 5 • Keep your hands out of the sawing area. Do not reach We recommend using the power tool with original Trotec underneath the workpiece. Risk of injury upon contact accessories.
- Page 6 The harmful / toxic dusts produced during operation pose of risk to the health of the operator and persons in the vicinity. Wear eye protection and a dust mask! Warning Do not process materials containing asbestos. Asbestos is considered carcinogenic. cordless multi-function tool PMTS 10-12V...
-
Page 7: Information About The Device

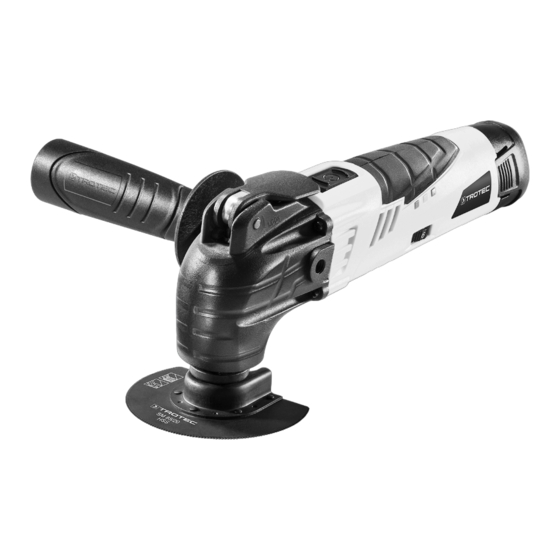

Green battery LED (quick charger ready for operation) For yet more application possibilities you can of course combine your multi-function tool with further accessories, e.g. the Segment saw blade HSS SM 85/20 original Trotec accessory set for bathroom restoration. for wood and metal Plunge-cut saw blade BIM CS 75/25 Device depiction for wood, plastic, GRP, light metal and non-ferrous metal Plunge-cut saw blade HCS CS 95/40... - Page 8 Sound power level 84.5 dB(A) Uncertainty K 3 dB(A) Vibration information according to EN 60745 Vibration emission value ah 9.42 m/s² Uncertainty K 1.5 m/s² Wear hearing protection. Excessive noise can lead to hearing loss. cordless multi-function tool PMTS 10-12V...
-
Page 9: Transport And Storage
– Only ship batteries if their housing is undamaged. – Mask open terminals with tape and pack the battery in a way that it cannot move inside the packaging. – Please also observe any other national regulations. cordless multi-function tool PMTS 10-12V... -
Page 10: Start-Up
ð The battery (16) and the quick charger (6) may have • Dispose of the packaging material according to the become warm during charging. national regulations. Allow the battery (16) to cool down to room temperature. 5. Remove the battery (16) from the quick charger (6). cordless multi-function tool PMTS 10-12V... - Page 11 – Recharge the battery. 1. Switch the device on by pushing the on / off switch (2) forward so that the I becomes visible. ð You can read the battery status from the battery level indication (3). cordless multi-function tool PMTS 10-12V...
- Page 12 The insertion tools can be installed in the tool holder (19) in Before any work on the device, remove the battery! variable working directions. Wear protective gloves Wear appropriate protective gloves when inserting or exchanging tools. 1. Move the tool release lever (1) to the front position. cordless multi-function tool PMTS 10-12V...
- Page 13 3. Insert the required tool in the tool holder (19). 4. Affix the clamping screw to the tool holder (19) by turning it clockwise. 5. Fold back the tool release lever (1). 6. Check whether the tool is properly locked in place. cordless multi-function tool PMTS 10-12V...
-
Page 14: Operation
• Avoid the accumulation of dust at the workplace, always use a dust extraction system when grinding. • Use the coarse triangular sanding sheets (e.g. 60 grit) for rough grinding and the fine ones (e.g. 240 grit) for fine and finish grinding. cordless multi-function tool PMTS 10-12V... - Page 15 • Use the scraping knife HCS SC 80/30. 4. Firmly press the sandpaper down. 5. To change or remove the sandpaper, pull it off from one corner towards the opposite side. cordless multi-function tool PMTS 10-12V...
- Page 16 Caution Use a special vacuum cleaner to suck off harmful or toxic materials. 1. Assemble the dust extraction system. 2. Fasten the dust extraction system to the device before you attach the delta sanding plate. cordless multi-function tool PMTS 10-12V...
-
Page 17: Available Accessories
6 sheets each of grit 60/80/100/120/240 The tool in accessory kit 2 Bathroom restoration has a closed end. To install the attachment pieces, the clamping screw needs to be detached as described in Tool change with a closed end. cordless multi-function tool PMTS 10-12V... -
Page 18: Errors And Faults
• Check the quick charger for damages. Should the quick • Select a low oscillation rate by turn down the setting wheel charger be damaged, stop using it. Contact the Trotec for oscillation rate selection (4). customer service. • Check whether the tool is suitable for the tasks to be •... -
Page 19: Maintenance
• Use a wire brush to clean the RIFF tools (available accessories). • Keep the connecting terminals on the device and charger clean. • Keep the ventilation openings free from dust deposits to prevent overheating of the motor. cordless multi-function tool PMTS 10-12V... -
Page 20: Declaration Of Conformity
Declaration of conformity In accordance with the EC Machinery Directive 2006/42/EC, Annex II, part 1, Section A Herewith, we – Trotec GmbH & Co. KG – declare that the machinery designated below was developed, constructed and produced in compliance with the requirements of the EC Machinery Directive in the version 2006/42/EC. - Page 22 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
